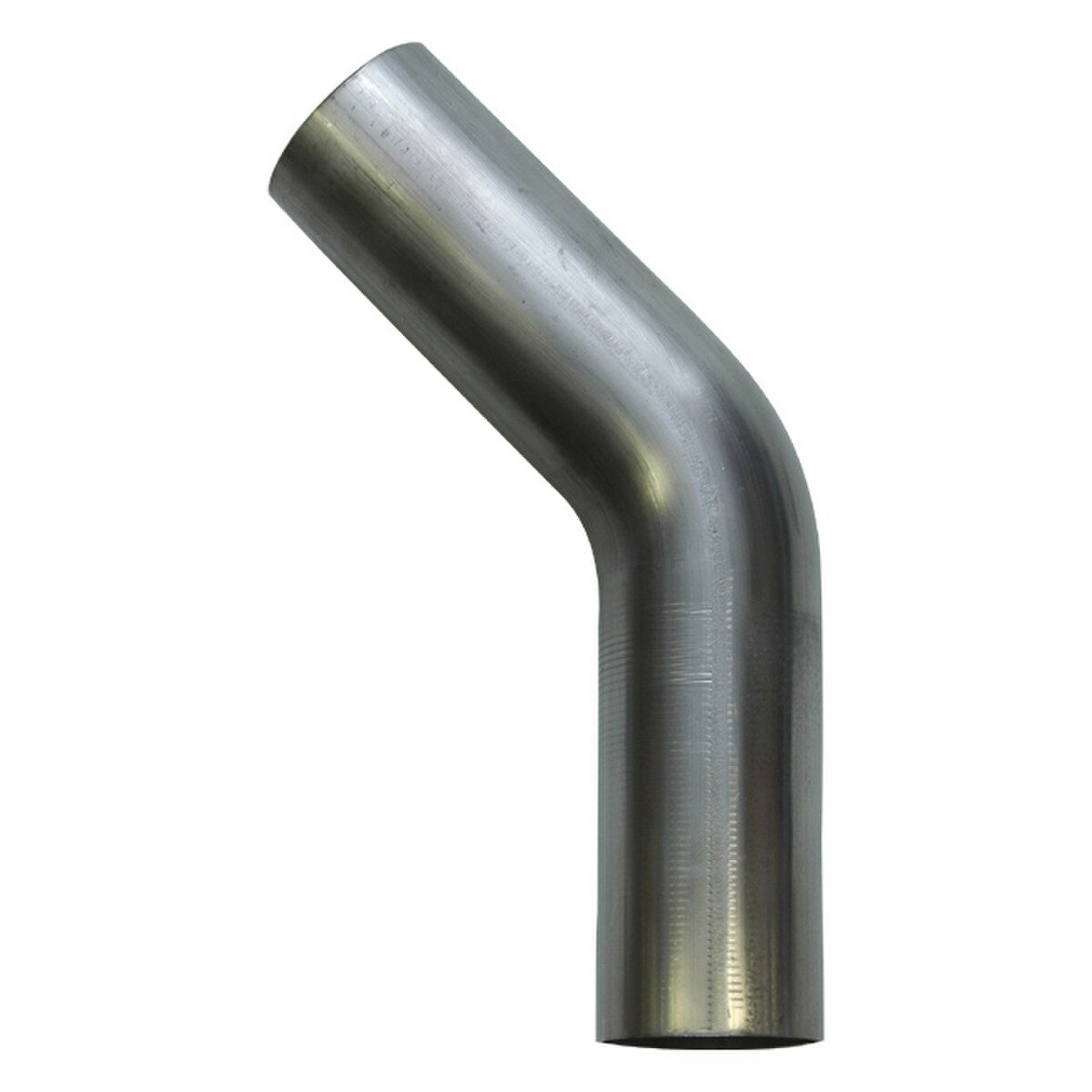

Vibrant 45 Degree Mandrel Bends, 304 Stainless Steel
Vibrant 45 degree mandrel bends are made from 304 Stainless Steel Tubing. Use these mandrel bends for fabricating your custom high performance intake and exhaust systems. These high quality Stainless Steel mandrel bends are smooth and true throughout.
 | ||||
| VMS Part # | MFG Part # | Tube OD | Legs (A) | Bend Radius (R) |
|---|---|---|---|---|
| VIB0450416-100200-5X5 | 13088 | 1.000" (25.4mm) | 5.00" (127.0mm) | 2.000" (50.8mm) |
| VIB0450416-125200-5X5 | 13089 | 1.250" (31.8mm) | 5.00" (127.0mm) | 2.000" (50.8mm) |
| VIB0450416-138238-5X5 | 13091 | 1.375" (34.9mm) | 5.00" (127.0mm) | 2.375" (60.3mm) |
| VIB0450416-150150-6X6 | 13092 | 1.500" (38.1mm) | 6.00" (152.4mm) | 1.500" (38.1mm) |
| VIB0450416-175175-6X6 | 13094 | 1.750" (44.5mm) | 6.00" (152.4mm) | 1.875" (47.6mm) |
| VIB0450416-175263-6X6 | 13108 | 1.750" (44.5mm) | 6.00" (152.4mm) | 2.625" (66.7mm) |
| VIB0450416-188200-6X6 | 13095 | 1.875" (47.6mm) | 6.00" (152.4mm) | 2.000" (50.8mm) |
| VIB0450416-200200-6X6 | 13096 | 2.000" (50.8mm) | 6.00" (152.4mm) | 2.000" (50.8mm) |
| VIB0450416-213313-6X6 | 13097 | 2.125" (54.0mm) | 6.00" (152.4mm) | 3.125" (79.4mm) |
| VIB0450416-225338-6X6 | 13098 | 2.250" (57.2mm) | 6.00" (152.4mm) | 3.375" (85.7mm) |
| VIB0450416-238350-6X6 | 13099 | 2.375" (60.3mm) | 6.00" (152.4mm) | 3.500" (88.9mm) |
| VIB0450416-250350-6X6 | 13100 | 2.500" (63.5mm) | 6.00" (152.4mm) | 3.500" (88.9mm) |
| VIB0450416-275413-6X6 | 13101 | 2.750" (69.9mm) | 6.00" (152.4mm) | 4.125" (104.8mm) |
| VIB0450416-300500-6X6 | 13102 | 3.000" (76.2mm) | 6.00" (152.4mm) | 5.000" (127.0mm) |
| VIB0450416-350550-6X6 | 13103 | 3.500" (88.9mm) | 6.00" (152.4mm) | 5.500" (139.7mm) |
| VIB0450416-400600-6X6 | 13104 | 4.000" (101.6mm) | 6.00" (152.4mm) | 6.000" (152.4mm) |
| VIB0450416-500750-8X8 | 13105 | 5.000" (127.0mm) | 8.00" (203.2mm) | 7.500" (190.5mm) |
