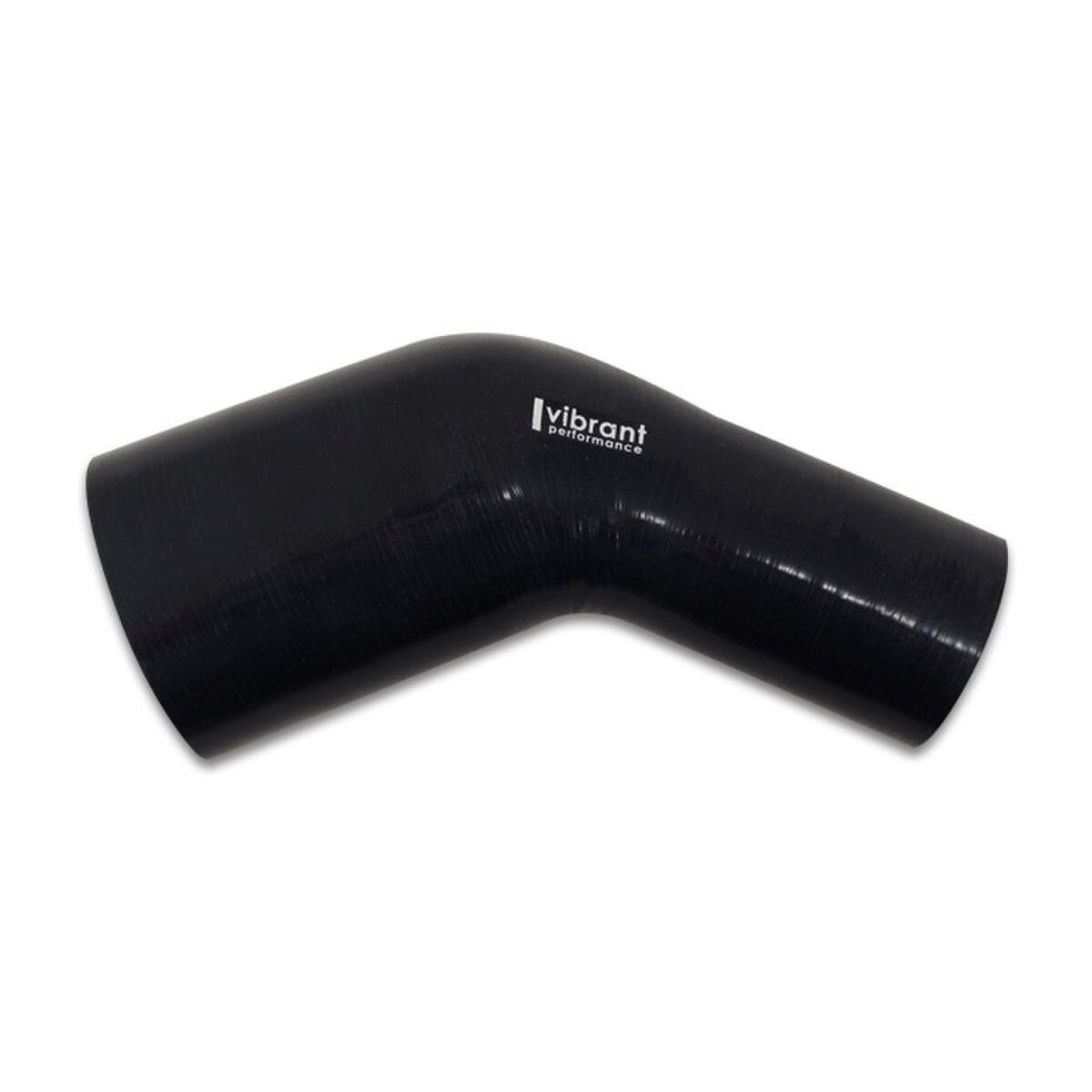

Vibrant 45 Degree Silicone Transitions, 4 Ply Aramid
Vibrant Performance makes it easy to complete all of your custom air induction projects with their complete lineup of top quality reinforced silicone connectors. These Vibrant silicone 45 degree reducing bends feature hand wrapped 4-ply aramid reinforced construction, which allows these couplers to withstand high temperatures and high boost conditions without swelling or bursting like inferior rubber connectors. Vibrant's 4 ply aramid 45 degree transition elbows feature 4" legs and are rated for temperatures from -65F up to 500F.
 | |||||||
| VMS Part # | MFG Part # | Size 1 (ID1) | Size 2 (ID2) | Radius (CLR) | Legs (A) | Wall Thick. (± 0.02") | Burst Pressure |
|---|---|---|---|---|---|---|---|
| VIBR454A-175200-4-BLK | 19755 | 1.75" (44.5mm) | 2.00" (50.8mm) | 2.00" (50.8mm) | 4.00" (101.6mm) | 0.20" (5.08mm) | 67 psi |
| VIBR454A-200225-4-BLK | 19756 | 2.00" (50.8mm) | 2.25" (57.2mm) | 2.25" (57.2mm) | 4.00" (101.6mm) | 0.20" (5.08mm) | 57 psi |
| VIBR454A-200250-4-BLK | 19757 | 2.00" (50.8mm) | 2.50" (63.5mm) | 2.50" (63.5mm) | 4.00" (101.6mm) | 0.20" (5.08mm) | 50 psi |
| VIBR454A-225250-4-BLK | 19758 | 2.25" (57.2mm) | 2.50" (63.5mm) | 2.50" (63.5mm) | 4.00" (101.6mm) | 0.20" (5.08mm) | 50 psi |
| VIBR454A-225300-4-BLK | 19760 | 2.25" (57.2mm) | 3.00" (76.2mm) | 3.00" (76.2mm) | 4.00" (101.6mm) | 0.20" (5.08mm) | 35 psi |
| VIBR454A-225275-4-BLK | 19761 | 2.25" (57.2mm) | 2.75" (69.9mm) | 2.75" (69.9mm) | 4.00" (101.6mm) | 0.20" (5.08mm) | 43 psi |
| VIBR454A-250300-4-BLK | 19762 | 2.50" (63.5mm) | 3.00" (76.2mm) | 3.00" (76.2mm) | 4.00" (101.6mm) | 0.20" (5.08mm) | 35 psi |
| VIBR454A-250350-4-BLK | 19764 | 2.50" (63.5mm) | 3.50" (88.9mm) | 3.50" (88.9mm) | 4.00" (101.6mm) | 0.20" (5.08mm) | 25 psi |
| VIBR454A-275300-4-BLK | 19766 | 2.75" (69.9mm) | 3.00" (76.2mm) | 3.00" (76.2mm) | 4.00" (101.6mm) | 0.20" (5.08mm) | 35 psi |
| VIBR454A-300325-4-BLK | 19768 | 2.75" (69.9mm) | 3.25" (82.6mm) | 3.25" (82.6mm) | 4.00" (101.6mm) | 0.20" (5.08mm) | 28 psi |
| VIBR454A-300350-4-BLK | 19769 | 2.75" (69.9mm) | 3.50" (88.9mm) | 3.50" (88.9mm) | 4.00" (101.6mm) | 0.20" (5.08mm) | 25 psi |
| VIBR454A-300400-4-BLK | 19770 | 2.75" (69.9mm) | 4.00" (101.6mm) | 4.00" (101.6mm) | 4.00" (101.6mm) | 0.20" (5.08mm) | 18 psi |
| VIBR454A-325350-4-BLK | 19771 | 3.25" (82.6mm) | 3.50" (88.9mm) | 3.50" (88.9mm) | 4.00" (101.6mm) | 0.20" (5.08mm) | 25 psi |
| VIBR454A-350400-4-BLK | 19773 | 3.50" (88.9mm) | 4.00" (101.6mm) | 4.00" (101.6mm) | 4.00" (101.6mm) | 0.20" (5.08mm) | 18 psi |
