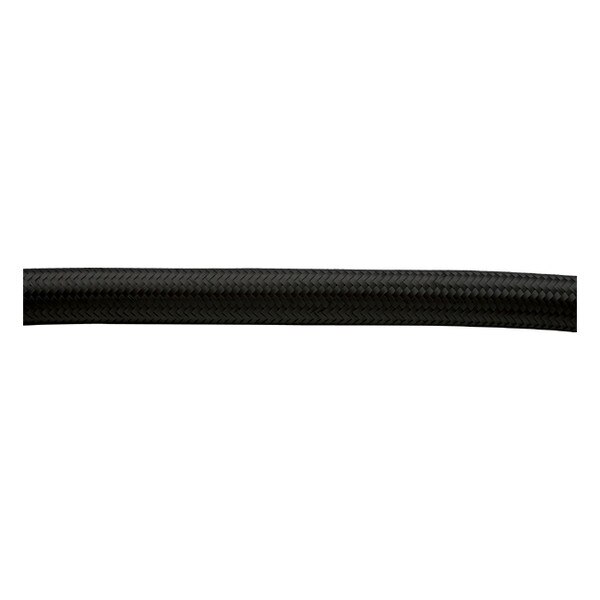

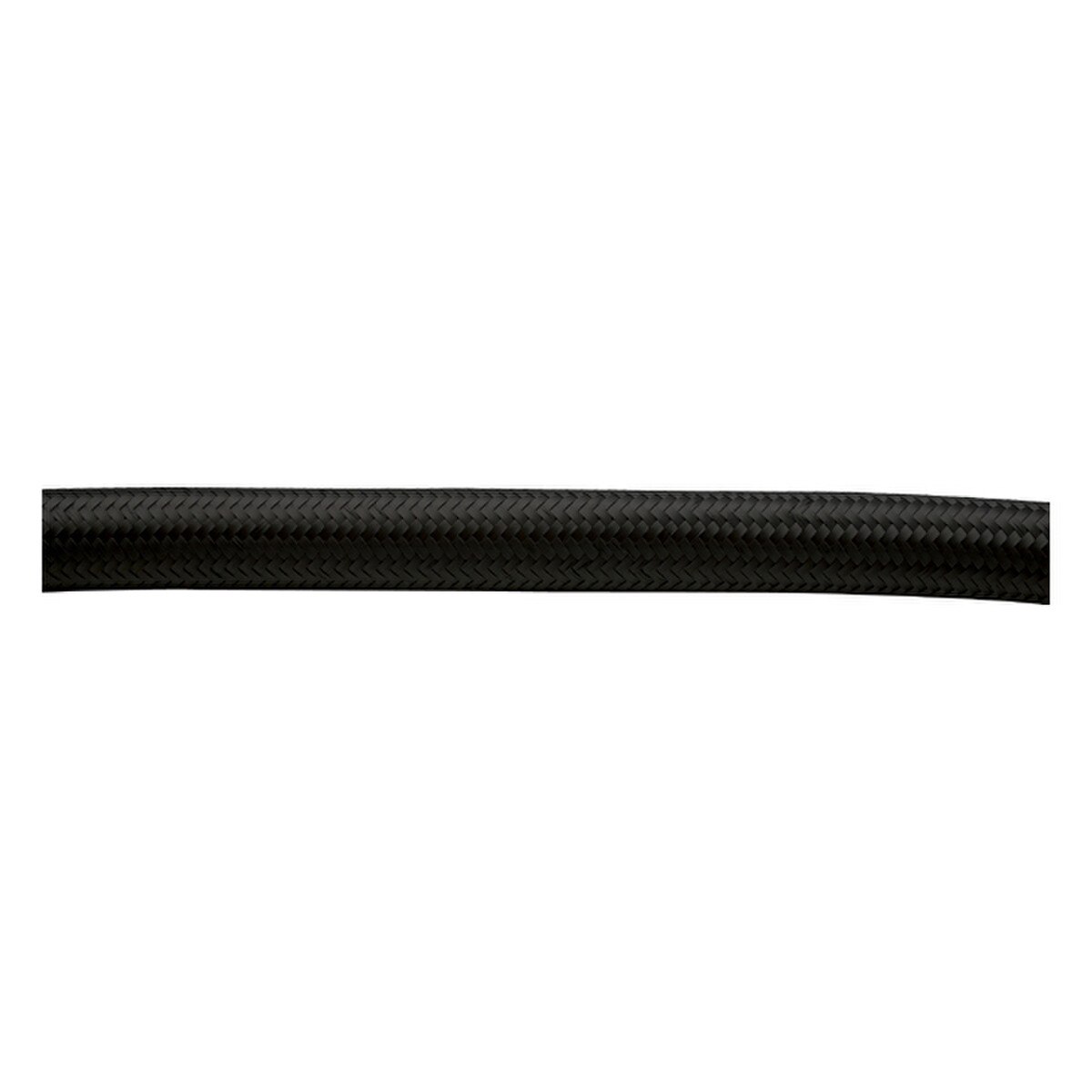

Vibrant AN Flex Hose - Black Nylon
Vibrant Performance Black Nylon Braided Hose features a synthetic rubber liner that is suitable for oil, water, fuel or coolant use. The Nylon outer braid protects the AN hose from minor abrasions while keeping the hose lightweight and durable. Use this braided flex hose with any of Vibrant's AN Hose Ends to make your own custom water lines, fuel lines or oil lines. Capable of withstanding temperatures from -40 Deg F up to 300 Deg F with a 500 psi operating pressure (350 Deg F for -16 AN hose). Available in 2 foot, 5 foot, 10 foot and 20 foot lengths.
| VMS Part # | MFG Part # | AN Size | Hose ID | Length | Operating Pressure | Temp. Range |
|---|---|---|---|---|---|---|
| VIBHSEBN-04-002 | 11954 | -4 | 0.22" (5.6mm) | 2' (0.61m) | 500 psi | -40°F - 300°F |
| VIBHSEBN-04-005 | 11984 | -4 | 0.22" (5.6mm) | 5' (1.52m) | 500 psi | -40°F - 300°F |
| VIBHSEBN-04-010 | 11964 | -4 | 0.22" (5.6mm) | 10' (3.05m) | 500 psi | -40°F - 300°F |
| VIBHSEBN-04-020 | 11974 | -4 | 0.22" (5.6mm) | 20' (6.10m) | 500 psi | -40°F - 300°F |
| VIBHSEBN-06-002 | 11956 | -6 | 0.34" (8.6mm) | 2' (0.61m) | 500 psi | -40°F - 300°F |
| VIBHSEBN-06-005 | 11986 | -6 | 0.34" (8.6mm) | 5' (1.52m) | 500 psi | -40°F - 300°F |
| VIBHSEBN-06-010 | 11966 | -6 | 0.34" (8.6mm) | 10' (3.05m) | 500 psi | -40°F - 300°F |
| VIBHSEBN-06-020 | 11976 | -6 | 0.34" (8.6mm) | 20' (6.10m) | 500 psi | -40°F - 300°F |
| VIBHSEBN-08-002 | 11958 | -8 | 0.44" (11.2mm) | 2' (0.61m) | 500 psi | -40°F - 300°F |
| VIBHSEBN-08-005 | 11988 | -8 | 0.44" (11.2mm) | 5' (1.52m) | 500 psi | -40°F - 300°F |
| VIBHSEBN-08-010 | 11968 | -8 | 0.44" (11.2mm) | 10' (3.05m) | 500 psi | -40°F - 300°F |
| VIBHSEBN-08-020 | 19978 | -8 | 0.44" (11.2mm) | 20' (6.10m) | 500 psi | -40°F - 300°F |
| VIBHSEBN-10-002 | 11960 | -10 | 0.56" (14.2mm) | 2' (0.61m) | 500 psi | -40°F - 300°F |
| VIBHSEBN-10-005 | 11990 | -10 | 0.56" (14.2mm) | 5' (1.52m) | 500 psi | -40°F - 300°F |
| VIBHSEBN-10-010 | 11970 | -10 | 0.56" (14.2mm) | 10' (3.05m) | 500 psi | -40°F - 300°F |
| VIBHSEBN-10-020 | 11980 | -10 | 0.56" (14.2mm) | 20' (6.10m) | 500 psi | -40°F - 300°F |
| VIBHSEBN-12-002 | 11962 | -12 | 0.68" (17.3mm) | 2' (0.61m) | 500 psi | -40°F - 300°F |
| VIBHSEBN-12-005 | 11992 | -12 | 0.68" (17.3mm) | 5' (1.52m) | 500 psi | -40°F - 300°F |
| VIBHSEBN-12-010 | 11972 | -12 | 0.68" (17.3mm) | 10' (3.05m) | 500 psi | -40°F - 300°F |
| VIBHSEBN-12-020 | 11982 | -12 | 0.68" (17.3mm) | 20' (6.10m) | 500 psi | -40°F - 300°F |
| VIBHSEBN-16-002 | 11963 | -16 | 0.89" (22.6mm) | 2' (0.61m) | 350 psi | -40°F - 300°F |
| VIBHSEBN-16-005 | 11993 | -16 | 0.89" (22.6mm) | 5' (1.52m) | 350 psi | -40°F - 300°F |
| VIBHSEBN-16-010 | 11973 | -16 | 0.89" (22.6mm) | 10' (3.05m) | 350 psi | -40°F - 300°F |
| VIBHSEBN-16-020 | 11983 | -16 | 0.89" (22.6mm) | 20' (6.10m) | 350 psi | -40°F - 300°F |
| VIBHSEBN-20-002 | 11965 | -20 | 1.125" (28.6mm) | 2' (0.61m) | 350 psi | -40°F - 300°F |
| VIBHSEBN-20-005 | 11995 | -20 | 1.125" (28.6mm) | 5' (1.52m) | 350 psi | -40°F - 300°F |
| VIBHSEBN-20-010 | 11975 | -20 | 1.125" (28.6mm) | 10' (3.05m) | 350 psi | -40°F - 300°F |
| VIBHSEBN-20-020 | 11985 | -20 | 1.125" (28.6mm) | 20' (6.10m) | 350 psi | -40°F - 300°F |
