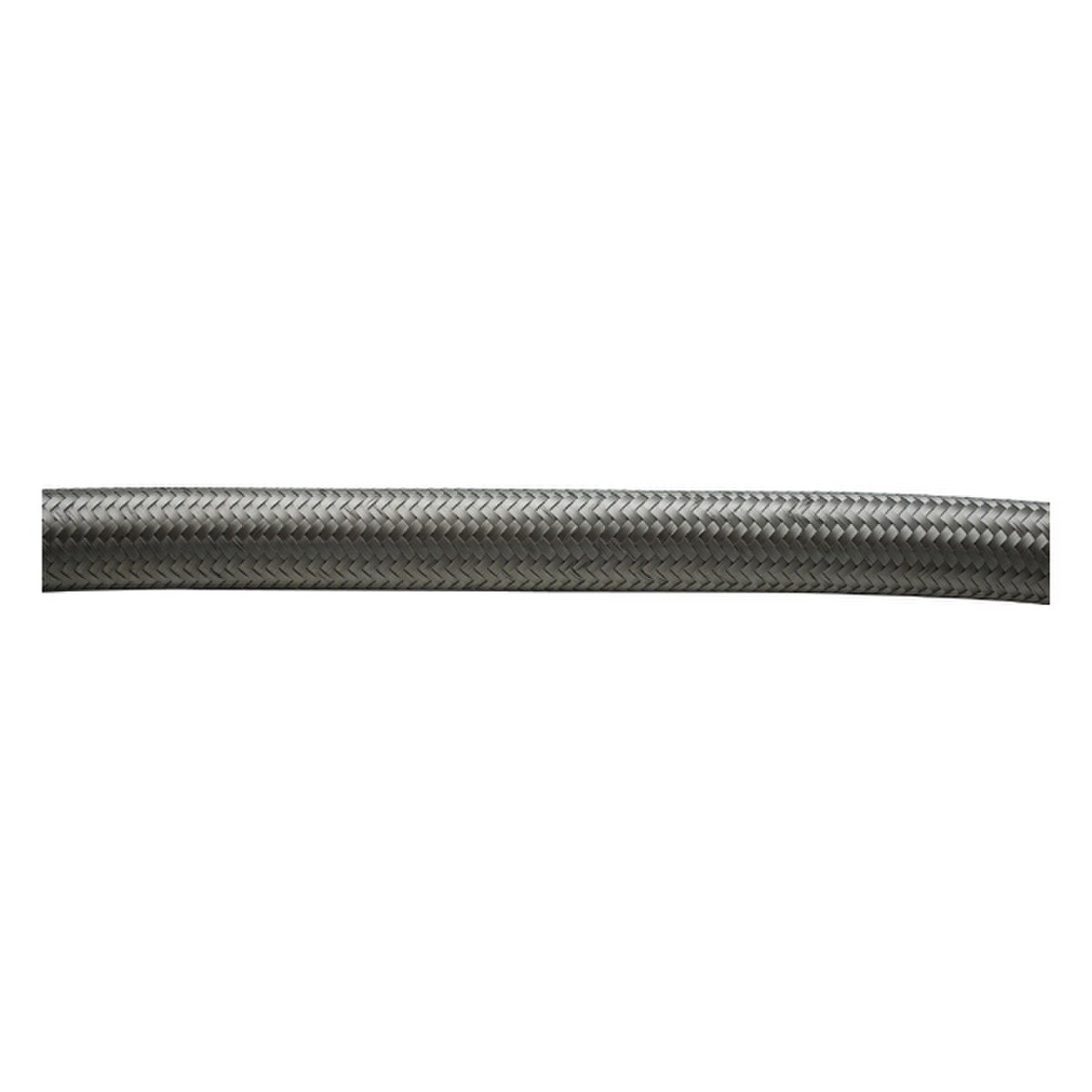

Vibrant AN Flex Hose - Stainless Steel Braided
Vibrant Performance's high quality AN fittings and adapters deliver the type of quality, reliability and ease of assembly that is demanded by motorsport professionals. These lightweight T6061 AN fittings are suitable for a wide variety of applications. Work great with any manufacturers hose ends.
| VMS Part # | MFG Part # | AN Size | Hose ID | Length | Operating Pressure | Temp. Range |
|---|---|---|---|---|---|---|
| VIBHSESS-04-002 | 11904 | -4 | 0.22" (5.6mm) | 2' | 1500 psi | -40°F - 300°F |
| VIBHSESS-04-005 | 11934 | -4 | 0.22" (5.6mm) | 2' | 1500 psi | -40°F - 300°F |
| VIBHSESS-04-010 | 11914 | -4 | 0.22" (5.6mm) | 10' | 1500 psi | -40°F - 300°F |
| VIBHSESS-04-020 | 11924 | -4 | 0.22" (5.6mm) | 20' | 1500 psi | -40°F - 300°F |
| VIBHSESS-06-002 | 11906 | -6 | 0.34" (8.6mm) | 2' | 1500 psi | -40°F - 300°F |
| VIBHSESS-06-005 | 11936 | -6 | 0.34" (8.6mm) | 5' | 1500 psi | -40°F - 300°F |
| VIBHSESS-06-010 | 11916 | -6 | 0.34" (8.6mm) | 10' | 1500 psi | -40°F - 300°F |
| VIBHSESS-06-020 | 11926 | -6 | 0.34" (8.6mm) | 20' | 1500 psi | -40°F - 300°F |
| VIBHSESS-08-002 | 11908 | -8 | 0.44" (11.2mm) | 2' | 1250 psi | -40°F - 300°F |
| VIBHSESS-08-005 | 11938 | -8 | 0.44" (11.2mm) | 5' | 1250 psi | -40°F - 300°F |
| VIBHSESS-08-010 | 11918 | -8 | 0.44" (11.2mm) | 10' | 1250 psi | -40°F - 300°F |
| VIBHSESS-08-020 | 11928 | -8 | 0.44" (11.2mm) | 20' | 1250 psi | -40°F - 300°F |
| VIBHSESS-10-002 | 11910 | -10 | 0.56" (14.2mm) | 2' | 1250 psi | -40°F - 300°F |
| VIBHSESS-10-005 | 11940 | -10 | 0.56" (14.2mm) | 5' | 1250 psi | -40°F - 300°F |
| VIBHSESS-10-010 | 11920 | -10 | 0.56" (14.2mm) | 10' | 1250 psi | -40°F - 300°F |
| VIBHSESS-10-020 | 11930 | -10 | 0.56" (14.2mm) | 20' | 1250 psi | -40°F - 300°F |
| VIBHSESS-12-002 | 11912 | -12 | 0.68" (17.3mm) | 2' | 1250 psi | -40°F - 300°F |
| VIBHSESS-12-005 | 11942 | -12 | 0.68" (17.3mm) | 5' | 1250 psi | -40°F - 300°F |
| VIBHSESS-12-010 | 11922 | -12 | 0.68" (17.3mm) | 10' | 1250 psi | -40°F - 300°F |
| VIBHSESS-12-020 | 11932 | -12 | 0.68" (17.3mm) | 20' | 1250 psi | -40°F - 300°F |
| VIBHSESS-16-002 | 11913 | -16 | 0.89" (22.6mm) | 2' | 750 psi | -40°F - 300°F |
| VIBHSESS-16-005 | 11943 | -16 | 0.89" (22.6mm) | 5' | 750 psi | -40°F - 300°F |
| VIBHSESS-16-010 | 11923 | -16 | 0.89" (22.6mm) | 10' | 750 psi | -40°F - 300°F |
| VIBHSESS-16-020 | 11933 | -16 | 0.89" (22.6mm) | 20' | 750 psi | -40°F - 300°F |
| VIBHSESS-20-002 | 11915 | -20 | 1.12" (28.5mm) | 2' | 500 psi | -40°F - 300°F |
| VIBHSESS-20-005 | 11945 | -20 | 1.12" (28.5mm) | 5' | 500 psi | -40°F - 300°F |
| VIBHSESS-20-010 | 11925 | -20 | 1.12" (28.5mm) | 10' | 500 psi | -40°F - 300°F |
| VIBHSESS-20-020 | 11935 | -20 | 1.12" (28.5mm) | 20' | 500 psi | -40°F - 300°F |
