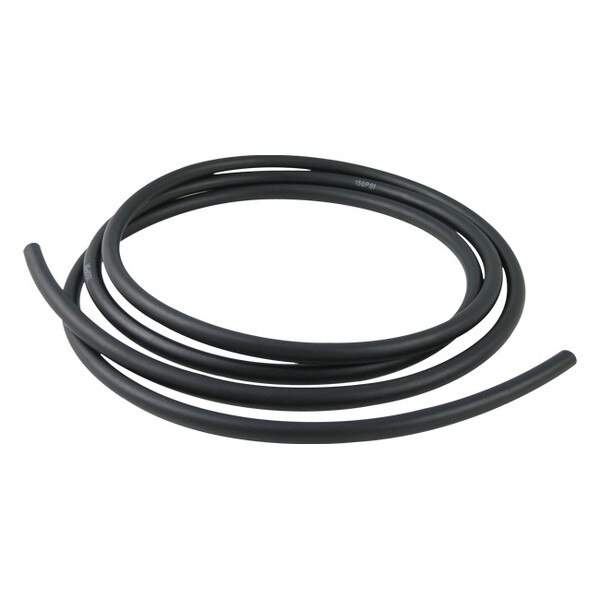

Vibrant AN Push-Style Hose - Black
Vibrant Performance Black Flex Hose is made from a synthetic rubber that is suitable for oil, water, fuel, or coolant use. For use with Vibrant push-on style fittings only. Capable of withstanding temperatures from -30 Deg F up to 160 Deg F with a 250 psi operating pressure. Available in 10 foot and 20 foot lengths.
| VMS Part # | MFG Part # | AN Size | Hose ID | Length | Operating Pressure | Temp. Range |
|---|---|---|---|---|---|---|
| VIBHSEPUSH-04-010 | 16314 | -4 | 0.25" (6.4mm) | 10' (3.05m) | 500 psi | -30°F - 160°F |
| VIBHSEPUSH-04-020 | 16324 | -4 | 0.25" (6.4mm) | 20' (6.10m) | 500 psi | -30°F - 160°F |
| VIBHSEPUSH-06-010 | 16316 | -6 | 0.38" (9.7mm) | 10' (3.05m) | 500 psi | -30°F - 160°F |
| VIBHSEPUSH-06-020 | 16326 | -6 | 0.38" (9.7mm) | 20' (6.10m) | 500 psi | -30°F - 160°F |
| VIBHSEPUSH-08-010 | 16318 | -8 | 0.50" (12.7mm) | 10' (3.05m) | 500 psi | -30°F - 160°F |
| VIBHSEPUSH-08-020 | 16328 | -8 | 0.50" (12.7mm) | 20' (6.10m) | 500 psi | -30°F - 160°F |
| VIBHSEPUSH-10-010 | 16320 | -10 | 0.63" (16.0mm) | 10' (3.05m) | 500 psi | -30°F - 160°F |
| VIBHSEPUSH-10-020 | 16330 | -10 | 0.63" (16.0mm) | 20' (6.10m) | 500 psi | -30°F - 160°F |
| VIBHSEPUSH-12-010 | 16322 | -12 | 0.75" (19.1mm) | 10' (3.05m) | 350 psi | -30°F - 160°F |
| VIBHSEPUSH-12-020 | 16332 | -12 | 0.75" (19.1mm) | 20' (6.10m) | 350 psi | -30°F - 160°F |
