Vibrant Oval 90 Degree Vertical Mandrel Bend, 304 Stainless Steel

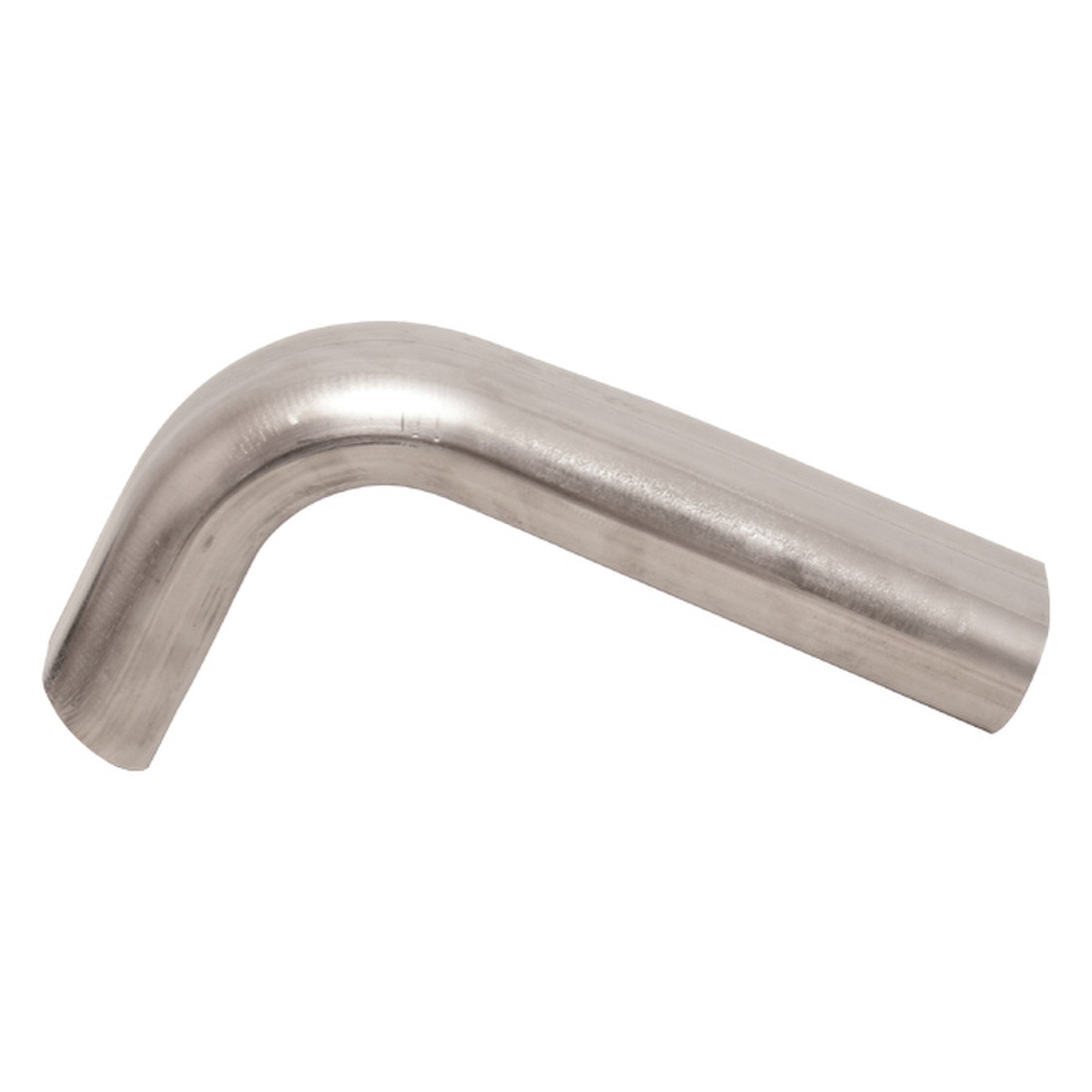

Vibrant Oval 90 Degree Mandrel bends are made from 16 gauge (0.065" wall thickness) 304 stainless steel tubing. This vertical style bend is perfect for transitioning to the vertical plane while maintaining ground clearance. These are perfect for building custom low profile high performance exhaust systems. Now you can run larger exhaust pipes with minimal ground clearance requirements.
Oval Bends and Oval Tubing are sold as a nominal size. The nominal size equals the equivalent diameter for like-size round tubing. Please reference the chart below for exact sizing.
 | |||||
| VMS Part # | Tube OD | Leg (A) | Leg (B) | Bend Radius (R) | Wall Thickness |
|---|---|---|---|---|---|
| 0900416-063100-3X3 | 0.63" (15.9mm) | 3.00" (76.2mm) | 3.00" (76.2mm) | 1.00" (25.4mm) | 16 ga. (0.065") |
| 0900416-075100-3X3 | 0.75" (19.1mm) | 3.00" (76.2mm) | 3.00" (76.2mm) | 1.00" (25.4mm) | 16 ga. (0.065") |
| 0900416-088150-6X6 | 0.88" (22.4mm) | 6.00" (152.4mm) | 6.00" (152.4mm) | 1.50" (38.1mm) | 16 ga. (0.065") |
| 0900416-100100-6X6 | 1.00" (25.4mm) | 6.00" (152.4mm) | 6.00" (152.4mm) | 1.00" (25.4mm) | 16 ga. (0.065") |
| 0900416-100150-3X9 | 1.00" (25.4mm) | 3.00" (76.2mm) | 9.00" (228.6mm) | 1.50" (38.1mm) | 16 ga. (0.065") |
| 0900416-125125-6X6 | 1.25" (31.8mm) | 6.00" (152.4mm) | 6.00" (152.4mm) | 1.25" (31.8mm) | 16 ga. (0.065") |
| 0900416-138150-6X6 | 1.38" (35.1mm) | 6.00" (152.4mm) | 6.00" (152.4mm) | 1.50" (38.1mm) | 16 ga. (0.065") |
| 0900416-138250-6X6 | 1.38" (35.1mm) | 6.00" (152.4mm) | 6.00" (152.4mm) | 2.50" (63.5mm) | 16 ga. (0.065") |
| 0900416-150150-6X6 | 1.50" (38.1mm) | 6.00" (152.4mm) | 6.00" (152.4mm) | 1.50" (38.1mm) | 16 ga. (0.065") |
| 0900416-150300-6X6 | 1.50" (38.1mm) | 6.00" (152.4mm) | 6.00" (152.4mm) | 3.00" (76.2mm) | 16 ga. (0.065") |
| 0900416-163163-6X6 | 1.63" (41.4mm) | 6.00" (152.4mm) | 6.00" (152.4mm) | 1.63" (41.4mm) | 16 ga. (0.065") |
| 0900416-163250-6X6 | 1.63" (41.4mm) | 6.00" (152.4mm) | 6.00" (152.4mm) | 2.50" (63.5mm) | 16 ga. (0.065") |
| 0900416-175175-6X6 | 1.75" (44.5mm) | 6.00" (152.4mm) | 6.00" (152.4mm) | 1.75" (44.5mm) | 16 ga. (0.065") |
| 0900416-175250-6X6 | 1.75" (44.5mm) | 6.00" (152.4mm) | 6.00" (152.4mm) | 2.50" (63.5mm) | 16 ga. (0.065") |
| 0900416-188188-6X6 | 1.88" (47.8mm) | 6.00" (152.4mm) | 6.00" (152.4mm) | 1.88" (47.8mm) | 16 ga. (0.065") |
| 0900416-188250-6X6 | 1.88" (47.8mm) | 6.00" (152.4mm) | 6.00" (152.4mm) | 2.50" (63.5mm) | 16 ga. (0.065") |
| 0900416-200200-6X6 | 2.00" (50.8mm) | 6.00" (152.4mm) | 6.00" (152.4mm) | 2.00" (50.8mm) | 16 ga. (0.065") |
| 0900416-200300-6X6 | 2.00" (50.8mm) | 6.00" (152.4mm) | 6.00" (152.4mm) | 3.00" (76.2mm) | 16 ga. (0.065") |
| 0900416-200400-6X6 | 2.00" (50.8mm) | 6.00" (152.4mm) | 6.00" (152.4mm) | 4.00" (101.6mm) | 16 ga. (0.065") |
| 0900416-213250-6X6 | 2.13" (54.1mm) | 6.00" (152.4mm) | 6.00" (152.4mm) | 2.50" (63.5mm) | 16 ga. (0.065") |
| 0900416-213400-6X6 | 2.13" (54.1mm) | 6.00" (152.4mm) | 6.00" (152.4mm) | 4.00" (101.6mm) | 16 ga. (0.065") |
| 0900416-225225-6X6 | 2.25" (57.2mm) | 6.00" (152.4mm) | 6.00" (152.4mm) | 2.25" (57.2mm) | 16 ga. (0.065") |
| 0900416-225350-6X6 | 2.25" (57.2mm) | 6.00" (152.4mm) | 6.00" (152.4mm) | 3.50" (88.9mm) | 16 ga. (0.065") |
| 0900416-238250-6X6 | 2.38" (60.5mm) | 6.00" (152.4mm) | 6.00" (152.4mm) | 2.50" (63.5mm) | 16 ga. (0.065") |
| 0900416-238600-6X6 | 2.38" (60.5mm) | 6.00" (152.4mm) | 6.00" (152.4mm) | 6.00" (152.4mm) | 16 ga. (0.065") |
| 0900416-250250-6X6 | 2.50" (63.5mm) | 6.00" (152.4mm) | 6.00" (152.4mm) | 2.50" (63.5mm) | 16 ga. (0.065") |
| 0900416-250375-6X6 | 2.50" (63.5mm) | 6.00" (152.4mm) | 6.00" (152.4mm) | 3.75" (95.3mm) | 16 ga. (0.065") |
| 0900416-250600-4X6 | 2.50" (63.5mm) | 4.00" (152.4mm) | 6.00" (152.4mm) | 6.00" (152.4mm) | 16 ga. (0.065") |
| 0900416-275300-6X6 | 2.75" (69.9mm) | 6.00" (152.4mm) | 6.00" (152.4mm) | 3.00" (76.2mm) | 16 ga. (0.065") |
| 0900416-275400-6X6 | 2.75" (69.9mm) | 6.00" (152.4mm) | 6.00" (152.4mm) | 4.00" (101.6mm) | 16 ga. (0.065") |
| 0900416-300300-6X6 | 3.00" (76.2mm) | 6.00" (152.4mm) | 6.00" (152.4mm) | 3.00" (76.2mm) | 16 ga. (0.065") |
| 0900416-300450-6X6 | 3.00" (76.2mm) | 6.00" (152.4mm) | 6.00" (152.4mm) | 4.50" (114.3mm) | 16 ga. (0.065") |
| 0900416-300600-8X8 | 3.00" (76.2mm) | 8.00" (203.2mm) | 8.00" (203.2mm) | 6.00" (152.4mm) | 16 ga. (0.065") |
| 0900416-350350-4X8 | 3.50" (88.9mm) | 4.00" (101.6mm) | 8.00" (203.2mm) | 3.50" (88.9mm) | 16 ga. (0.065") |
| 0900416-350450-5X7 | 3.50" (88.9mm) | 5.00" (127.0mm) | 7.00" (177.8mm) | 4.50" (114.3mm) | 16 ga. (0.065") |
| 0900416-400400-4X9 | 4.00" (101.6mm) | 4.00" (101.6mm) | 9.00" (228.6mm) | 4.00" (101.6mm) | 16 ga. (0.065") |
| 0900416-400600-6X8 | 4.00" (101.6mm) | 6.00" (152.4mm) | 8.00" (203.2mm) | 6.00" (152.4mm) | 16 ga. (0.065") |
| 0900416-450450-8X8 | 4.50" (114.3mm) | 8.00" (203.2mm) | 8.00" (203.2mm) | 4.50" (114.3mm) | 16 ga. (0.065") |
| 0900416-450675-7X8 | 4.50" (114.3mm) | 7.00" (127.0mm) | 8.00" (228.6mm) | 6.75" (171.5mm) | 16 ga. (0.065") |
| 0900416-500525-5X9 | 5.00" (127.0mm) | 5.00" (127.0mm) | 9.00" (228.6mm) | 5.25" (133.4mm) | 16 ga. (0.065") |
| 0900416-500750-5X9 | 5.00" (127.0mm) | 5.00" (127.0mm) | 9.00" (228.6mm) | 7.50" (190.5mm) | 16 ga. (0.065") |
| 0900416-600600-6X6 | 6.00" (152.4mm) | 6.00" (152.4mm) | 6.00" (152.4mm) | 6.00" (152.4mm) | 16 ga. (0.065") |
