Vibrant Silicone Hose, 4 Ply, 12" and 36" Long
ATTENTION: All red versions of this product are discontinued.

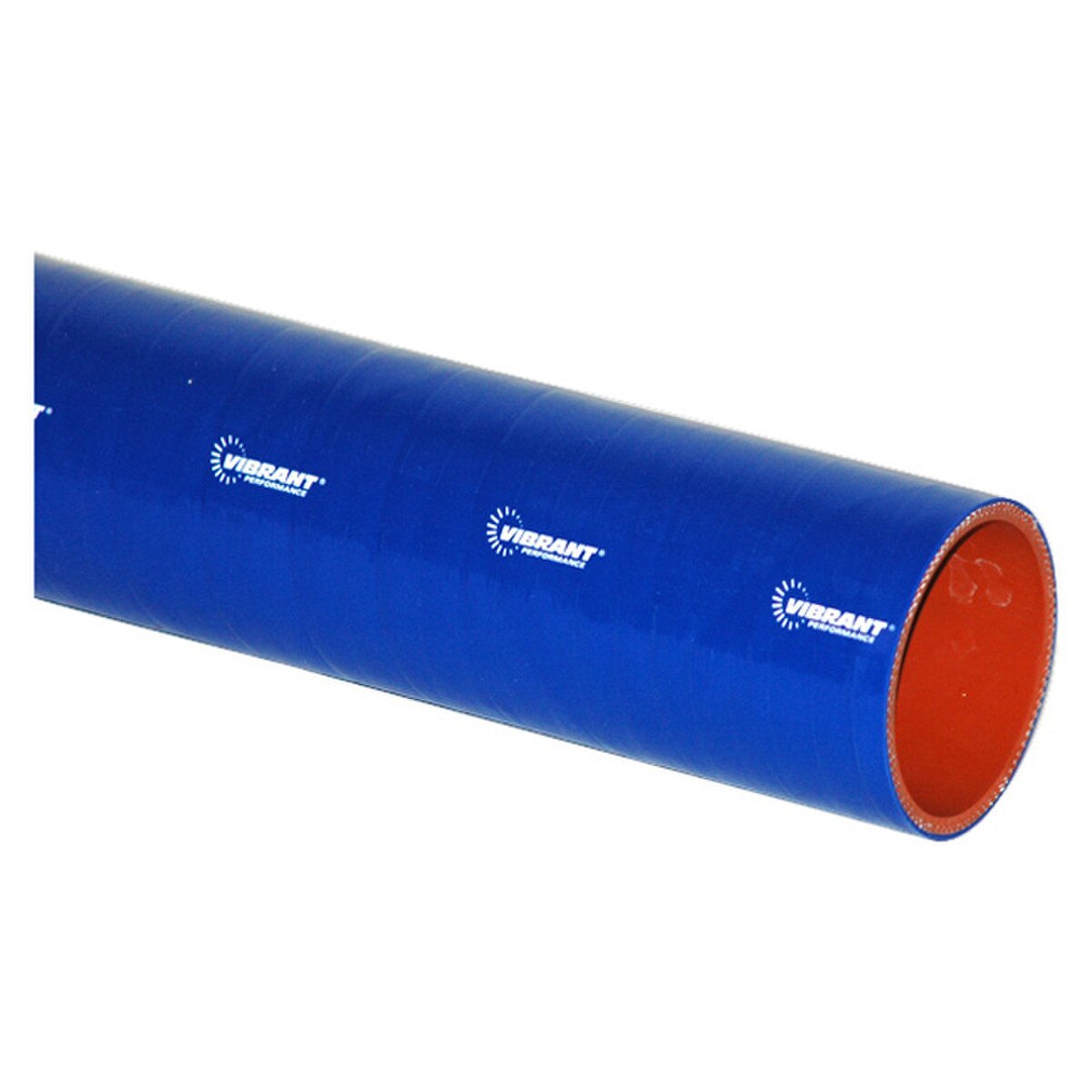

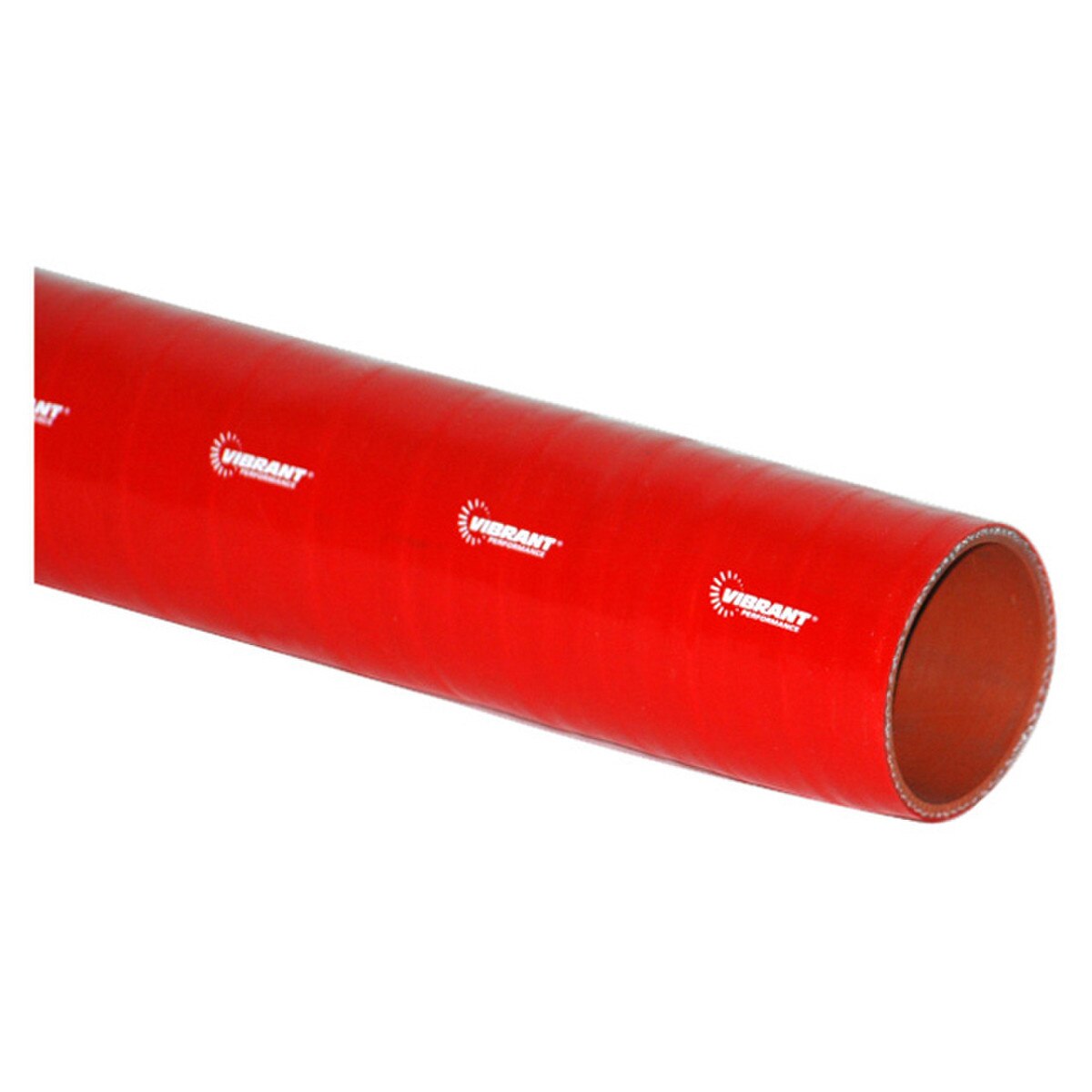

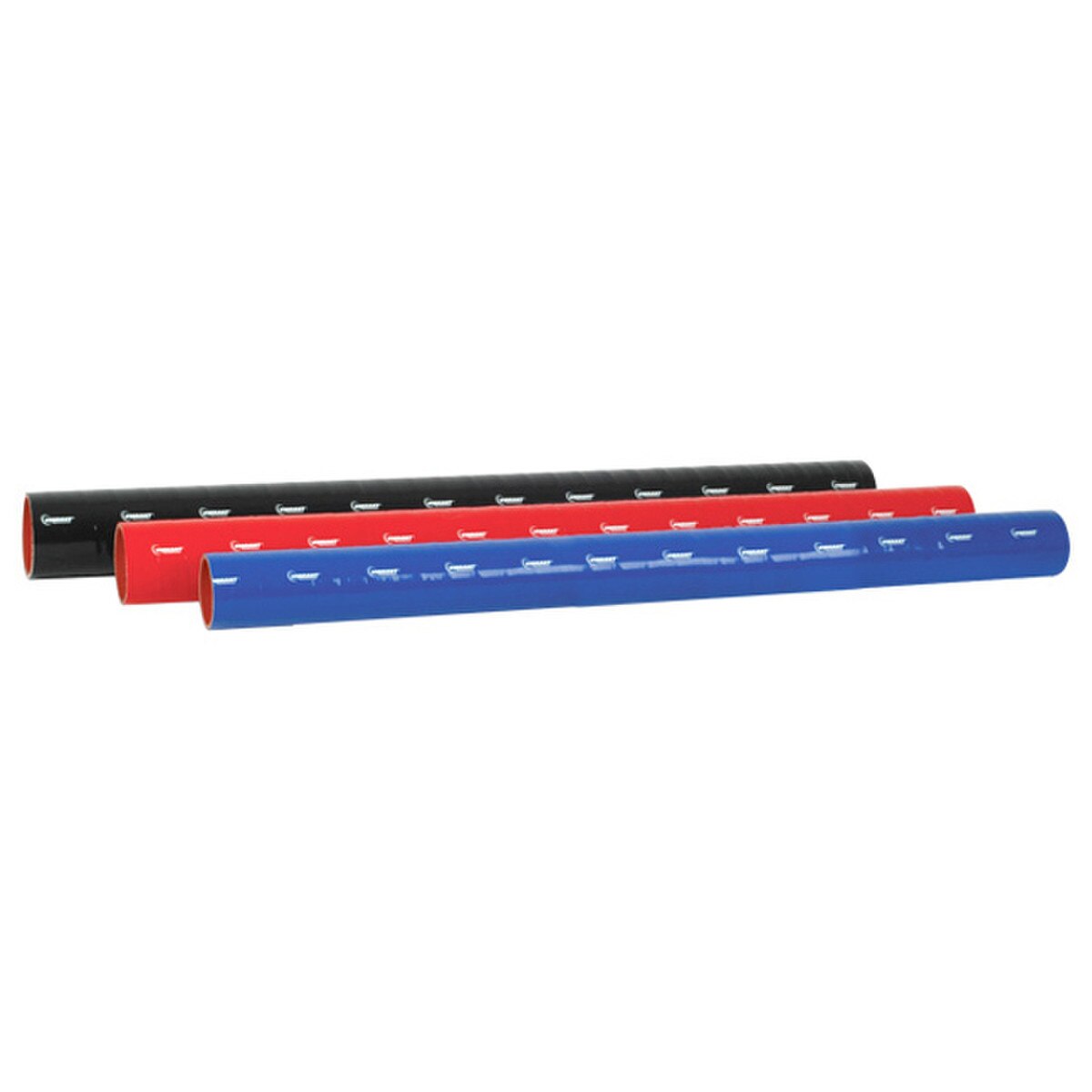

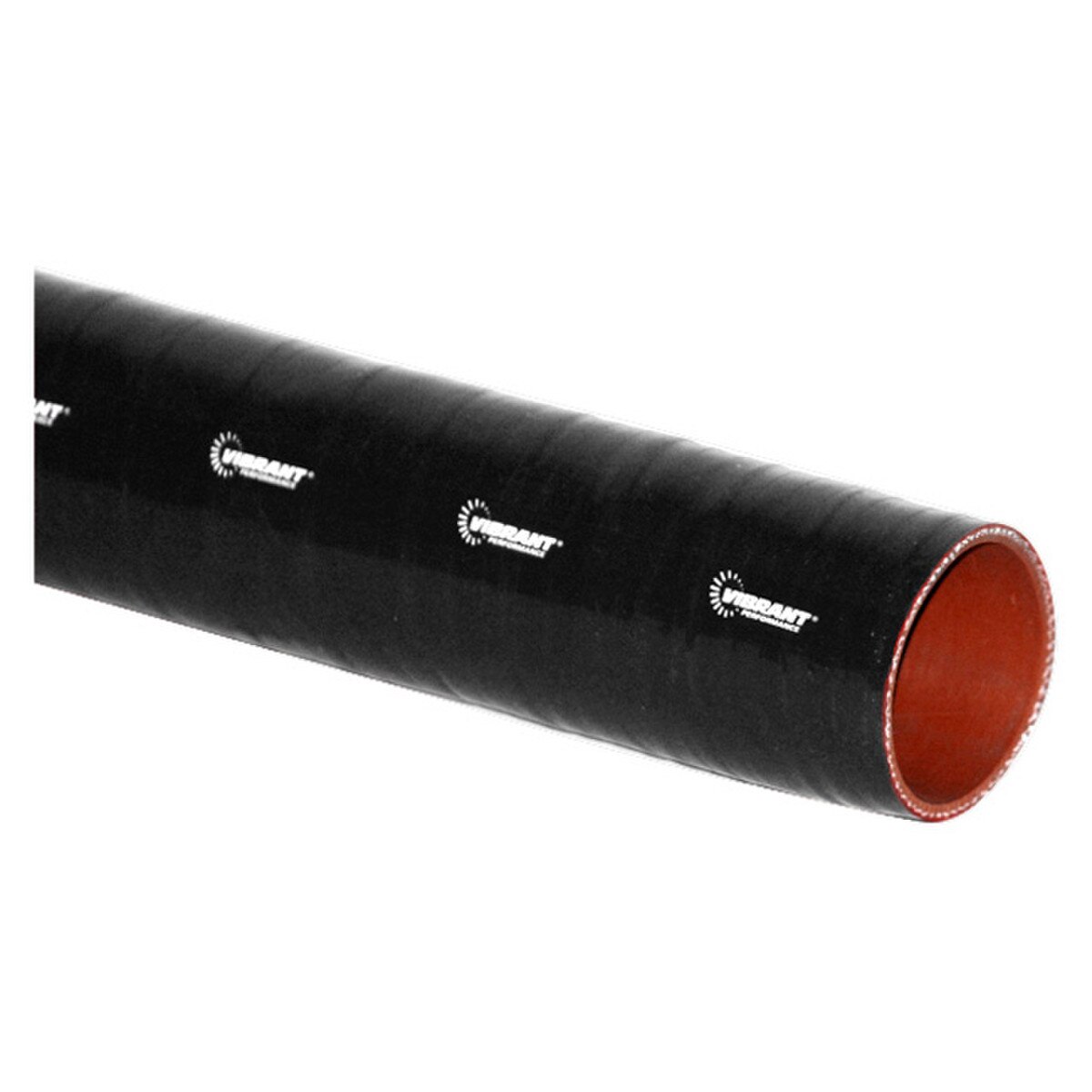

Vibrant Performance makes it easy to complete all of your custom air induction projects with their complete lineup of top quality reinforced silicone connectors. This Vibrant silicone hose features hand wrapped 4-ply polyester reinforced construction, which allows these couplers to withstand high temperatures and high boost conditions without swelling or bursting like inferior rubber connectors. Vibrant's 4 ply silicone hose comes in 12" and 36" lengths, giving you the ability to make your own custom sized couplers. Rated for temperatures from -65° F up to 350° F.
 | |||||
| VMS Part # | MFG Part # | Size (Hose ID) | Length (OAL) | Wall Thick. (± 0.02") | Burst Pressure |
|---|---|---|---|---|---|
| VIBHSE4P-100-12-BLK | 27011 | 1.00" (25.4mm) | 12.00" (304.8mm) | 0.18" (4.57mm) | 140 psi |
| VIBHSE4P-100-12-BLU | 27011B | 1.00" (25.4mm) | 12.00" (304.8mm) | 0.18" (4.57mm) | 140 psi |
| VIBHSE4P-100-12-RED | 27011R | 1.00" (25.4mm) | 12.00" (304.8mm) | 0.18" (4.57mm) | 140 psi |
| VIBHSE4P-125-12-BLK | 27271 | 1.25" (31.8mm) | 36" (914.4mm) | 0.18" (4.57mm) | 130 psi |
| VIBHSE4P-125-12-BLU | 27271B | 1.25" (31.8mm) | 36" (914.4mm) | 0.18" (4.57mm) | 130 psi |
| VIBHSE4P-125-12-RED | 27271R | 1.25" (31.8mm) | 36" (914.4mm) | 0.18" (4.57mm) | 130 psi |
| VIBHSE4P-150-12-BLK | 27031 | 1.50" (38.1mm) | 12.00" (304.8mm) | 0.18" (4.57mm) | 120 psi |
| VIBHSE4P-150-12-BLU | 27031B | 1.50" (38.1mm) | 12.00" (304.8mm) | 0.18" (4.57mm) | 120 psi |
| VIBHSE4P-150-12-RED | 27031R | 1.50" (38.1mm) | 12.00" (304.8mm) | 0.18" (4.57mm) | 120 psi |
| VIBHSE4P-175-12-BLK | 27051 | 1.75" (44.5mm) | 36" (914.4mm) | 0.18" (4.57mm) | 110 psi |
| VIBHSE4P-175-12-BLU | 27051B | 1.75" (44.5mm) | 36" (914.4mm) | 0.18" (4.57mm) | 110 psi |
| VIBHSE4P-175-12-RED | 27051R | 1.75" (44.5mm) | 36" (914.4mm) | 0.18" (4.57mm) | 110 psi |
| VIBHSE4P-200-12-BLK | 27071 | 2.00" (50.8mm) | 12.00" (304.8mm) | 0.18" (4.57mm) | 100 psi |
| VIBHSE4P-200-12-BLU | 27071B | 2.00" (50.8mm) | 12.00" (304.8mm) | 0.18" (4.57mm) | 100 psi |
| VIBHSE4P-200-12-RED | 27071R | 2.00" (50.8mm) | 12.00" (304.8mm) | 0.18" (4.57mm) | 100 psi |
| VIBHSE4P-225-12-BLK | 27091 | 2.25" (57.2mm) | 36" (914.4mm) | 0.18" (4.57mm) | 90 psi |
| VIBHSE4P-225-12-BLU | 27091B | 2.25" (57.2mm) | 36" (914.4mm) | 0.18" (4.57mm) | 90 psi |
| VIBHSE4P-225-12-RED | 27091R | 2.25" (57.2mm) | 36" (914.4mm) | 0.18" (4.57mm) | 90 psi |
| VIBHSE4P-250-12-BLK | 27111 | 2.50" (63.5mm) | 12.00" (304.8mm) | 0.18" (4.57mm) | 80 psi |
| VIBHSE4P-250-12-BLU | 27111B | 2.50" (63.5mm) | 12.00" (304.8mm) | 0.18" (4.57mm) | 80 psi |
| VIBHSE4P-250-12-RED | 27111R | 2.50" (63.5mm) | 12.00" (304.8mm) | 0.18" (4.57mm) | 80 psi |
| VIBHSE4P-275-12-BLK | 27131 | 2.75" (69.9mm) | 36" (914.4mm) | 0.18" (4.57mm) | 70 psi |
| VIBHSE4P-275-12-BLU | 27131B | 2.75" (69.9mm) | 36" (914.4mm) | 0.18" (4.57mm) | 70 psi |
| VIBHSE4P-275-12-RED | 27131R | 2.75" (69.9mm) | 36" (914.4mm) | 0.18" (4.57mm) | 70 psi |
| VIBHSE4P-300-12-BLK | 27151 | 3.00" (76.2mm) | 12.00" (304.8mm) | 0.18" (4.57mm) | 60 psi |
| VIBHSE4P-300-12-BLU | 27151B | 3.00" (76.2mm) | 12.00" (304.8mm) | 0.18" (4.57mm) | 60 psi |
| VIBHSE4P-300-12-RED | 27151R | 3.00" (76.2mm) | 12.00" (304.8mm) | 0.18" (4.57mm) | 60 psi |
| VIBHSE4P-325-12-BLK | 27211 | 3.25" (82.6mm) | 36" (914.4mm) | 0.18" (4.57mm) | 40 psi |
| VIBHSE4P-325-12-BLU | 27211B | 3.25" (82.6mm) | 36" (914.4mm) | 0.18" (4.57mm) | 40 psi |
| VIBHSE4P-325-12-RED | 27211R | 3.25" (82.6mm) | 36" (914.4mm) | 0.18" (4.57mm) | 40 psi |
| VIBHSE4P-350-12-BLK | 27171 | 3.50" (88.9mm) | 12.00" (304.8mm) | 0.18" (4.57mm) | 40 psi |
| VIBHSE4P-350-12-BLU | 27171B | 3.50" (88.9mm) | 12.00" (304.8mm) | 0.18" (4.57mm) | 40 psi |
| VIBHSE4P-350-12-RED | 27171R | 3.50" (88.9mm) | 12.00" (304.8mm) | 0.18" (4.57mm) | 40 psi |
| VIBHSE4P-400-12-BLK | 27191 | 4.00" (101.6mm) | 36" (914.4mm) | 0.18" (4.57mm) | 40 psi |
| VIBHSE4P-400-12-BLU | 27191B | 4.00" (101.6mm) | 36" (914.4mm) | 0.18" (4.57mm) | 40 psi |
| VIBHSE4P-400-12-RED | 27191R | 4.00" (101.6mm) | 36" (914.4mm) | 0.18" (4.57mm) | 40 psi |
| VIBHSE4P-450-12-BLK | 27231 | 4.50" (114.3mm) | 12.00" (304.8mm) | 0.18" (4.57mm) | 40 psi |
| VIBHSE4P-450-12-BLU | 27231B | 4.50" (114.3mm) | 12.00" (304.8mm) | 0.18" (4.57mm) | 40 psi |
| VIBHSE4P-450-12-RED | 27231R | 4.50" (114.3mm) | 12.00" (304.8mm) | 0.18" (4.57mm) | 40 psi |
| VIBHSE4P-500-12-BLK | 27251 | 5.00" (127.0mm) | 36" (914.4mm) | 0.18" (4.57mm) | 40 psi |
| VIBHSE4P-500-12-BLU | 27251B | 5.00" (127.0mm) | 36" (914.4mm) | 0.18" (4.57mm) | 40 psi |
| VIBHSE4P-500-12-RED | 27251R | 5.00" (127.0mm) | 36" (914.4mm) | 0.18" (4.57mm) | 40 psi |
| VIBHSE4P-100-36-BLK | 2701 | 1.00" (25.4mm) | 12.00" (304.8mm) | 0.18" (4.57mm) | 140 psi |
| VIBHSE4P-100-36-BLU | 2701B | 1.00" (25.4mm) | 12.00" (304.8mm) | 0.18" (4.57mm) | 140 psi |
| VIBHSE4P-100-36-RED | 2701R | 1.00" (25.4mm) | 12.00" (304.8mm) | 0.18" (4.57mm) | 140 psi |
| VIBHSE4P-125-36-BLK | 2727 | 1.25" (31.8mm) | 36" (914.4mm) | 0.18" (4.57mm) | 130 psi |
| VIBHSE4P-125-36-BLU | 2727B | 1.25" (31.8mm) | 36" (914.4mm) | 0.18" (4.57mm) | 130 psi |
| VIBHSE4P-125-36-RED | 2727R | 1.25" (31.8mm) | 36" (914.4mm) | 0.18" (4.57mm) | 130 psi |
| VIBHSE4P-150-36-BLK | 2703 | 1.50" (38.1mm) | 12.00" (304.8mm) | 0.18" (4.57mm) | 120 psi |
| VIBHSE4P-150-36-BLU | 2703B | 1.50" (38.1mm) | 12.00" (304.8mm) | 0.18" (4.57mm) | 120 psi |
| VIBHSE4P-150-36-RED | 2703R | 1.50" (38.1mm) | 12.00" (304.8mm) | 0.18" (4.57mm) | 120 psi |
| VIBHSE4P-175-36-BLK | 2705 | 1.75" (44.5mm) | 36" (914.4mm) | 0.18" (4.57mm) | 110 psi |
| VIBHSE4P-175-36-BLU | 2705B | 1.75" (44.5mm) | 36" (914.4mm) | 0.18" (4.57mm) | 110 psi |
| VIBHSE4P-175-36-RED | 2705R | 1.75" (44.5mm) | 36" (914.4mm) | 0.18" (4.57mm) | 110 psi |
| VIBHSE4P-200-36-BLK | 2707 | 2.00" (50.8mm) | 12.00" (304.8mm) | 0.18" (4.57mm) | 100 psi |
| VIBHSE4P-200-36-BLU | 2707B | 2.00" (50.8mm) | 12.00" (304.8mm) | 0.18" (4.57mm) | 100 psi |
| VIBHSE4P-200-36-RED | 2707R | 2.00" (50.8mm) | 12.00" (304.8mm) | 0.18" (4.57mm) | 100 psi |
| VIBHSE4P-225-36-BLK | 2709 | 2.25" (57.2mm) | 36" (914.4mm) | 0.18" (4.57mm) | 90 psi |
| VIBHSE4P-225-36-BLU | 2709B | 2.25" (57.2mm) | 36" (914.4mm) | 0.18" (4.57mm) | 90 psi |
| VIBHSE4P-225-36-RED | 2709R | 2.25" (57.2mm) | 36" (914.4mm) | 0.18" (4.57mm) | 90 psi |
| VIBHSE4P-250-36-BLK | 2711 | 2.50" (63.5mm) | 12.00" (304.8mm) | 0.18" (4.57mm) | 80 psi |
| VIBHSE4P-250-36-BLU | 2711B | 2.50" (63.5mm) | 12.00" (304.8mm) | 0.18" (4.57mm) | 80 psi |
| VIBHSE4P-250-36-RED | 2711R | 2.50" (63.5mm) | 12.00" (304.8mm) | 0.18" (4.57mm) | 80 psi |
| VIBHSE4P-275-36-BLK | 2713 | 2.75" (69.9mm) | 36" (914.4mm) | 0.18" (4.57mm) | 70 psi |
| VIBHSE4P-275-36-BLU | 2713B | 2.75" (69.9mm) | 36" (914.4mm) | 0.18" (4.57mm) | 70 psi |
| VIBHSE4P-275-36-RED | 2713R | 2.75" (69.9mm) | 36" (914.4mm) | 0.18" (4.57mm) | 70 psi |
| VIBHSE4P-300-36-BLK | 2715 | 3.00" (76.2mm) | 12.00" (304.8mm) | 0.18" (4.57mm) | 60 psi |
| VIBHSE4P-300-36-BLU | 2715B | 3.00" (76.2mm) | 12.00" (304.8mm) | 0.18" (4.57mm) | 60 psi |
| VIBHSE4P-300-36-RED | 2715R | 3.00" (76.2mm) | 12.00" (304.8mm) | 0.18" (4.57mm) | 60 psi |
| VIBHSE4P-325-36-BLK | 2721 | 3.25" (82.6mm) | 36" (914.4mm) | 0.18" (4.57mm) | 40 psi |
| VIBHSE4P-325-36-BLU | 2721B | 3.25" (82.6mm) | 36" (914.4mm) | 0.18" (4.57mm) | 40 psi |
| VIBHSE4P-325-36-RED | 2721R | 3.25" (82.6mm) | 36" (914.4mm) | 0.18" (4.57mm) | 40 psi |
| VIBHSE4P-350-36-BLK | 2717 | 3.50" (88.9mm) | 12.00" (304.8mm) | 0.18" (4.57mm) | 40 psi |
| VIBHSE4P-350-36-BLU | 2717B | 3.50" (88.9mm) | 12.00" (304.8mm) | 0.18" (4.57mm) | 40 psi |
| VIBHSE4P-350-36-RED | 2717R | 3.50" (88.9mm) | 12.00" (304.8mm) | 0.18" (4.57mm) | 40 psi |
| VIBHSE4P-400-36-BLK | 2719 | 4.00" (101.6mm) | 36" (914.4mm) | 0.18" (4.57mm) | 40 psi |
| VIBHSE4P-400-36-BLU | 2719B | 4.00" (101.6mm) | 36" (914.4mm) | 0.18" (4.57mm) | 40 psi |
| VIBHSE4P-400-36-RED | 2719R | 4.00" (101.6mm) | 36" (914.4mm) | 0.18" (4.57mm) | 40 psi |
| VIBHSE4P-450-36-BLK | 2723 | 4.50" (114.3mm) | 12.00" (304.8mm) | 0.18" (4.57mm) | 40 psi |
| VIBHSE4P-450-36-BLU | 2723B | 4.50" (114.3mm) | 12.00" (304.8mm) | 0.18" (4.57mm) | 40 psi |
| VIBHSE4P-450-36-RED | 2723R | 4.50" (114.3mm) | 12.00" (304.8mm) | 0.18" (4.57mm) | 40 psi |
| VIBHSE4P-500-36-BLK | 2725 | 5.00" (127.0mm) | 36" (914.4mm) | 0.18" (4.57mm) | 40 psi |
| VIBHSE4P-500-36-BLU | 2725B | 5.00" (127.0mm) | 36" (914.4mm) | 0.18" (4.57mm) | 40 psi |
| VIBHSE4P-500-36-RED | 2725R | 5.00" (127.0mm) | 36" (914.4mm) | 0.18" (4.57mm) | 40 psi |
