Vibrant Silicone Reducers, 4 Ply
ATTENTION: All red versions of this product are discontinued.

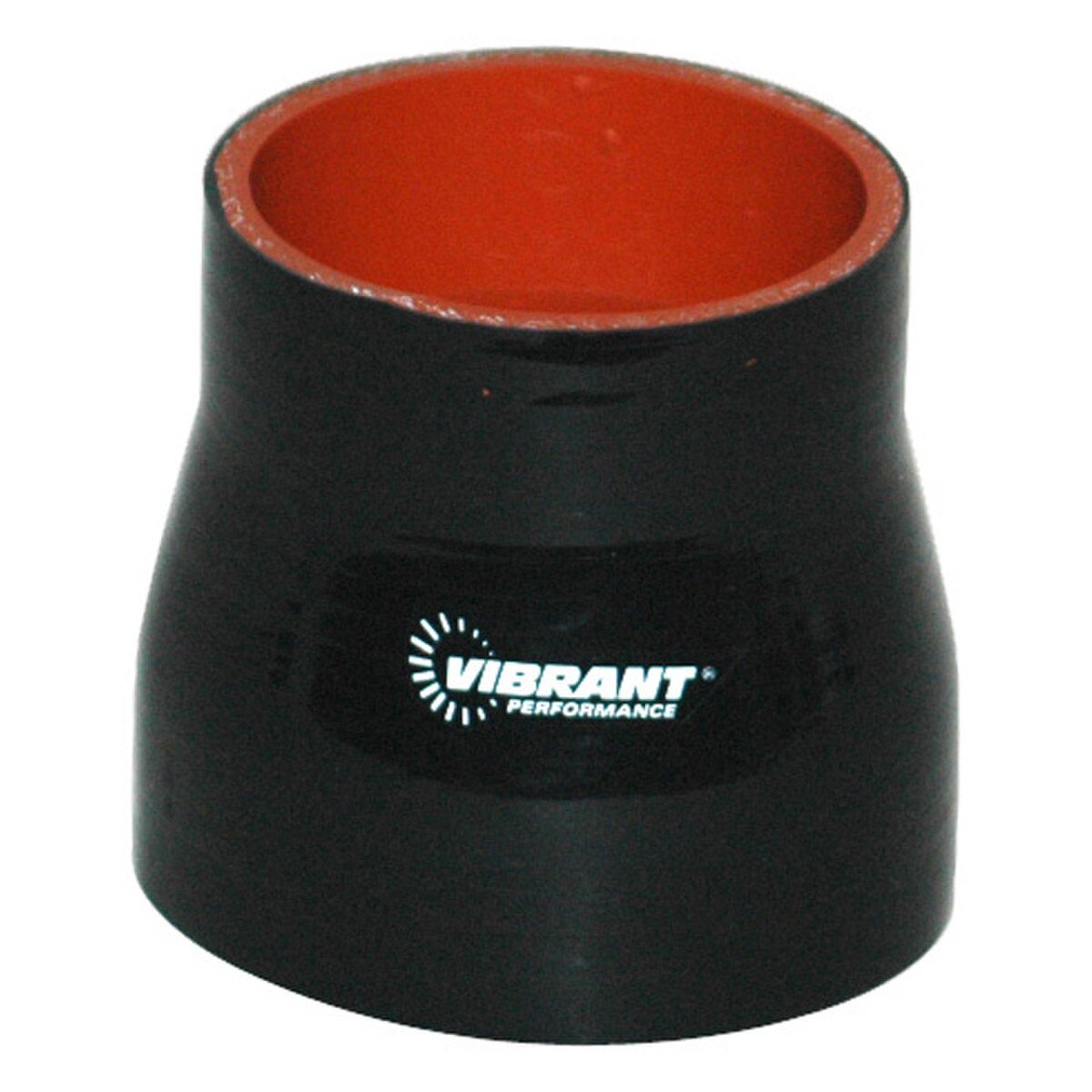

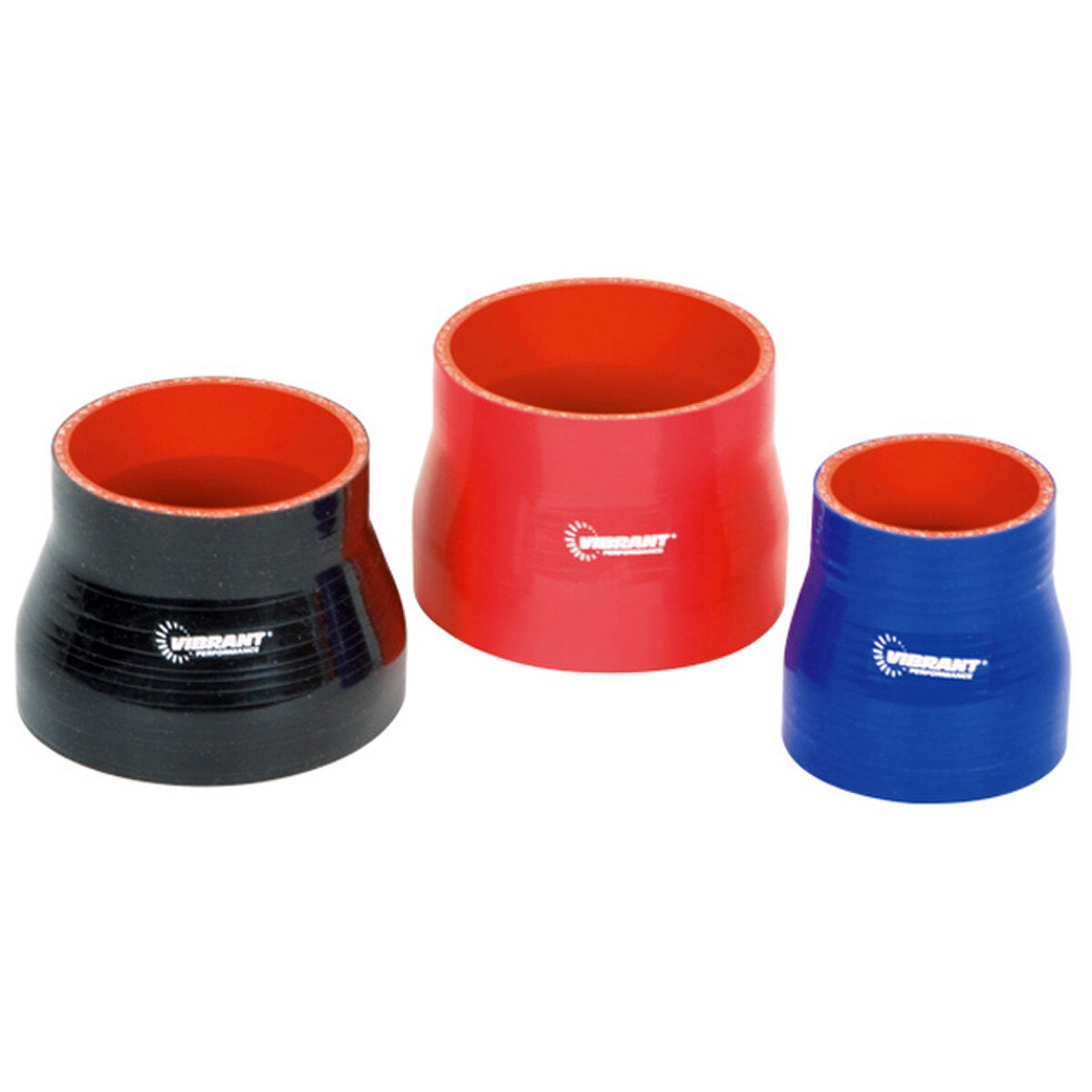

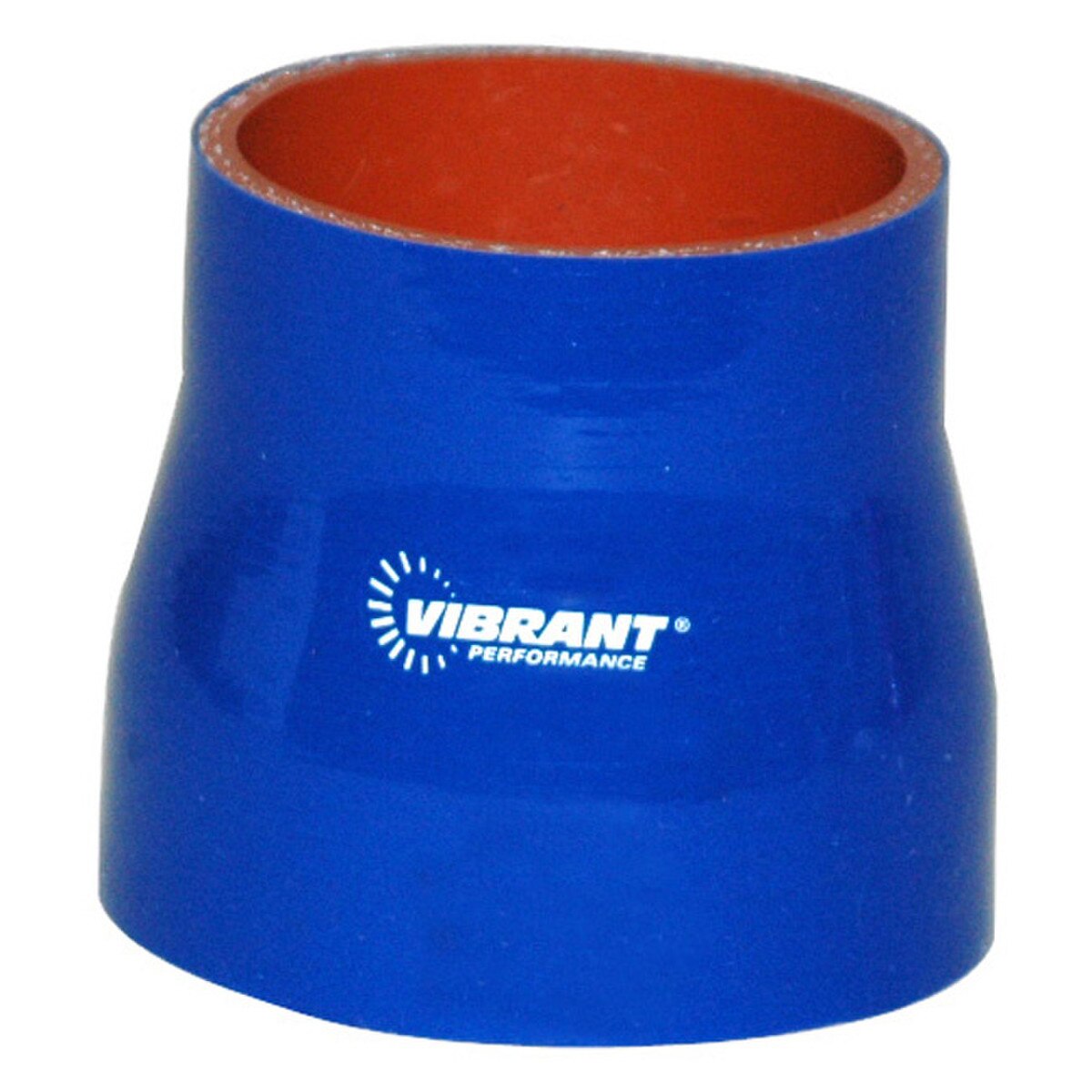

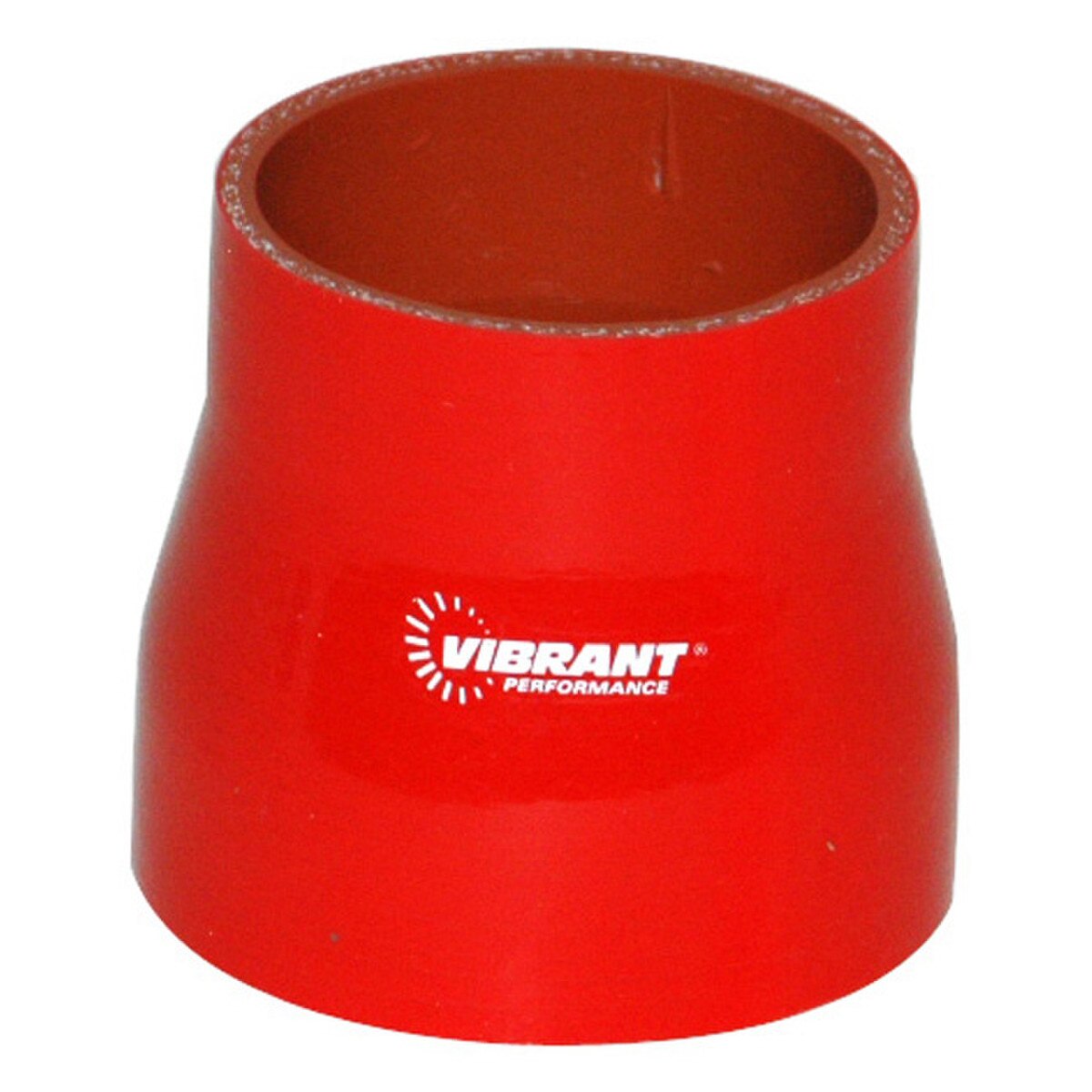

Vibrant Performance makes it easy to complete all of your custom air induction projects with their complete lineup of top quality reinforced silicone connectors. These Vibrant silicone reducers feature hand wrapped 4-ply polyester reinforced construction, which allows these couplers to withstand high temperatures and high boost conditions without swelling or bursting like inferior rubber connectors. Vibrant's 4 ply silicone transitions are 3" in length and rated for temperatures from -65° F up to 350° F.
 | ||||||
| VMS Part # | MFG Part # | Size 1 (ID 1) | Size 2 (ID 2) | Length (OAL) | Wall Thick. (± 0.02") | Burst Pressure |
|---|---|---|---|---|---|---|
| VIBRED4P-150175-3-BLK | 2762 | 1.50" (38.1mm) | 1.75" (44.5mm) | 3.00" (76.2mm) | 0.18" (4.57mm) | 110 psi |
| VIBRED4P-150175-3-BLU | 2762B | 1.50" (38.1mm) | 1.75" (44.5mm) | 3.00" (76.2mm) | 0.18" (4.57mm) | 110 psi |
| VIBRED4P-150175-3-RED | 2762R | 1.50" (38.1mm) | 1.75" (44.5mm) | 3.00" (76.2mm) | 0.18" (4.57mm) | 110 psi |
| VIBRED4P-150200-3-BLK | 2763 | 1.50" (38.1mm) | 2.00" (50.8mm) | 3.00" (76.2mm) | 0.18" (4.57mm) | 100 psi |
| VIBRED4P-150200-3-BLU | 2763B | 1.50" (38.1mm) | 2.00" (50.8mm) | 3.00" (76.2mm) | 0.18" (4.57mm) | 100 psi |
| VIBRED4P-150200-3-RED | 2763R | 1.50" (38.1mm) | 2.00" (50.8mm) | 3.00" (76.2mm) | 0.18" (4.57mm) | 100 psi |
| VIBRED4P-175200-3-BLK | 2767 | 1.75" (44.5mm) | 2.00" (50.8mm) | 3.00" (76.2mm) | 0.18" (4.57mm) | 100 psi |
| VIBRED4P-175200-3-BLU | 2767B | 1.75" (44.5mm) | 2.00" (50.8mm) | 3.00" (76.2mm) | 0.18" (4.57mm) | 100 psi |
| VIBRED4P-175200-3-RED | 2767R | 1.75" (44.5mm) | 2.00" (50.8mm) | 3.00" (76.2mm) | 0.18" (4.57mm) | 100 psi |
| VIBRED4P-175250-3-BLK | 2838 | 1.75" (44.5mm) | 2.50" (63.5mm) | 3.00" (76.2mm) | 0.18" (4.57mm) | 80 psi |
| VIBRED4P-175250-3-BLU | 2838B | 1.75" (44.5mm) | 2.50" (63.5mm) | 3.00" (76.2mm) | 0.18" (4.57mm) | 80 psi |
| VIBRED4P-175250-3-RED | 2838R | 1.75" (44.5mm) | 2.50" (63.5mm) | 3.00" (76.2mm) | 0.18" (4.57mm) | 80 psi |
| VIBRED4P-200225-3-BLK | 2765 | 2.00" (50.8mm) | 2.25" (57.2mm) | 3.00" (76.2mm) | 0.18" (4.57mm) | 90 psi |
| VIBRED4P-200225-3-BLU | 2765B | 2.00" (50.8mm) | 2.25" (57.2mm) | 3.00" (76.2mm) | 0.18" (4.57mm) | 90 psi |
| VIBRED4P-200225-3-RED | 2765R | 2.00" (50.8mm) | 2.25" (57.2mm) | 3.00" (76.2mm) | 0.18" (4.57mm) | 90 psi |
| VIBRED4P-200250-3-BLK | 2766 | 2.00" (50.8mm) | 2.50" (63.5mm) | 3.00" (76.2mm) | 0.18" (4.57mm) | 80 psi |
| VIBRED4P-200250-3-BLU | 2766B | 2.00" (50.8mm) | 2.50" (63.5mm) | 3.00" (76.2mm) | 0.18" (4.57mm) | 80 psi |
| VIBRED4P-200250-3-RED | 2766R | 2.00" (50.8mm) | 2.50" (63.5mm) | 3.00" (76.2mm) | 0.18" (4.57mm) | 80 psi |
| VIBRED4P-200275-3-BLK | 2778 | 2.00" (50.8mm) | 2.75" (69.9mm) | 3.00" (76.2mm) | 0.18" (4.57mm) | 70 psi |
| VIBRED4P-200275-3-BLU | 2778B | 2.00" (50.8mm) | 2.75" (69.9mm) | 3.00" (76.2mm) | 0.18" (4.57mm) | 70 psi |
| VIBRED4P-200275-3-RED | 2778R | 2.00" (50.8mm) | 2.75" (69.9mm) | 3.00" (76.2mm) | 0.18" (4.57mm) | 70 psi |
| VIBRED4P-200300-3-BLK | 2779 | 2.00" (50.8mm) | 3.00" (76.2mm) | 3.00" (76.2mm) | 0.18" (4.57mm) | 60 psi |
| VIBRED4P-200300-3-BLU | 2779B | 2.00" (50.8mm) | 3.00" (76.2mm) | 3.00" (76.2mm) | 0.18" (4.57mm) | 60 psi |
| VIBRED4P-200300-3-RED | 2779R | 2.00" (50.8mm) | 3.00" (76.2mm) | 3.00" (76.2mm) | 0.18" (4.57mm) | 60 psi |
| VIBRED4P-225250-3-BLK | 2768 | 2.25" (57.2mm) | 2.50" (63.5mm) | 3.00" (76.2mm) | 0.18" (4.57mm) | 80 psi |
| VIBRED4P-225250-3-BLU | 2768B | 2.25" (57.2mm) | 2.50" (63.5mm) | 3.00" (76.2mm) | 0.18" (4.57mm) | 80 psi |
| VIBRED4P-225250-3-RED | 2768R | 2.25" (57.2mm) | 2.50" (63.5mm) | 3.00" (76.2mm) | 0.18" (4.57mm) | 80 psi |
| VIBRED4P-225275-3-BLK | 2769 | 2.25" (57.2mm) | 2.75" (69.9mm) | 3.00" (76.2mm) | 0.18" (4.57mm) | 70 psi |
| VIBRED4P-225275-3-BLU | 2769B | 2.25" (57.2mm) | 2.75" (69.9mm) | 3.00" (76.2mm) | 0.18" (4.57mm) | 70 psi |
| VIBRED4P-225275-3-RED | 2769R | 2.25" (57.2mm) | 2.75" (69.9mm) | 3.00" (76.2mm) | 0.18" (4.57mm) | 70 psi |
| VIBRED4P-225300-3-BLK | 2770 | 2.25" (57.2mm) | 3.00" (76.2mm) | 3.00" (76.2mm) | 0.18" (4.57mm) | 60 psi |
| VIBRED4P-225300-3-BLU | 2770B | 2.25" (57.2mm) | 3.00" (76.2mm) | 3.00" (76.2mm) | 0.18" (4.57mm) | 60 psi |
| VIBRED4P-225300-3-RED | 2770R | 2.25" (57.2mm) | 3.00" (76.2mm) | 3.00" (76.2mm) | 0.18" (4.57mm) | 60 psi |
| VIBRED4P-250275-3-BLK | 2771 | 2.50" (63.5mm) | 2.75" (69.9mm) | 3.00" (76.2mm) | 0.18" (4.57mm) | 70 psi |
| VIBRED4P-250275-3-BLU | 2771B | 2.50" (63.5mm) | 2.75" (69.9mm) | 3.00" (76.2mm) | 0.18" (4.57mm) | 70 psi |
| VIBRED4P-250275-3-RED | 2771R | 2.50" (63.5mm) | 2.75" (69.9mm) | 3.00" (76.2mm) | 0.18" (4.57mm) | 70 psi |
| VIBRED4P-250300-3-BLK | 2772 | 2.50" (63.5mm) | 3.00" (76.2mm) | 3.00" (76.2mm) | 0.18" (4.57mm) | 60 psi |
| VIBRED4P-250300-3-BLU | 2772B | 2.50" (63.5mm) | 3.00" (76.2mm) | 3.00" (76.2mm) | 0.18" (4.57mm) | 60 psi |
| VIBRED4P-250300-3-RED | 2772R | 2.50" (63.5mm) | 3.00" (76.2mm) | 3.00" (76.2mm) | 0.18" (4.57mm) | 60 psi |
| VIBRED4P-250325-3-BLK | 2761 | 2.50" (63.5mm) | 3.25" (82.6mm) | 3.00" (76.2mm) | 0.18" (4.57mm) | 40 psi |
| VIBRED4P-250325-3-BLU | 2761B | 2.50" (63.5mm) | 3.25" (82.6mm) | 3.00" (76.2mm) | 0.18" (4.57mm) | 40 psi |
| VIBRED4P-250325-3-RED | 2761R | 2.50" (63.5mm) | 3.25" (82.6mm) | 3.00" (76.2mm) | 0.18" (4.57mm) | 40 psi |
| VIBRED4P-250350-3-BLK | 2764 | 2.50" (63.5mm) | 3.50" (88.9mm) | 3.00" (76.2mm) | 0.18" (4.57mm) | 40 psi |
| VIBRED4P-250350-3-BLU | 2764B | 2.50" (63.5mm) | 3.50" (88.9mm) | 3.00" (76.2mm) | 0.18" (4.57mm) | 40 psi |
| VIBRED4P-250350-3-RED | 2764R | 2.50" (63.5mm) | 3.50" (88.9mm) | 3.00" (76.2mm) | 0.18" (4.57mm) | 40 psi |
| VIBRED4P-275300-3-BLK | 2773 | 2.75" (69.9mm) | 3.00" (76.2mm) | 3.00" (76.2mm) | 0.18" (4.57mm) | 60 psi |
| VIBRED4P-275300-3-BLU | 2773B | 2.75" (69.9mm) | 3.00" (76.2mm) | 3.00" (76.2mm) | 0.18" (4.57mm) | 60 psi |
| VIBRED4P-275300-3-RED | 2773R | 2.75" (69.9mm) | 3.00" (76.2mm) | 3.00" (76.2mm) | 0.18" (4.57mm) | 60 psi |
| VIBRED4P-275325-3-BLK | 2834 | 2.75" (69.9mm) | 3.25" (82.6mm) | 3.00" (76.2mm) | 0.18" (4.57mm) | 40 psi |
| VIBRED4P-275325-3-BLU | 2834B | 2.75" (69.9mm) | 3.25" (82.6mm) | 3.00" (76.2mm) | 0.18" (4.57mm) | 400 psi |
| VIBRED4P-275325-3-RED | 2834R | 2.75" (69.9mm) | 3.25" (82.6mm) | 3.00" (76.2mm) | 0.18" (4.57mm) | 40 psi |
| VIBRED4P-300325-3-BLK | 2760 | 3.00" (76.2mm) | 3.25" (82.6mm) | 3.00" (76.2mm) | 0.18" (4.57mm) | 40 psi |
| VIBRED4P-300325-3-BLU | 2760B | 3.00" (76.2mm) | 3.25" (82.6mm) | 3.00" (76.2mm) | 0.18" (4.57mm) | 40 psi |
| VIBRED4P-300325-3-RED | 2760R | 3.00" (76.2mm) | 3.25" (82.6mm) | 3.00" (76.2mm) | 0.18" (4.57mm) | 40 psi |
| VIBRED4P-300350-3-BLK | 2774 | 3.00" (76.2mm) | 3.50" (88.9mm) | 3.00" (76.2mm) | 0.18" (4.57mm) | 40 psi |
| VIBRED4P-300350-3-BLU | 2774B | 3.00" (76.2mm) | 3.50" (88.9mm) | 3.00" (76.2mm) | 0.18" (4.57mm) | 40 psi |
| VIBRED4P-300350-3-RED | 2774R | 3.00" (76.2mm) | 3.50" (88.9mm) | 3.00" (76.2mm) | 0.18" (4.57mm) | 40 psi |
| VIBRED4P-300400-3-BLK | 2775 | 3.00" (76.2mm) | 4.00" (101.6mm) | 3.00" (76.2mm) | 0.18" (4.57mm) | 40 psi |
| VIBRED4P-300400-3-BLU | 2775B | 3.00" (76.2mm) | 4.00" (101.6mm) | 3.00" (76.2mm) | 0.18" (4.57mm) | 40 psi |
| VIBRED4P-300400-3-RED | 2775R | 3.00" (76.2mm) | 4.00" (101.6mm) | 3.00" (76.2mm) | 0.18" (4.57mm) | 40 psi |
| VIBRED4P-325350-3-BLK | 2835 | 3.25" (82.6mm) | 3.50" (88.9mm) | 3.00" (76.2mm) | 0.18" (4.57mm) | 40 psi |
| VIBRED4P-325350-3-BLU | 2835B | 3.25" (82.6mm) | 3.50" (88.9mm) | 3.00" (76.2mm) | 0.18" (4.57mm) | 40 psi |
| VIBRED4P-325350-3-RED | 2835R | 3.25" (82.6mm) | 3.50" (88.9mm) | 3.00" (76.2mm) | 0.18" (4.57mm) | 40 psi |
| VIBRED4P-325400-3-BLK | 2839 | 3.25" (82.6mm) | 4.00" (101.6mm) | 3.00" (76.2mm) | 0.18" (4.57mm) | 40 psi |
| VIBRED4P-325400-3-BLU | 2839B | 3.25" (82.6mm) | 4.00" (101.6mm) | 3.00" (76.2mm) | 0.18" (4.57mm) | 40 psi |
| VIBRED4P-325400-3-RED | 2839R | 3.25" (82.6mm) | 4.00" (101.6mm) | 3.00" (76.2mm) | 0.18" (4.57mm) | 40 psi |
| VIBRED4P-350400-3-BLK | 2776 | 3.50" (88.9mm) | 4.00" (101.6mm) | 3.00" (76.2mm) | 0.18" (4.57mm) | 40 psi |
| VIBRED4P-350400-3-BLU | 2776B | 3.50" (88.9mm) | 4.00" (101.6mm) | 3.00" (76.2mm) | 0.18" (4.57mm) | 40 psi |
| VIBRED4P-350400-3-RED | 2776R | 3.50" (88.9mm) | 4.00" (101.6mm) | 3.00" (76.2mm) | 0.18" (4.57mm) | 40 psi |
| VIBRED4P-350450-3-BLK | 2836 | 3.50" (88.9mm) | 4.50" (114.3mm) | 3.00" (76.2mm) | 0.18" (4.57mm) | 40 psi |
| VIBRED4P-350450-3-BLU | 2836B | 3.50" (88.9mm) | 4.50" (114.3mm) | 3.00" (76.2mm) | 0.18" (4.57mm) | 40 psi |
| VIBRED4P-350450-3-RED | 2836R | 3.50" (88.9mm) | 4.50" (114.3mm) | 3.00" (76.2mm) | 0.18" (4.57mm) | 40 psi |
| VIBRED4P-400450-3-BLK | 2837 | 4.00" (101.6mm) | 4.50" (114.3mm) | 3.00" (76.2mm) | 0.18" (4.57mm) | 40 psi |
| VIBRED4P-400450-3-BLU | 2837B | 4.00" (101.6mm) | 4.50" (114.3mm) | 3.00" (76.2mm) | 0.18" (4.57mm) | 40 psi |
| VIBRED4P-400450-3-RED | 2837R | 4.00" (101.6mm) | 4.50" (114.3mm) | 3.00" (76.2mm) | 0.18" (4.57mm) | 40 psi |
| VIBRED4P-400500-3-BLK | 2777 | 4.00" (101.6mm) | 5.00" (127.0mm) | 3.00" (76.2mm) | 0.18" (4.57mm) | 40 psi |
| VIBRED4P-400500-3-BLU | 2777B | 4.00" (101.6mm) | 5.00" (127.0mm) | 3.00" (76.2mm) | 0.18" (4.57mm) | 40 psi |
| VIBRED4P-400500-3-RED | 2777R | 4.00" (101.6mm) | 5.00" (127.0mm) | 3.00" (76.2mm) | 0.18" (4.57mm) | 40 psi |
| VIBRED4P-500600-3-BLK | 2833 | 5.00" (127.0mm) | 6.00" (152.4mm) | 3.50" (88.9mm) | 0.18" (4.57mm) | 40 psi |
| VIBRED4P-500600-3-BLU | 2833B | 5.00" (127.0mm) | 6.00" (152.4mm) | 3.50" (88.9mm) | 0.18" (4.57mm) | 40 psi |
