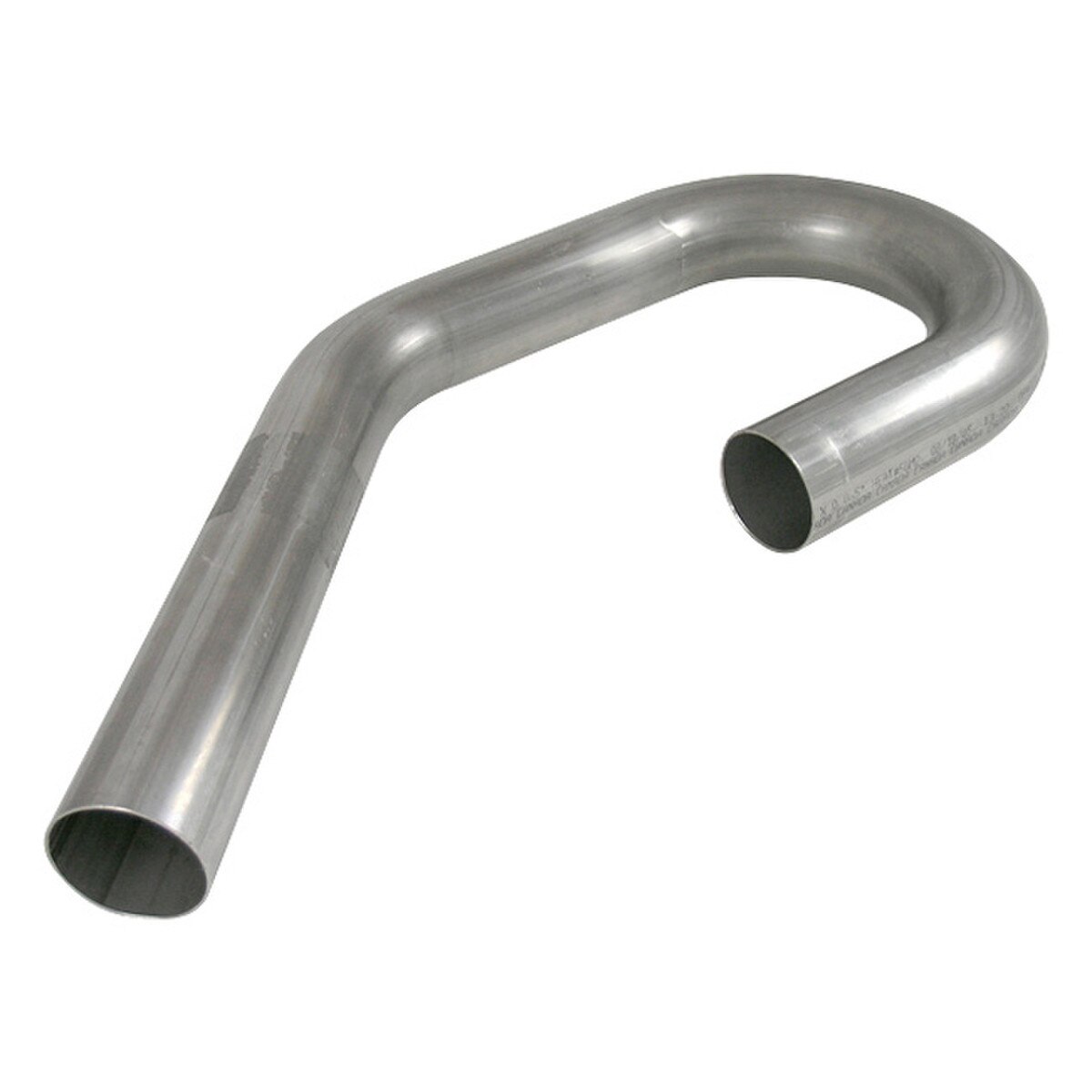

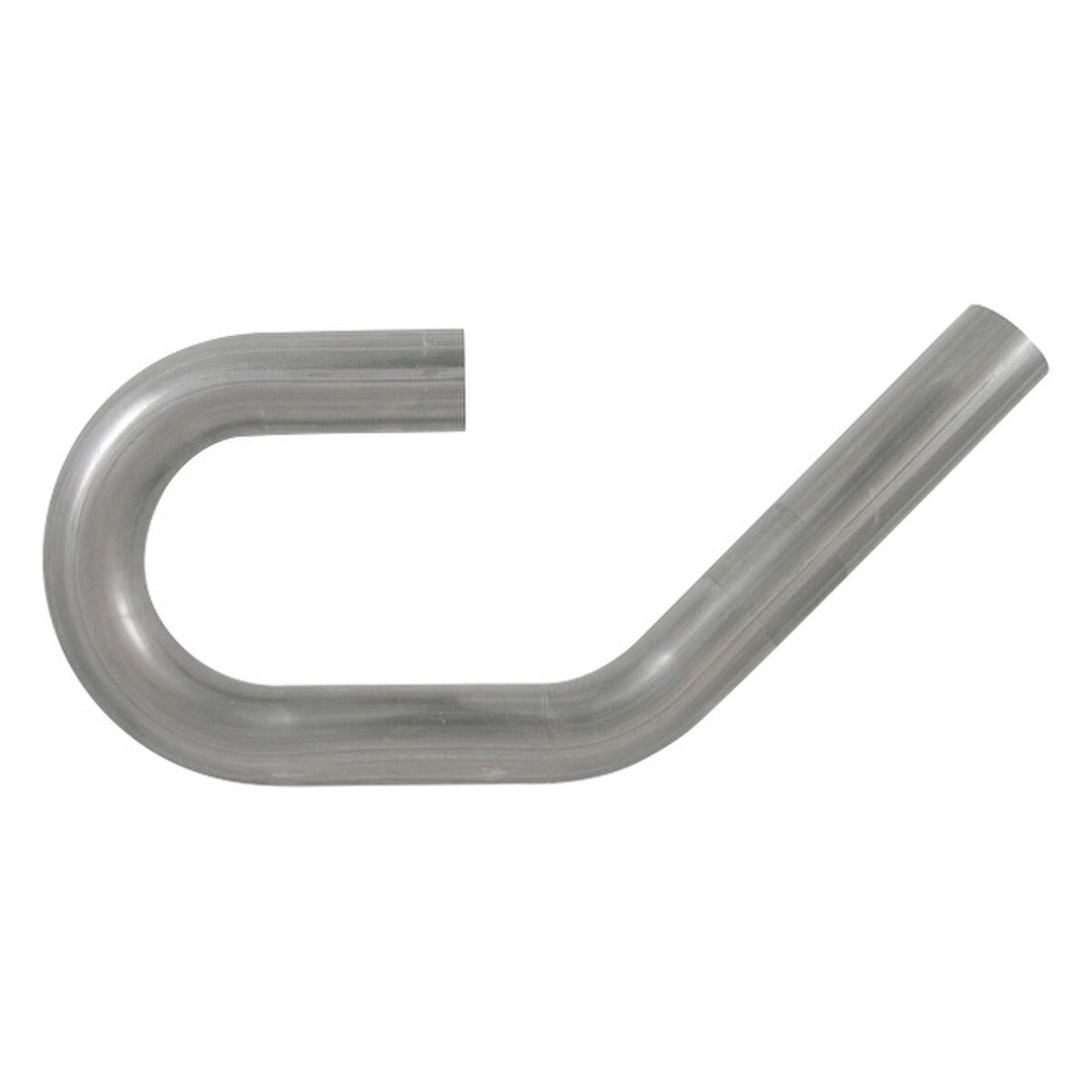

Vibrant U-J Combination Mandrel Bends, Aluminized Mild Steel
Vibrant U-J Combination Mandrel Bends feature a 180 degree U Bends, a 45 degree mandrel bend and straight tubing, giving you an economical solution when fabricating custom exhaust systems, intercooler pipes and headers. These Aluminized Mild Steel mandrel bends can yield up to 3 separate bends as well as straight sections. These high quality mild steel mandrel bends are smooth and true throughout.
 | |||||||
| VMS Part # | MFG Part # | Tube OD | Leg 1 (A) | Leg 2 (B) | Leg 3 (C) | Radius (R) | Tube Thick |
|---|---|---|---|---|---|---|---|
| VIBUJMS16-150300 | 12601 | 1.50" (38.1mm) | 5.00" (127.0mm) | 8.00" (203.2mm) | 8.00" (203.2mm) | 3.00" (76.2mm) | 16 ga. (0.065") |
| VIBUJMS16-175350 | 12603 | 1.75" (44.5mm) | 5.00" (127.0mm) | 7.00" (177.8mm) | 7.00" (177.8mm) | 3.50" (88.9mm) | 16 ga. (0.065") |
| VIBUJMS16-200400 | 12605 | 2.00" (50.8mm) | 4.00" (101.6mm) | 9.00" (228.6mm) | 12.00" (304.8mm) | 4.00" (101.6mm) | 16 ga. (0.065") |
| VIBUJMS16-225350 | 12607 | 2.25" (57.2mm) | 4.00" (101.6mm) | 8.00" (203.2mm) | 12.00" (304.8mm) | 3.50" (88.9mm) | 16 ga. (0.065") |
| VIBUJMS16-250425 | 12609 | 2.50" (63.5mm) | 5.00" (127.0mm) | 8.00" (203.2mm) | 12.00" (304.8mm) | 4.25" (108.0mm) | 16 ga. (0.065") |
| VIBUJMS16-300500 | 12611 | 3.00" (76.2mm) | 8.00" (203.2mm) | 10.00" (254.0mm) | 23.00" (584.2mm) | 5.00" (127.0mm) | 16 ga. (0.065") |
| VIBUJMS16-350500 | 12612 | 3.50" (88.9mm) | 7.00" (177.8mm) | 13.00" (330.2mm) | 21.00" (533.4mm) | 5.00" (127.0mm) | 16 ga. (0.065") |
