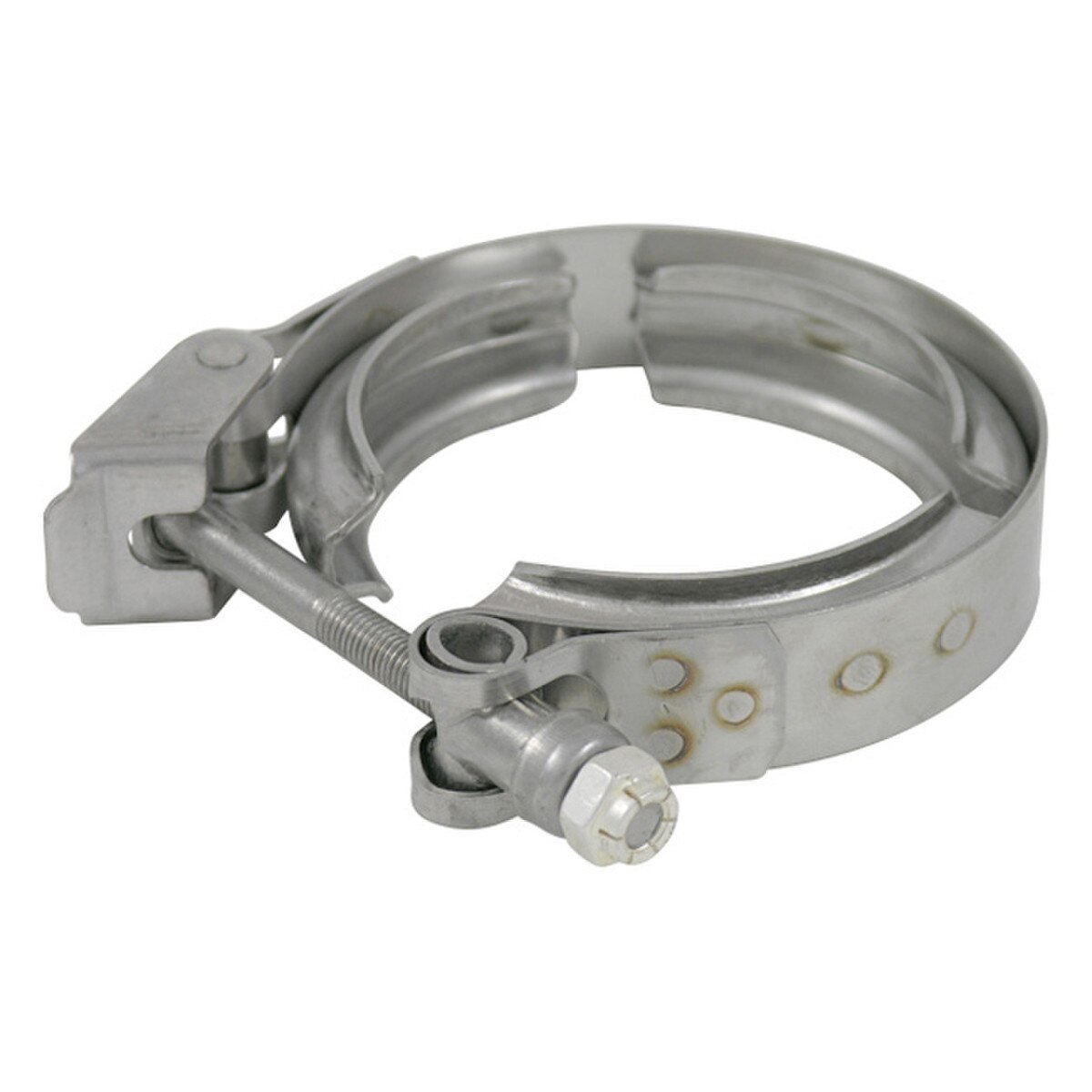

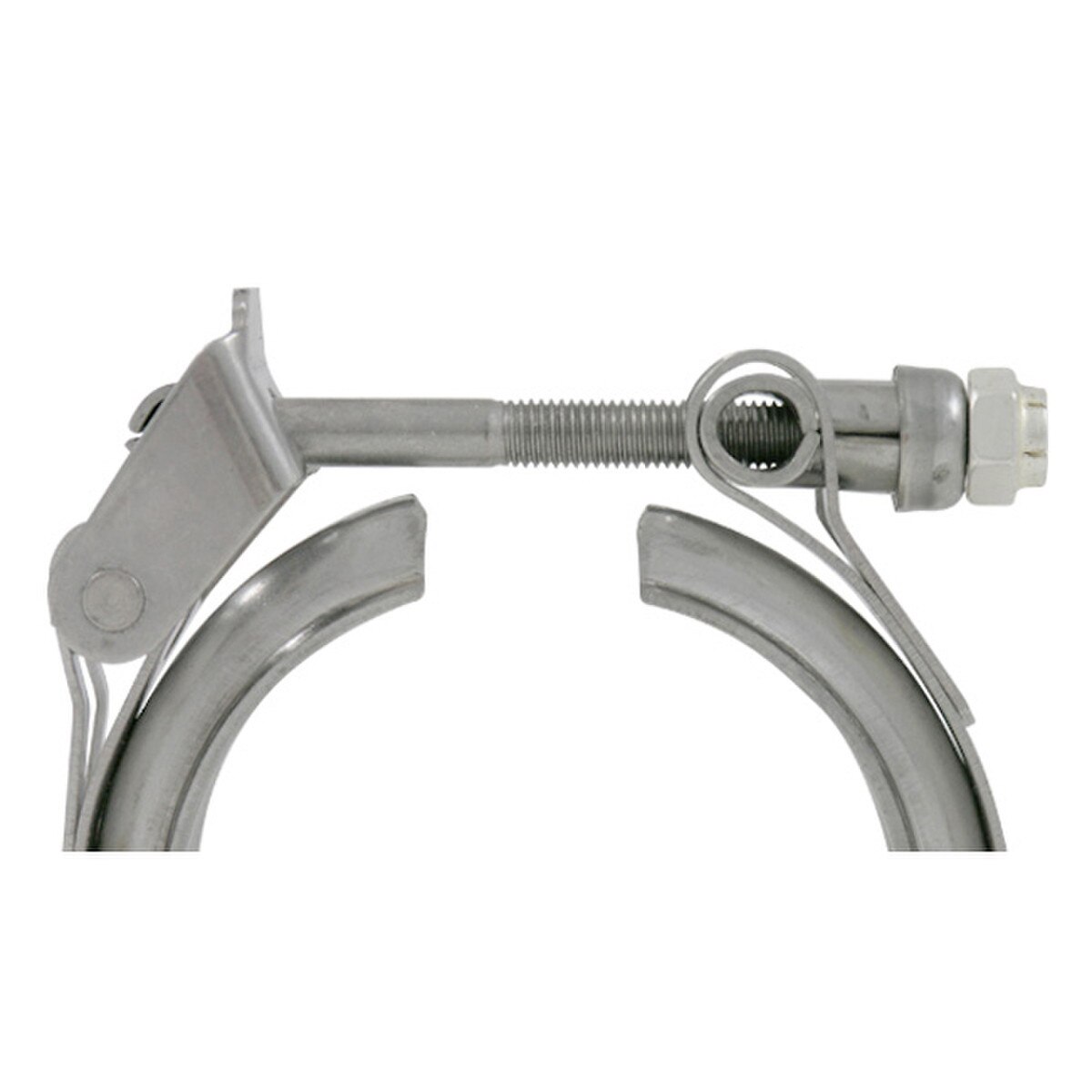

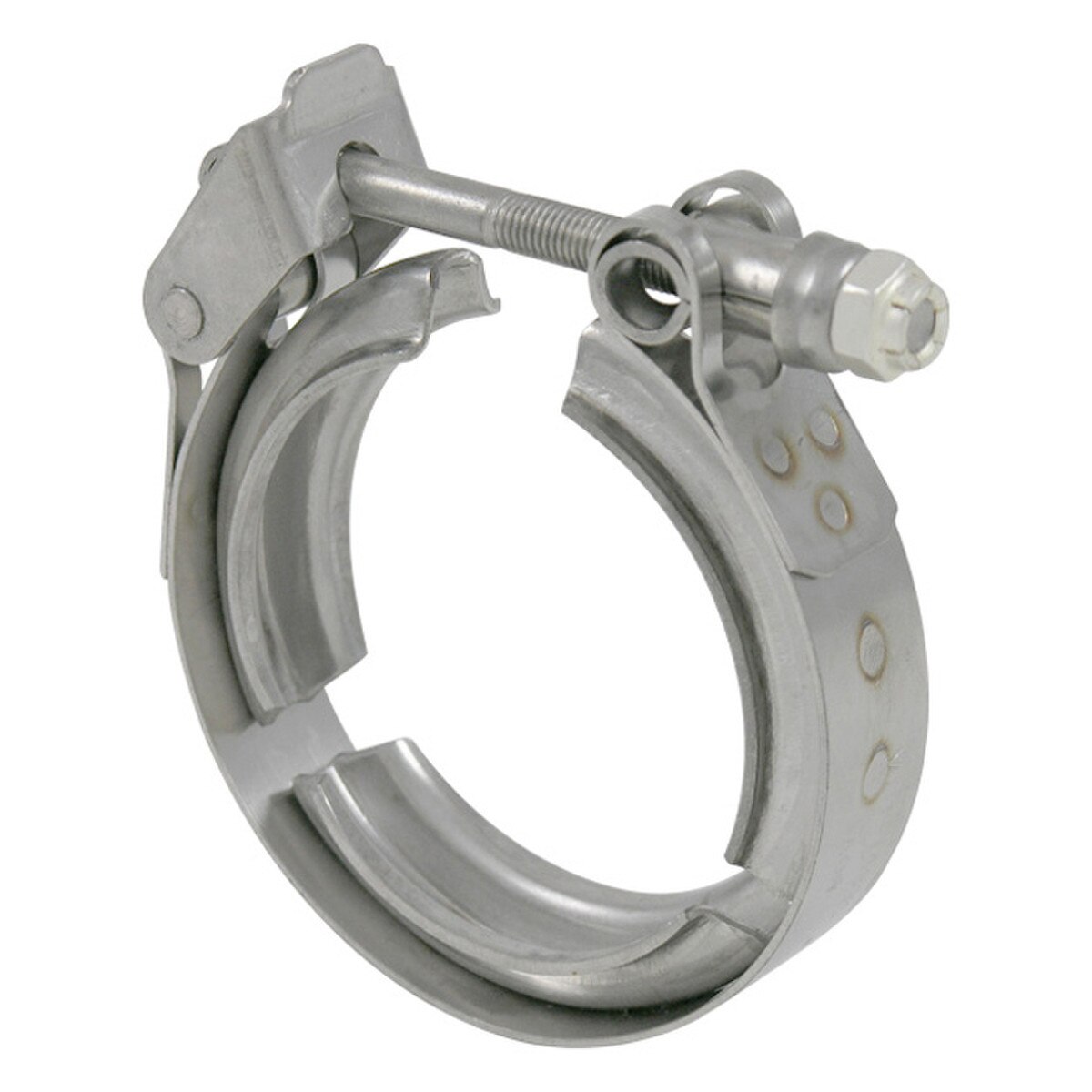

Vibrant V-Band Clamp - 300 Series Stainless Steel
The following variations of this item have been discontinued:
6"
Vibrant 300 Series Stainless Steel V-Band Clamps are for use with their V-Band flanges which utilize a unique "Male/Female" flange design that ensures proper alignment inside the clamp. V-Band flanges are an excellent alternative to traditional flanged or slip fit tube connections. V-Band clamps offer a low profile and modular connection. They work especially well under operating conditions involving stress, vibration, and significant temperature fluctuations. The V-Band flanges are secured with a quick release clamp and allow for a gasket free seal as well as superior positive retention compared to other tube coupling methods. Vibrant V-Band flanges are counterbored for the tubing size you select, making welding simple.
6"
Vibrant 300 Series Stainless Steel V-Band Clamps are for use with their V-Band flanges which utilize a unique "Male/Female" flange design that ensures proper alignment inside the clamp. V-Band flanges are an excellent alternative to traditional flanged or slip fit tube connections. V-Band clamps offer a low profile and modular connection. They work especially well under operating conditions involving stress, vibration, and significant temperature fluctuations. The V-Band flanges are secured with a quick release clamp and allow for a gasket free seal as well as superior positive retention compared to other tube coupling methods. Vibrant V-Band flanges are counterbored for the tubing size you select, making welding simple.
VMS Part # | MFG Part # | Fits Flange Size | Material |
---|---|---|---|
VIBVBCS-150 | 1486C | 1.50" (38.1mm) | 300 Series SS |
VIBVBCS-175 | 1487C | 1.75" (44.5mm) | 300 Series SS |
VIBVBCS-200 | 1488C | 2.00" (50.8mm) | 300 Series SS |
VIBVBCS-225 | 1489C | 2.25" (57.2mm) | 300 Series SS |
VIBVBCS-250 | 1490C | 2.38" & 2.50" (60.5mm & 63.5mm) | 300 Series SS |
VIBVBCS-300 | 1491C | 2.75" & 3.00" (69.9mm & 76.2mm) | 300 Series SS |
VIBVBCS-350 | 1492C | 3.50" (88.9mm) | 300 Series SS |
VIBVBCS-400 | 1493C | 4.00" (101.6mm) | 300 Series SS |
VIBVBCS-500 | 1494C | 5.00" (127.0mm) | 300 Series SS |
