Vibrant V-Band Flange/Clamp Assembly - Titanium Flanges
Vibrant Performance Titanium V-Band Clamp Assemblies utilize a unique "Male/Female" flange design that ensures proper alignment inside the clamp. V-Band flanges are an excellent alternative to traditional flanged or slip fit tube connections. V-Band clamps offer a low profile and modular connection. They work especially well under operating conditions involving stress, vibration, and significant temperature fluctuations. The V-Band flanges are secured with a quick release clamp and allow for a gasket free seal as well as superior positive retention compared to other tube coupling methods. Vibrant V-Band flanges are counterbored for the tubing size you select, making welding simple.

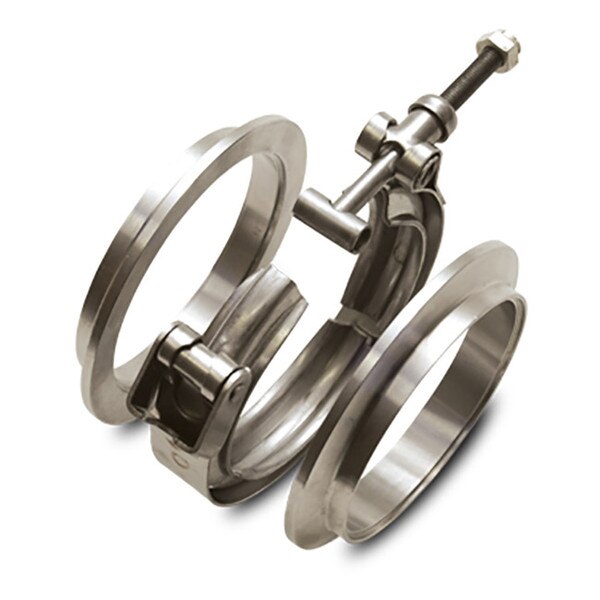

Vibrant Performance Titanium V-Band Clamp Kits include:
h4>- (1) Quick Release V-Band Clamp, 300 Series Stainless Steel

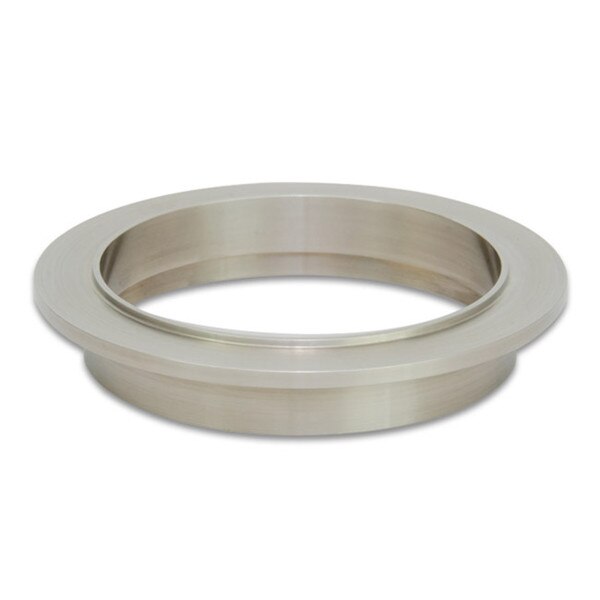

- (1) Male V-Band Flange, CP1 Titanium

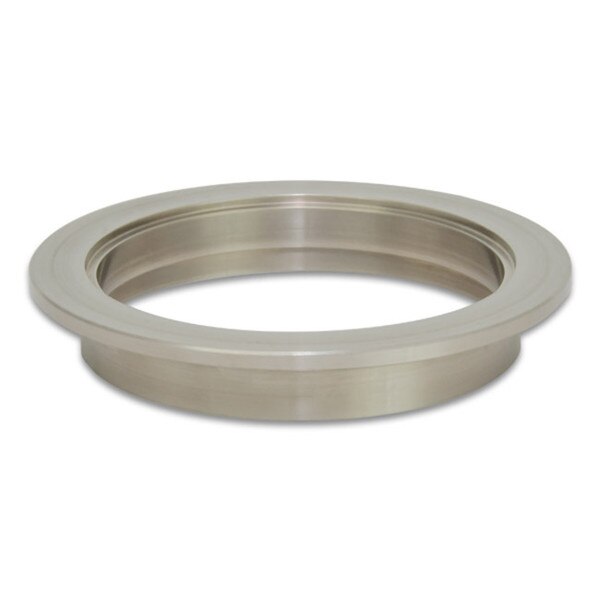

- (1) Female V-Band Flange, CP1 Titanium
 | |||||
| VMS Part # | MFG Part # | Tube Size (OD 1) | Flange OD (OD 2) | A | B |
|---|---|---|---|---|---|
| VIBTI-VBK-200 | 12488 | 2.00" (50.8mm) | TBD | TBD | TBD |
| VIBTI-VBK-300 | 12491 | 3.00" (76.2mm) | 3.78" (96mm) | 0.55" (14.0mm) | 0.55" (14.0mm) |
| VIBTI-VBK-350 | 12492 | 3.50" (88.9mm) | 4.13" (105mm) | 0.57" (14.5mm) | 0.57" (14.5mm) |
| VIBTI-VBK-400 | 12493 | 4.00" (101.6mm) | 4.61" (117mm) | 0.58" (14.7mm) | 0.58" (14.7mm) |
| VIBTI-VBK-500 | 12494 | 5.00" (127.0mm) | TBD | TBD | TBD |
