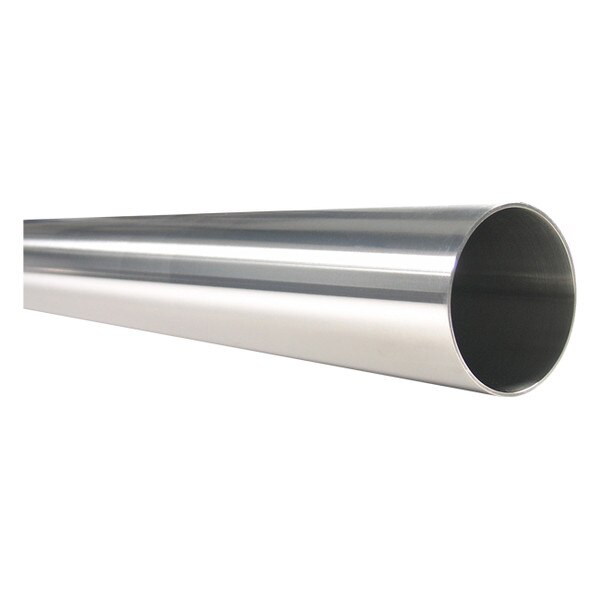

1/2" OD 3A Polished Stainless Steel Tubing, 316L, Seamless, 16 Gauge (.065") - 20' Length
PLEASE NOTE: This length of Stainless Steel Exhaust Tubing exceeds the acceptable length allowed by the US Postal Service and UPS. Please contact us to make shipping arrangements. This tubing must go common carrier and you must be able to accept a tractor trailer shipment in order to buy 20 foot lengths.
20' length of 1/2" OD 3A Polished Stainless Steel Seamless Tubing with a 16 gauge (0.065") wall. This polished tubing undergoes multiple passes through the polishing heads to remove any unwanted residue, resulting in a mechanically polished 20Ra Max inner diameter (ID) and 32Ra Max outer diameter (OD). The resulting product meets or exceeds both ASTM A270-S2 and 3A specifications.
This tubing undergoes a rigorous quality inspection, including destructive and non-destructive examination, at the mill prior to shipment. This 9 point quality inspection examines:
- Strength - Tensile, Burst
- Hardness - Rockwell, Micro
- Soundness - Eddy Current, Ultrasonic, X-Ray
- Leak & Strength - Hydrostatic
- Leak - Air Under Water, Pressure Decay
- Bend Testing - Reverse Bending, Flattening, Reverse Flattening, Flange
- Dimensional - OD, Wall, Straightness
- Metallurgical - Grain Size, Sensitization, Corrosion, Phase Balance/Intermetallic, Metallographic
Call regarding any bulk orders greater than 100'.
| 3A Dimensional Tolerances | ||||
|---|---|---|---|---|
| Size | Nom. Wall | O.D. | Length | Wall |
| 1/2" (12.7mm) | 0.065" (1.65mm) | ± 0.005" (0.13mm) | ± 1/16" (1.59mm) | ± 10.0% |
| 3/4" (19.1mm) | 0.065" (1.65mm) | ± 0.005" (0.13mm) | ± 1/16" (1.59mm) | ± 10.0% |
| 1" (25.4mm) | 0.065" (1.65mm) | ± 0.005" (0.13mm) | ± 1/16" (1.59mm) | ± 10.0% |
| 1-1/2" (38.1mm) | 0.065" (1.65mm) | ± 0.008" (0.20mm) | ± 1/16" (1.59mm) | ± 10.0% |
| 2" (50.8mm) | 0.065" (1.65mm) | ± 0.008" (0.20mm) | ± 1/16" (1.59mm) | ± 10.0% |
| 2-1/2" (63.5mm) | 0.065" (1.65mm) | ± 0.010" (0.25mm) | ± 1/16" (1.59mm) | ± 10.0% |
| 3" (76.2mm) | 0.065" (1.65mm) | ± 0.010" (0.25mm) | ± 1/16" (1.59mm) | ± 10.0% |
| 4" (101.6mm) | 0.083" (2.11mm) | ± 0.015" (0.38mm) | ± 1/16" (1.59mm) | ± 10.0% |
| 6" (152.4mm) | 0.083" (2.11mm) | ± 0.030" (0.76mm) | ± 1/16" (1.59mm) | ± 10.0% |
| 6" (152.4mm) | 0.109" (2.77mm) | ± 0.030" (0.76mm) | ± 1/16" (1.59mm) | ± 10.0% |
| 8" (203.2mm) | 0.109" (2.77mm) | + 0.061" / - 0.031" (+ 0.76mm / - 0.79mm) | ± 1/16" (1.59mm) | ± 10.0% |
