Vibrant V-Band Flange/Clamp Assembly - Stainless Steel Flanges

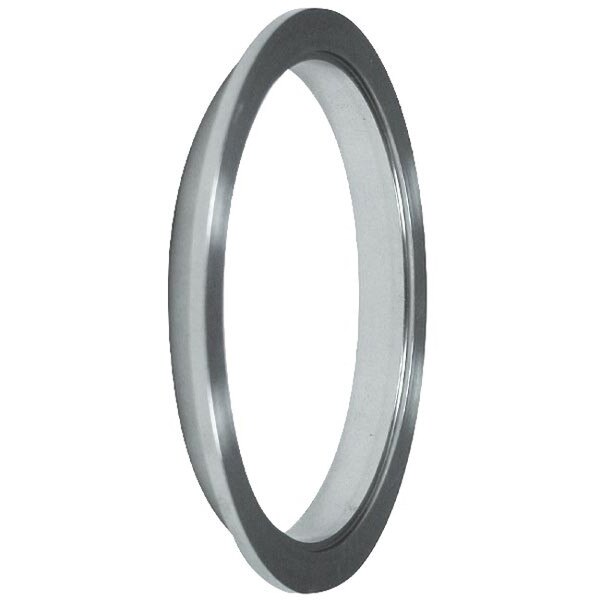

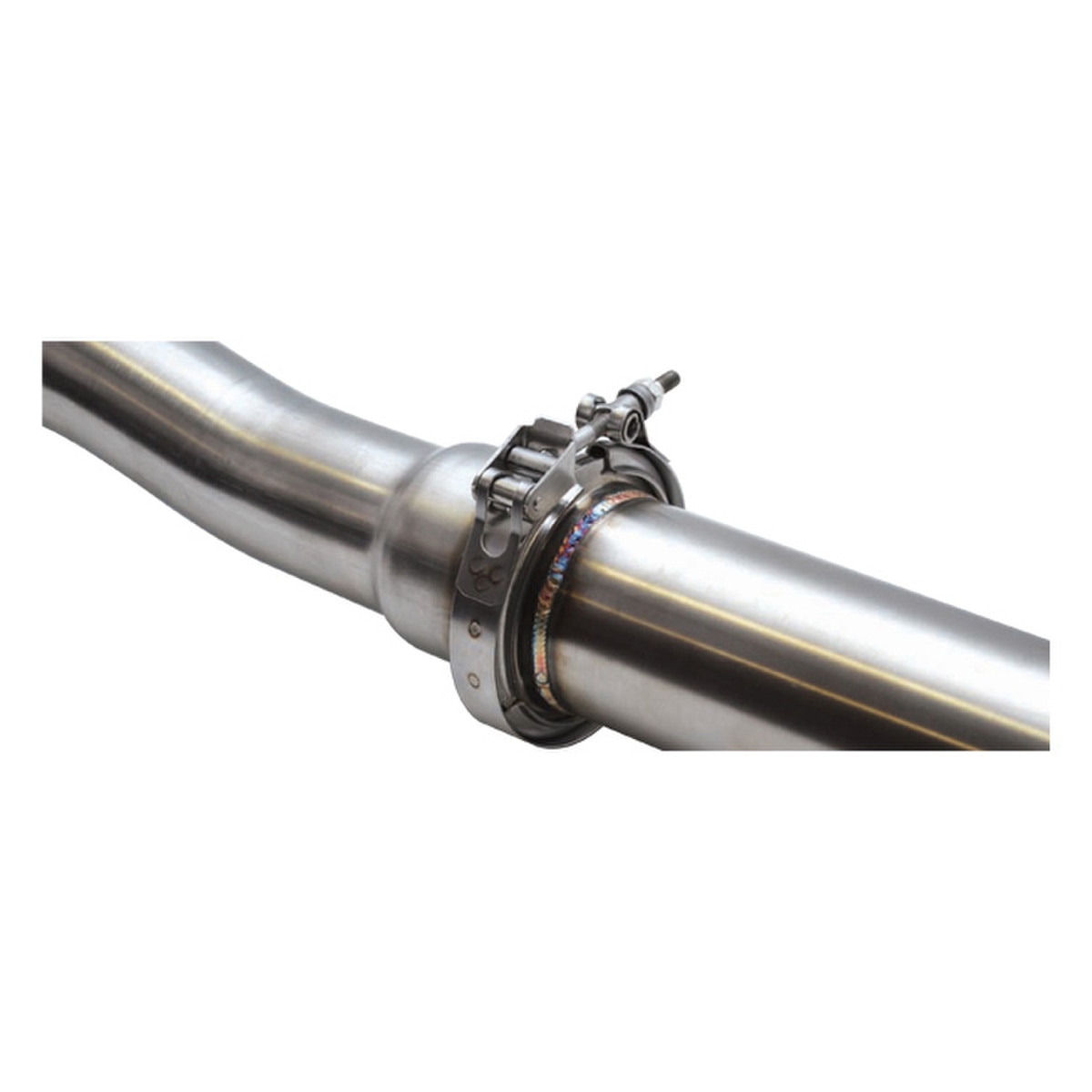

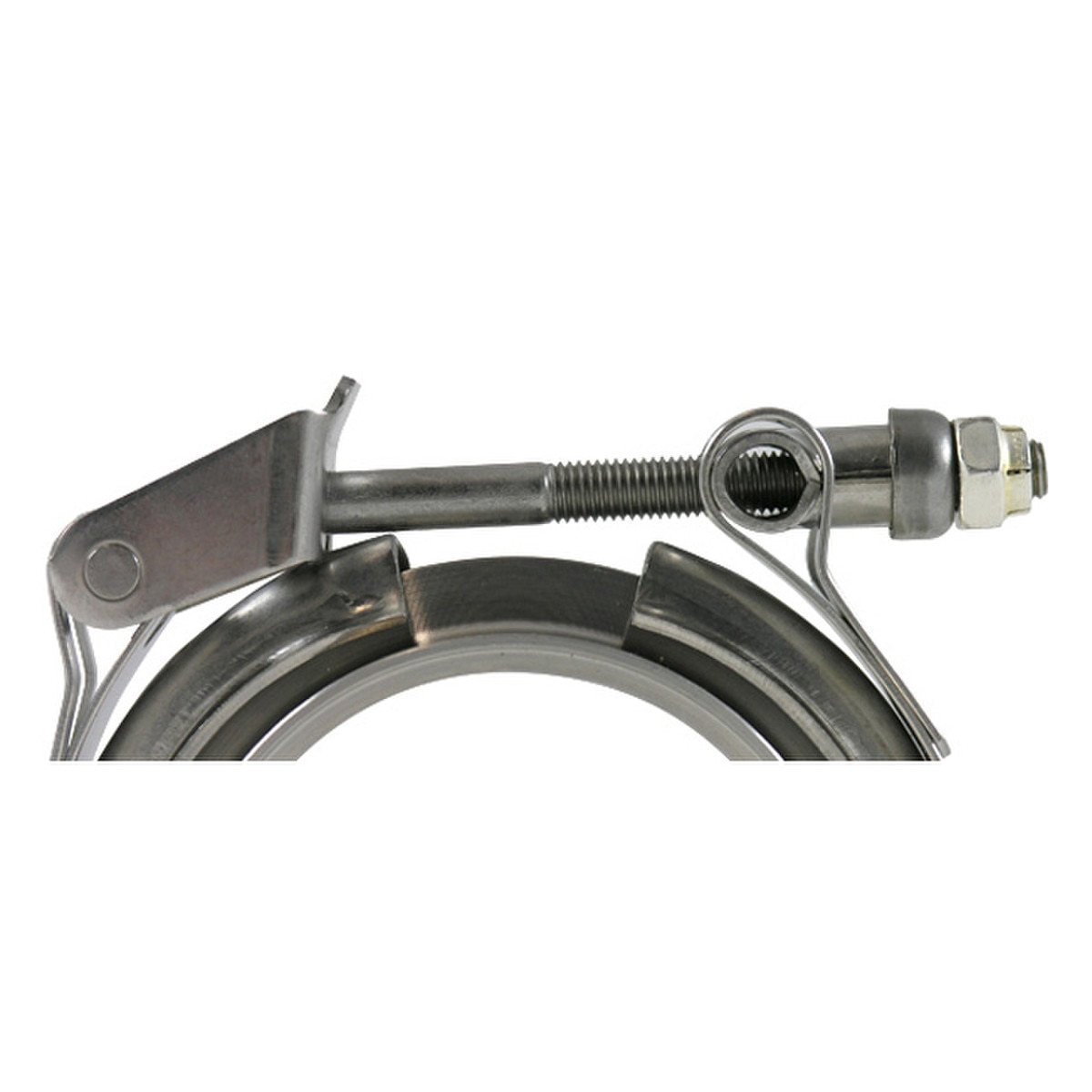

Vibrant Stainless Steel V-Band Clamp Assemblies utilize a unique "Male/Female" flange design that ensures proper alignment inside the clamp. V-Band flanges are an excellent alternative to traditional flanged or slip fit tube connections. V-Band clamps offer a low profile and modular connection. They work especially well under operating conditions involving stress, vibration, and significant temperature fluctuations. The V-Band flanges are secured with a quick release clamp and allow for a gasket free seal as well as superior positive retention compared to other tube coupling methods. Vibrant V-Band flanges are counterbored for the tubing size you select, making welding simple.

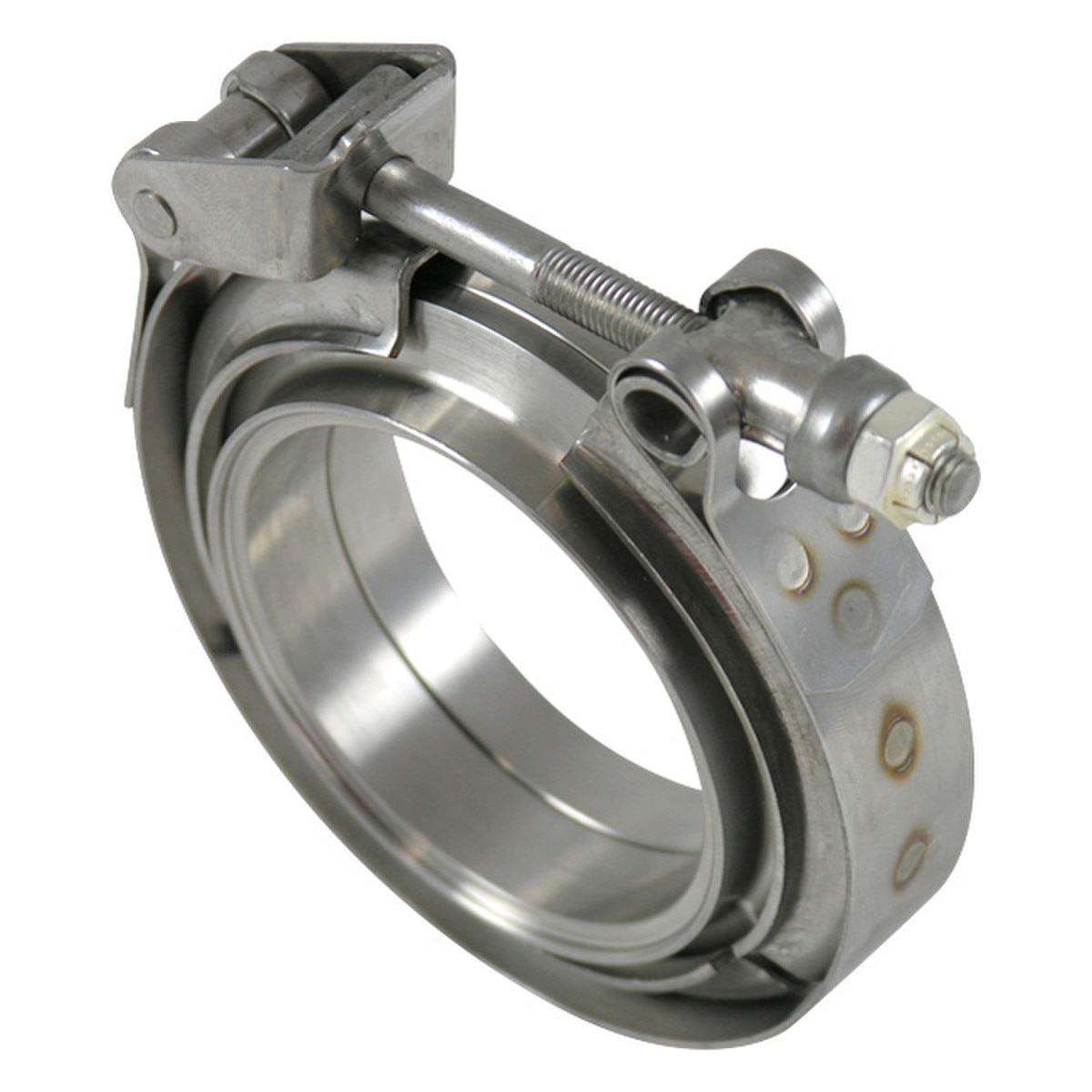

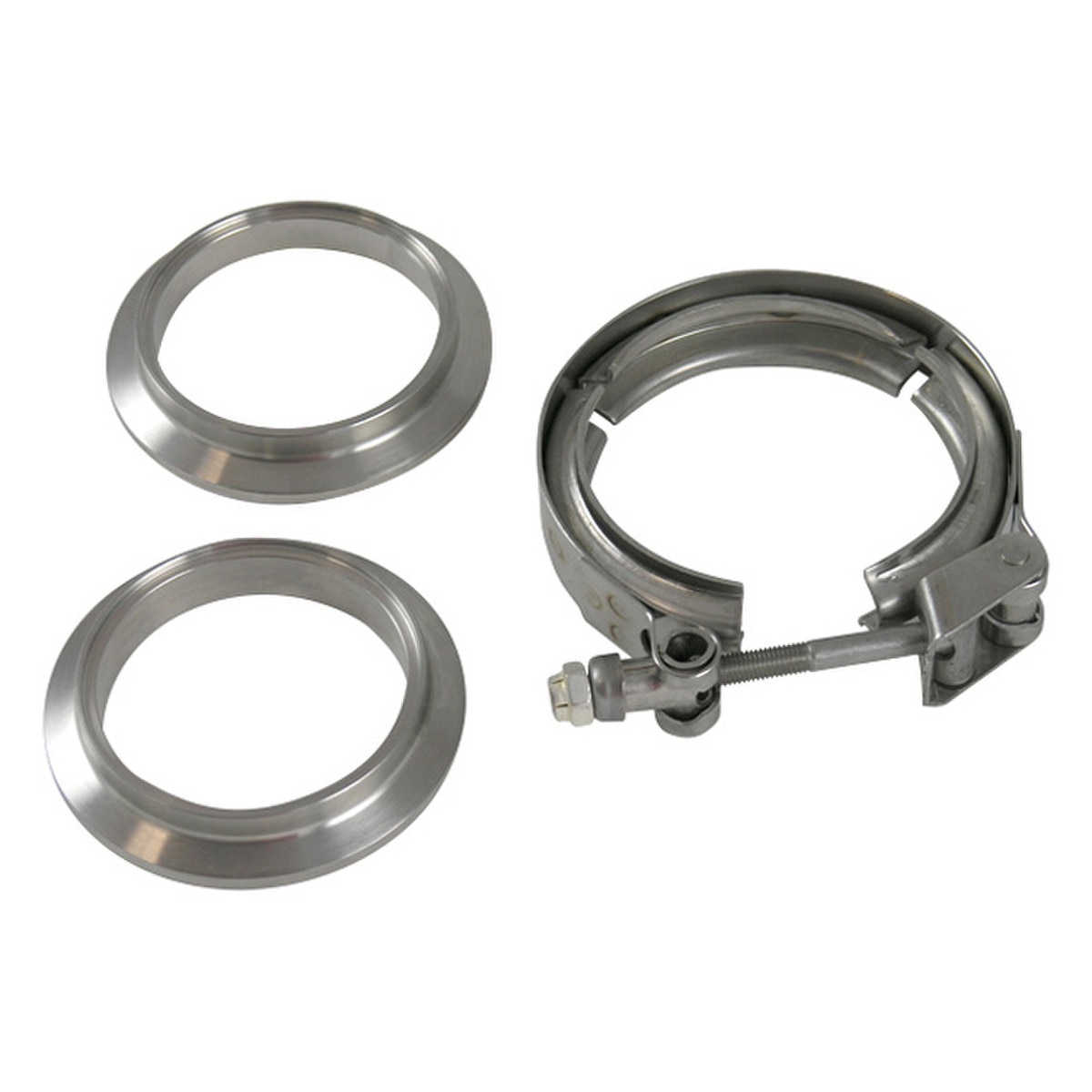

Vibrant Performance V-Band Clamp Kits include:
 | |||||
| VMS Part # | MFG Part # | Tube Size (OD 1) | Flange OD (OD 2) | A | B |
|---|---|---|---|---|---|
| VIBVBKS-150 | 1486 | 1.50" (38.1mm) | 2.05" (52mm) | 0.48" (12.2mm) | 0.48" (12.2mm) |
| VIBVBKS-175 | 1487 | 1.75" (44.5mm) | 2.32" (59mm) | 0.51" (13.0mm) | 0.51" (13.0mm) |
| VIBVBKS-200 | 1488 | 2.00" (50.8mm) | 2.56" (65mm) | 0.50" (12.7mm) | 0.50" (12.7mm) |
| VIBVBKS-225 | 1489 | 2.25" (57.2mm) | 2.80" (71mm) | 0.56" (14.2mm) | 0.56" (14.2mm) |
| VIBVBKS-238 | 1497 | 2.38" (60.5mm) | 3.19" (81mm) | 0.63" (16.0mm) | 0.63" (16.0mm) |
| VIBVBKS-250 | 1490 | 2.50" (63.5mm) | 3.19" (81mm) | 0.60" (15.2mm) | 0.60" (15.2mm) |
| VIBVBKS-275 | 1496 | 2.75" (69.9mm) | 3.78" (96mm) | 0.50" (12.7mm) | 0.50" (12.7mm) |
| VIBVBKS-300 | 1491 | 3.00" (76.2mm) | 3.78" (96mm) | 0.55" (14.0mm) | 0.55" (14.0mm) |
| VIBVBKS-350 | 1492 | 3.50" (88.9mm) | 4.13" (105mm) | 0.57" (14.5mm) | 0.57" (14.5mm) |
| VIBVBKS-400 | 1493 | 4.00" (101.6mm) | 4.61" (117mm) | 0.58" (14.7mm) | 0.58" (14.7mm) |
| VIBVBKS-500 | 1494 | 5.00" (127.0mm) | 5.75" (146mm) | 0.65" (16.5mm) | 0.65" (16.5mm) |
