Vibrant Single V-Band Flanges - Aluminum

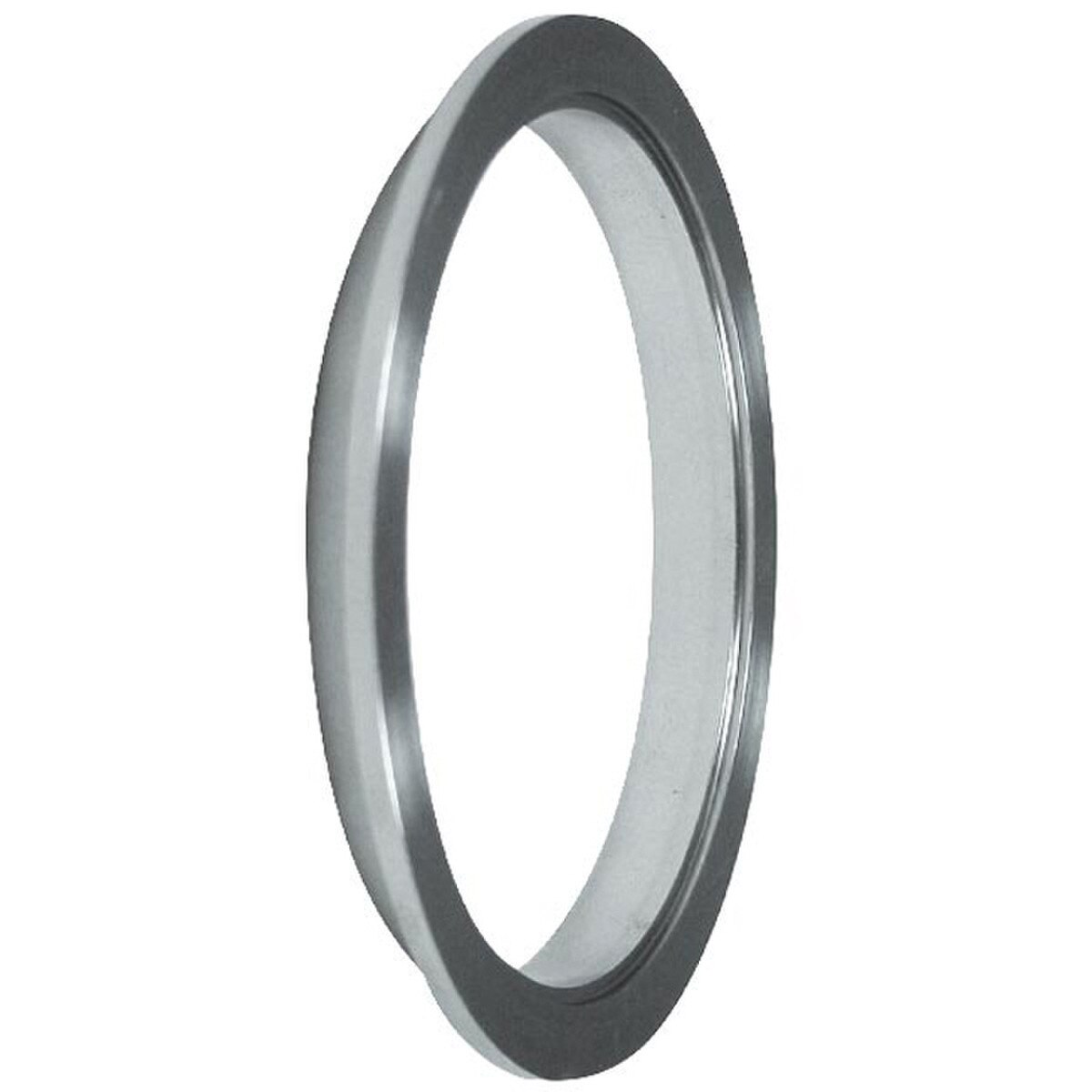

Vibrant Aluminum V-Band Flanges utilize a unique "Male/Female" flange design that ensures proper alignment inside the clamp. V-Band flanges are an excellent alternative to traditional flanged or slip fit tube connections. V-Band clamps offer a low profile and modular connection. They work especially well under operating conditions involving stress, vibration, and significant temperature fluctuations. The V-Band flanges are secured with a quick release clamp and allow for a gasket free seal as well as superior positive retention compared to other tube coupling methods. Vibrant V-Band flanges are counterbored for the tubing size you select, making welding simple.

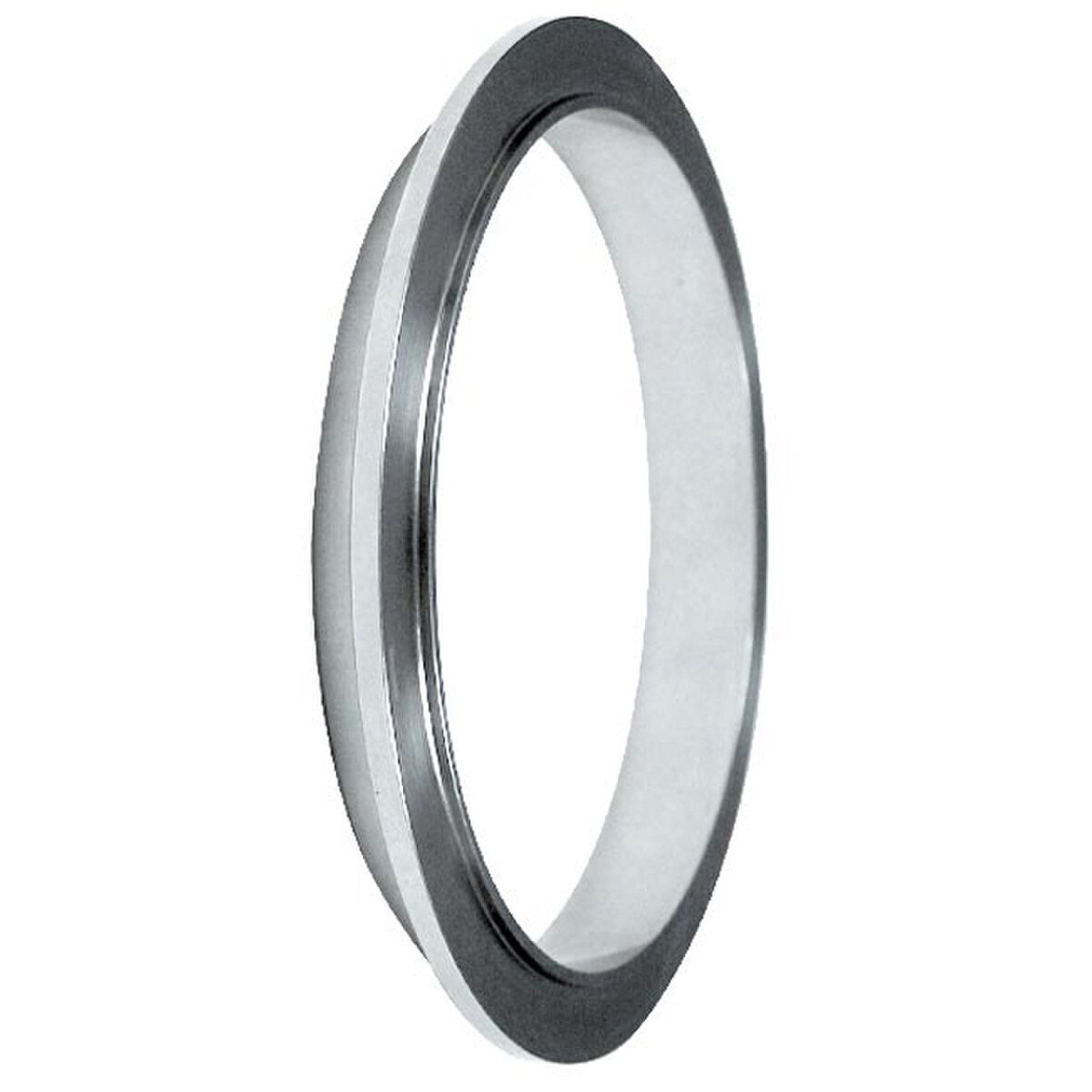

Female Flange is grooved for O-Ring and (1) Viton O-ring is included with the female flange only.
 | ||||||
| VMS Part # | MFG Part # | Style | Tube Size (OD 1) | Flange OD (OD 2) | A | B |
|---|---|---|---|---|---|---|
| VIBVBFA-200-F | 11488F | Female | 2.00" (50.8mm) | 2.56" (65mm) | 0.50" (12.7mm) | 0.50" (12.7mm) |
| VIBVBFA-200-M | 11488M | Male | 2.00" (50.8mm) | 2.56" (65mm) | 0.50" (12.7mm) | 0.50" (12.7mm) |
| VIBVBFA-250-F | 11490F | Female | 2.50" (63.5mm) | 3.19" (81mm) | 0.60" (15.2mm) | 0.60" (15.2mm) |
| VIBVBFA-250-M | 11490M | Male | 2.50" (63.5mm) | 3.19" (81mm) | 0.60" (15.2mm) | 0.60" (15.2mm) |
| VIBVBFA-300-F | 11491F | Female | 3.00" (76.2mm) | 3.78" (96mm) | 0.55" (14.0mm) | 0.55" (14.0mm) |
| VIBVBFA-300-M | 11491M | Male | 3.00" (76.2mm) | 3.78" (96mm) | 0.55" (14.0mm) | 0.55" (14.0mm) |
| VIBVBFA-350-F | 11492F | Female | 3.50" (88.9mm) | 4.13" (105mm) | 0.57" (14.5mm) | 0.57" (14.5mm) |
| VIBVBFA-350-M | 11492M | Male | 3.50" (88.9mm) | 4.13" (105mm) | 0.57" (14.5mm) | 0.57" (14.5mm) |
| VIBVBFA-400-F | 11493F | Female | 4.00" (101.6mm) | 4.61" (117mm) | 0.58" (14.7mm) | 0.58" (14.7mm) |
| VIBVBFA-400-M | 11493M | Male | 4.00" (101.6mm) | 4.61" (117mm) | 0.58" (14.7mm) | 0.58" (14.7mm) |
