Vibrant Single V-Band Flanges - 304 Stainless Steel

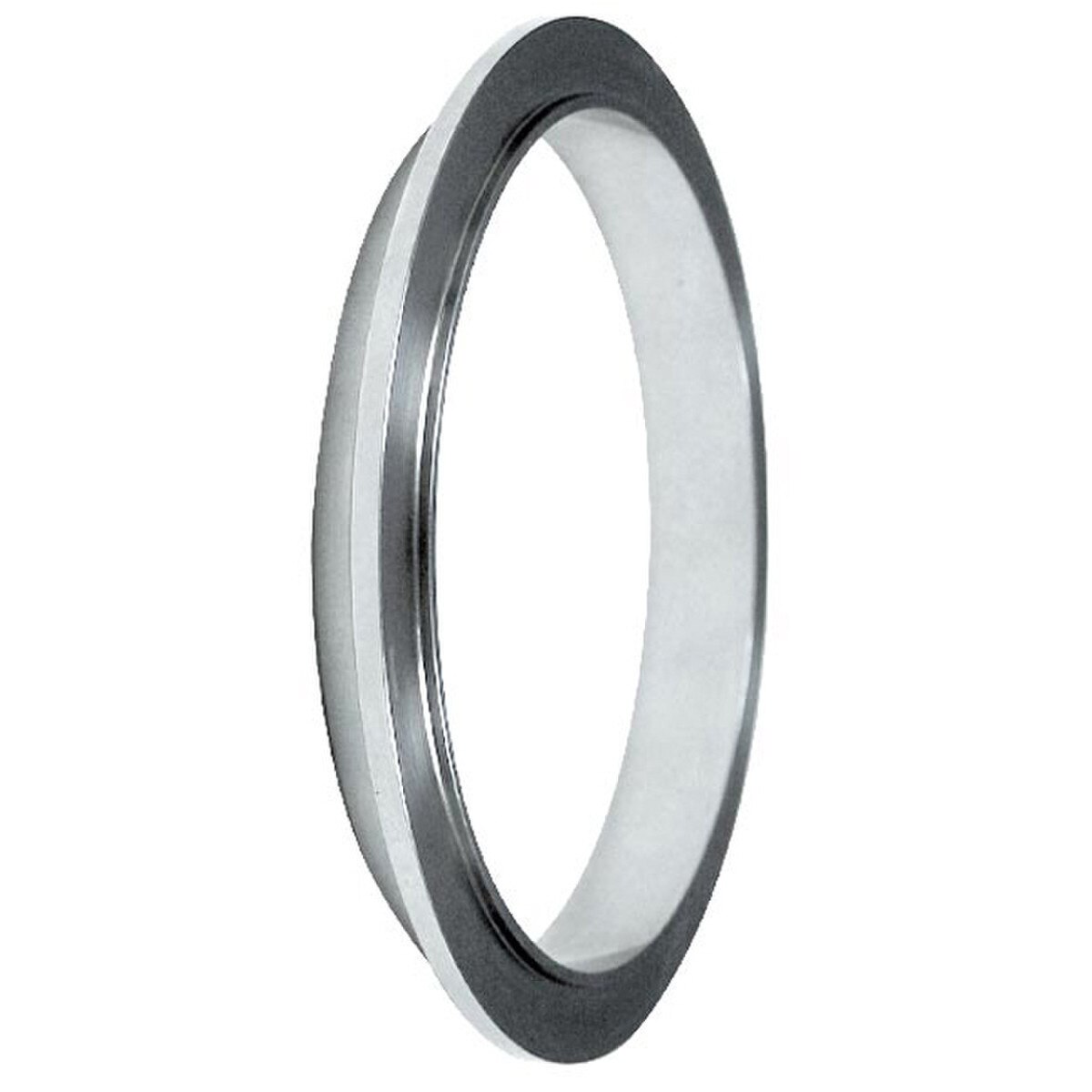

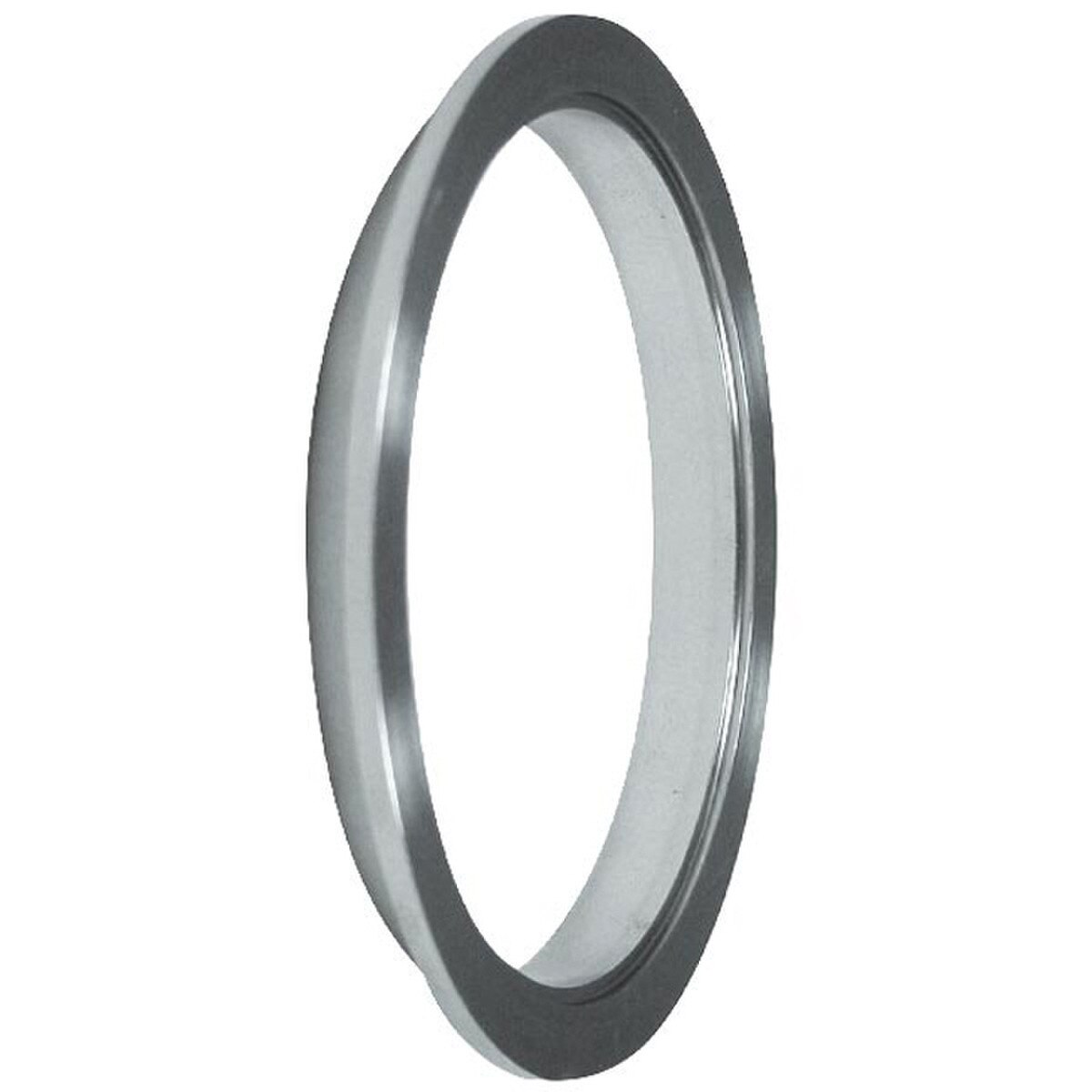

Vibrant Stainless Steel V-Band Flanges utilize a unique "Male/Female" flange design that ensures proper alignment inside the clamp. V-Band flanges are an excellent alternative to traditional flanged or slip fit tube connections. V-Band clamps offer a low profile and modular connection. They work especially well under operating conditions involving stress, vibration, and significant temperature fluctuations. The V-Band flanges are secured with a quick release clamp and allow for a gasket free seal as well as superior positive retention compared to other tube coupling methods. Vibrant V-Band flanges are counterbored for the tubing size you select, making welding simple.
 | ||||||
| VMS Part # | MFG Part # | Style | Tube Size (OD 1) | Flange OD (OD 2) | A | B |
|---|---|---|---|---|---|---|
| VIBVBFS-150-F | 1486F | Female | 1.50" (38.1mm) | 2.05" (52mm) | 0.48" (12.2mm) | 0.48" (12.2mm) |
| VIBVBFS-150-M | 1486M | Male | 1.50" (38.1mm) | 2.05" (52mm) | 0.48" (12.2mm) | 0.48" (12.2mm) |
| VIBVBFS-175-F | 1487F | Female | 1.75" (44.5mm) | 2.32" (59mm) | 0.51" (13.0mm) | 0.51" (13.0mm) |
| VIBVBFS-175-M | 1487M | Male | 1.75" (44.5mm) | 2.32" (59mm) | 0.51" (13.0mm) | 0.51" (13.0mm) |
| VIBVBFS-200-F | 1488F | Female | 2.00" (50.8mm) | 2.56" (65mm) | 0.50" (12.7mm) | 0.50" (12.7mm) |
| VIBVBFS-200-M | 1488M | Male | 2.00" (50.8mm) | 2.56" (65mm) | 0.50" (12.7mm) | 0.50" (12.7mm) |
| VIBVBFS-225-F | 1489F | Female | 2.25" (57.2mm) | 2.80" (71mm) | 0.50" (12.7mm) | 0.50" (12.7mm) |
| VIBVBFS-225-M | 1489M | Male | 2.25" (57.2mm) | 2.80" (71mm) | 0.50" (12.7mm) | 0.50" (12.7mm) |
| VIBVBFS-238-F | 1497F | Female | 2.38" (60.5mm) | 3.19" (81mm) | 0.63" (16.0mm) | 0.63" (16.0mm) |
| VIBVBFS-238-M | 1497M | Male | 2.38" (60.5mm) | 3.19" (81mm) | 0.63" (16.0mm) | 0.63" (16.0mm) |
| VIBVBFS-250-F | 1490F | Female | 2.50" (63.5mm) | 3.19" (81mm) | 0.60" (15.2mm) | 0.60" (15.2mm) |
| VIBVBFS-250-M | 1490M | Male | 2.50" (63.5mm) | 3.19" (81mm) | 0.60" (15.2mm) | 0.60" (15.2mm) |
| VIBVBFS-275-F | 1496F | Female | 2.75" (69.9mm) | 3.78" (96mm) | 0.50" (12.7mm) | 0.50" (12.7mm) |
| VIBVBFS-275-M | 1496M | Male | 2.75" (69.9mm) | 3.78" (96mm) | 0.50" (12.7mm) | 0.50" (12.7mm) |
| VIBVBFS-300-F | 1491F | Female | 3.00" (76.2mm) | 3.78" (96mm) | 0.55" (14.0mm) | 0.55" (14.0mm) |
| VIBVBFS-300-M | 1491M | Male | 3.00" (76.2mm) | 3.78" (96mm) | 0.55" (14.0mm) | 0.55" (14.0mm) |
| VIBVBFS-350-F | 1492F | Female | 3.50" (88.9mm) | 4.13" (105mm) | 0.57" (14.5mm) | 0.57" (14.5mm) |
| VIBVBFS-350-M | 1492M | Male | 3.50" (88.9mm) | 4.13" (105mm) | 0.57" (14.5mm) | 0.57" (14.5mm) |
| VIBVBFS-400-F | 1493F | Female | 4.00" (101.6mm) | 4.61" (117mm) | 0.58" (14.7mm) | 0.58" (14.7mm) |
| VIBVBFS-400-M | 1493M | Male | 4.00" (101.6mm) | 4.61" (117mm) | 0.58" (14.7mm) | 0.58" (14.7mm) |
| VIBVBFS-500-F | 1494F | Female | 5.00" (127.0mm) | 5.75" (146mm) | 0.65" (16.5mm) | 0.65" (16.5mm) |
| VIBVBFS-500-M | 1494M | Male | 5.00" (127.0mm) | 5.75" (146mm) | 0.65" (16.5mm) | 0.65" (16.5mm) |
