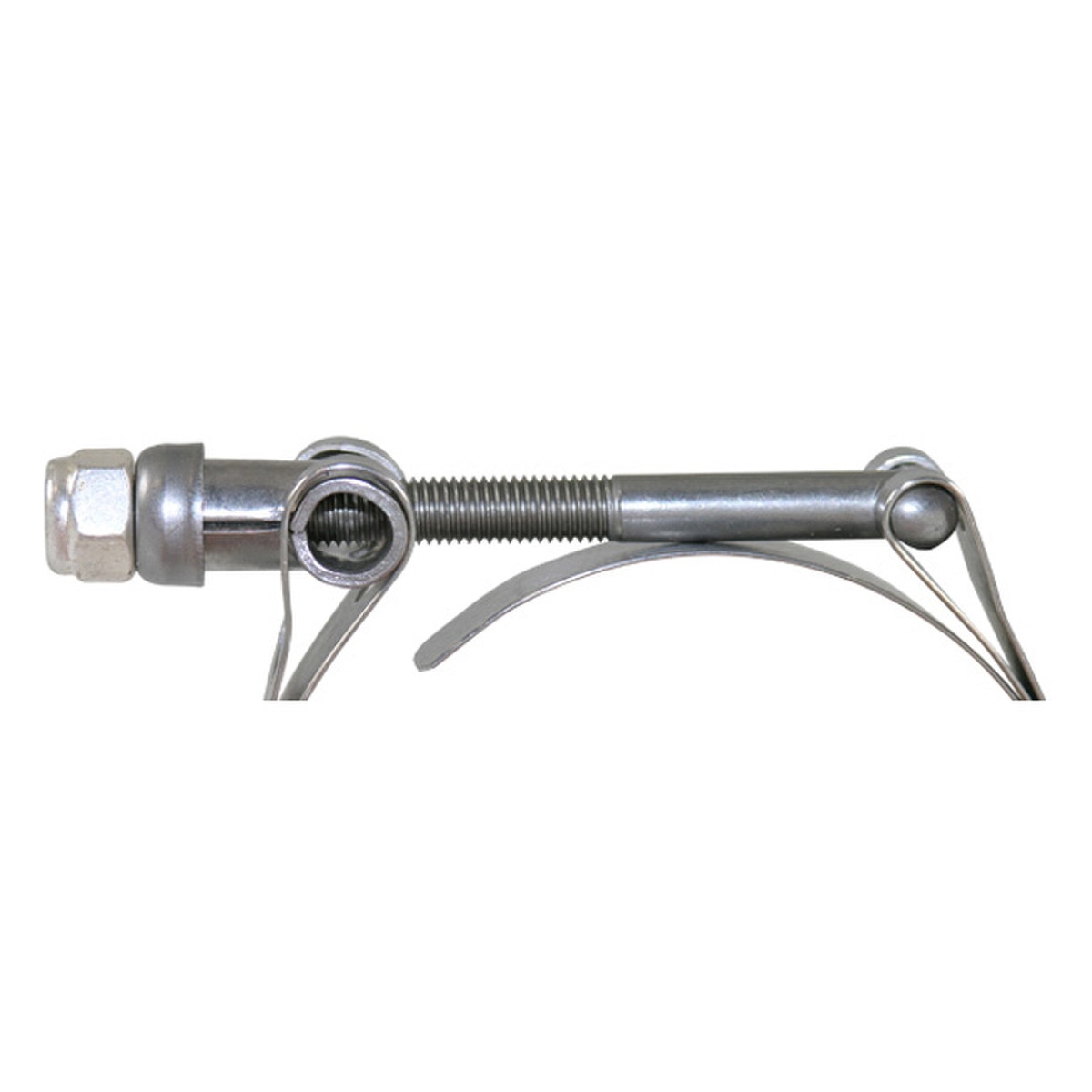

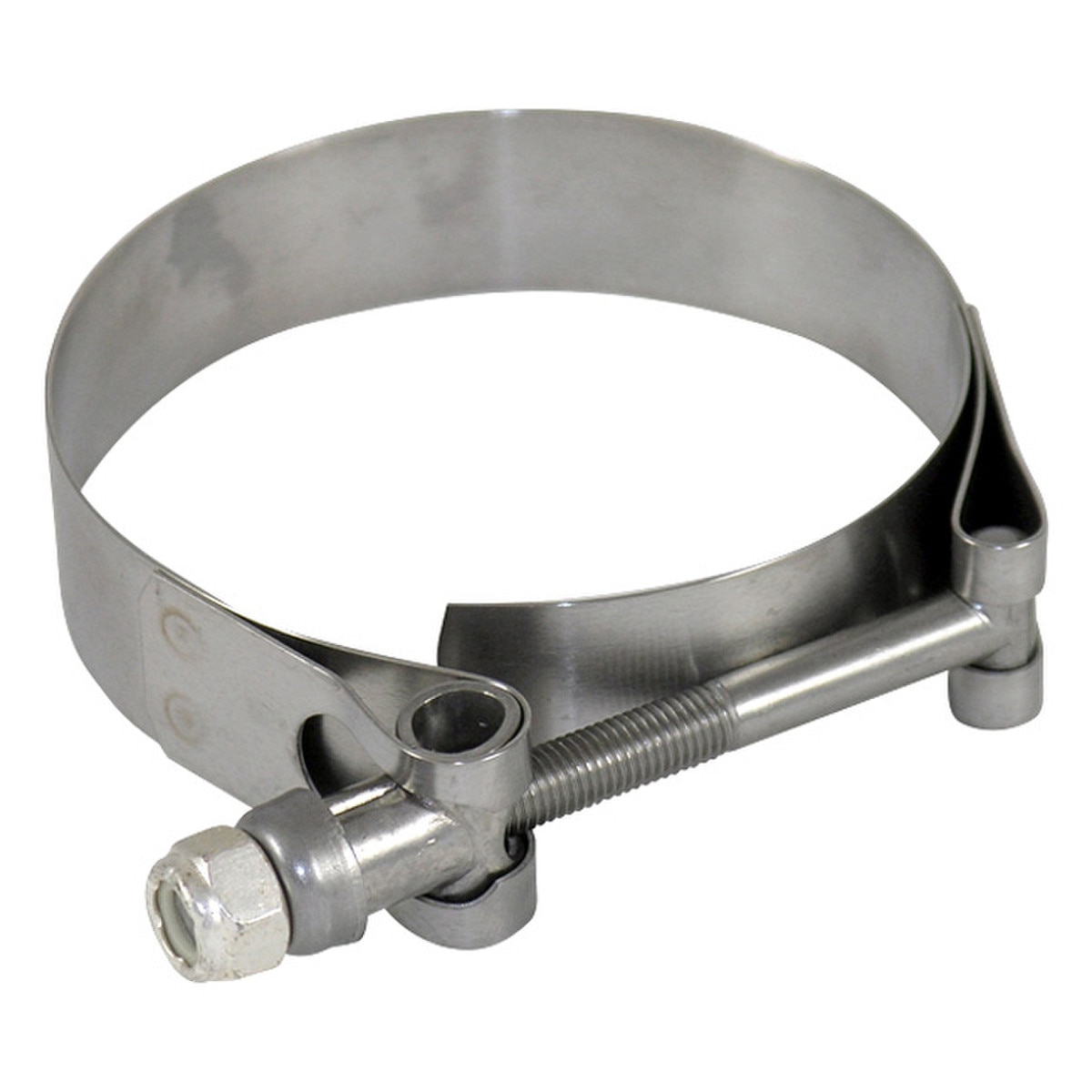

T-Bolt Hose Clamp - Stainless Steel
T-Bolt Clamps are 100% stainless steel band clamps that provide a leak-proof connections in a wide variety of high demand applications. T-bolt clamps provide higher tensile strength, durability, and corrosion resistance than typical worm gear or liner clamps.
Because of their superior design, T-bolt clamps are the perfect choice for medium and heavy-duty applications. T-bolt band clamps are ideal for high-pressure turbocharger applications, as well as air-intake and coolant systems for high performance vehicles, construction equipment, truck & bus engines, or any other hose applications. Please reference the below chart for clamping ranges.
All sizes of these Tbolt Clamps can be applied with a standard 7/16" socket for ease of installation. With a 0.025" thick and 3/4" wide band you can count on these clamps for years or trouble free service. All sizes have a torque rating of 50 in-lb.
| Part # | Fits Hose I.D. | Clamp Size | Min. Size | Max. Size |
|---|---|---|---|---|
| TBC-138 | 1" (25.4mm) | 1-3/8" (34.9mm) | 1-1/4" (31.8mm) | 1-1/2" (38.1mm) |
| TBC-162 | 1-1/4" (31.8mm) | 1-5/8" (41.3mm) | 1-1/2" (38.1mm) | 1-3/4" (44.5mm) |
| TBC-175 | 1-3/8" (34.9mm) | 1-3/4" (44.5mm) | 1-5/8" (41.3mm) | 1-7/8" (47.6mm) |
| TBC-188 | 1-1/2" (38.1mm) | 1-7/8" (47.6mm) | 1-3/4" (44.5mm) | 2" (50.8mm) |
| TBC-200 | 1-5/8" (41.3mm) | 2" (50.8mm) | 1-7/8" (47.6mm) | 2-1/8" (54.0mm) |
| TBC-212 | 1-3/4" (44.5mm) | 2-1/8" (54.0mm) | 1-15/16" (49.2mm) | 2-1/4" (57.2mm) |
| TBC-225 | 1-7/8" (47.6mm) | 2-1/4" (57.2mm) | 2-1/16" (52.4mm) | 2-3/8" (60.3mm) |
| TBC-238 | 2" (50.8mm) | 2-3/8" (60.3mm) | 2-3/16" (55.6mm) | 2-1/2" (63.5mm) |
| TBC-250 | 2-1/8" (54.0mm) | 2-1/2" (63.5mm) | 2-5/16" (58.7mm) | 2-5/8" (66.7mm) |
| TBC-262 | 2-1/4" (57.2mm) | 2-5/8" (66.7mm) | 2-7/16" (61.9mm) | 2-3/4" (69.9mm) |
| TBC-275 | 2-3/8" (60.3mm) | 2-3/4" (69.9mm) | 2-9/16" (65.1mm) | 2-7/8" (73.0mm) |
| TBC-288 | 2-1/2" (63.5mm) | 2-7/8" (73.0mm) | 2-21/32" (67.5mm) | 2-31/32" (75.4mm) |
| TBC-300 | 2-5/8" (66.7mm) | 3" (76.2mm) | 2-25/32" (70.6mm) | 3-3/32" (78.6mm) |
| TBC-312 | 2-3/4" (69.9mm) | 3-1/8" (79.4mm) | 2-29/32" (73.8mm) | 3-7/32" (81.8mm) |
| TBC-338 | 3" (76.2mm) | 3-3/8" (85.7mm) | 3-5/32" (80.2mm) | 3-15/32" (88.1mm) |
| TBC-350 | 3-1/8" (79.4mm) | 3-1/2" (88.9mm) | 3-9/32" (83.3mm) | 3-19/32" (91.3mm) |
| TBC-362 | 3-1/4" (82.6mm) | 3-5/8" (92.1mm) | 3-13/32" (86.5mm) | 3-23/32" (94.5mm) |
| TBC-388 | 3-1/2" (88.9mm) | 3-7/8" (98.4mm) | 3-21/32" (92.9mm) | 3-31/32" (100.8mm) |
| TBC-412 | 3-3/4" (95.3mm) | 4-1/8" (104.8mm) | 3-29/32" (99.2mm) | 4-7/32" (107.2mm) |
| TBC-438 | 4" (101.6mm) | 4-3/8" (111.1mm) | 4-5/32" (105.6mm) | 4-15/32" (113.5mm) |
| TBC-488 | 4-1/2" (114.3mm) | 4-7/8" (123.8mm) | 4-3/4" (120.7mm) | 5-1/16" (128.6mm) |
| TBC-550 | 5" (127.0mm) | 5-1/2" (139.7mm) | 5-7/25" (134.0mm) | 5-3/5" (142.0mm) |
