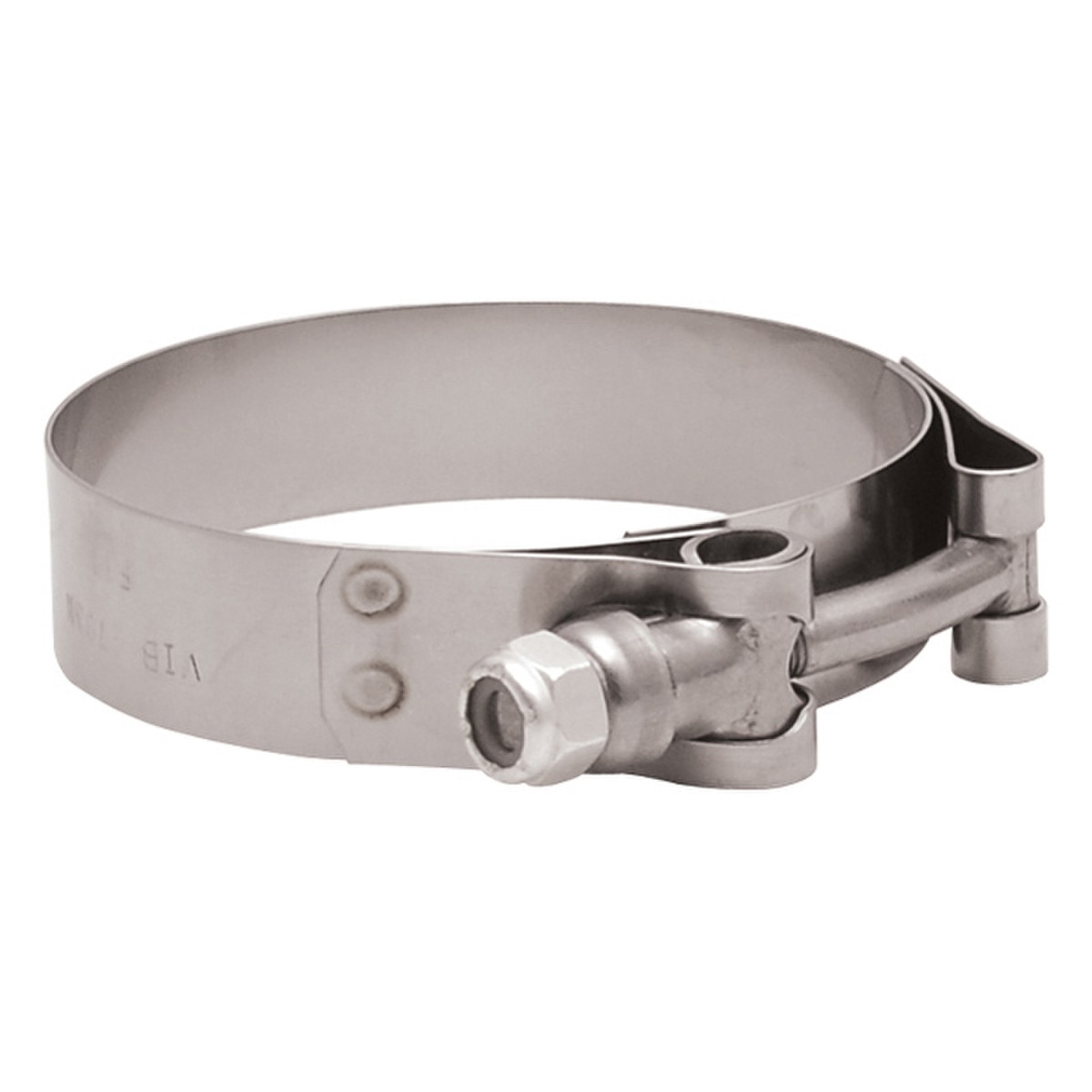

Vibrant T-Bolt Hose Clamp, Stainless Steel - 2 Pack
Vibrant Stainless Steel T-Bolt Clamps are the ultimate hose clamp for your silicone hoses. These hose clamps provide reliable, leak-proof connections for hose and tube assemblies. They offer superior tensile strength and durability compared to standard worm gear or liner clamps. Vibrant T-bolt band clamps are 3/4" wide, making them ideal for high-pressure turbocharger applications. Also well suited for air-intake and coolant systems on high performance vehicles, construction equipment, truck, and bus engines. Complete 300 series stainless steel construction, even the bolt and lock nut, for great corrosion resistance.
Each part includes two of the chosen clamp size. For correct fitment please choose clamps the same size as the I.D. of your hose couplings. For exact clamping ranges of each clamp please see the Specification Tab.
Note: If you intend to loosen and re-tighten your T-Bolt Clamps regularly, applying anti-seize lubricant to the threads will improve service life.
| VMS Part # | MFG Part # | Silicone Size | Clamp Range | Band Width |
|---|---|---|---|---|
| VIBTBC-100 | 2787 | 1.00" (25mm) | 1.25" - 1.60" (32mm - 41mm) | 3/4" (19mm) |
| VIBTBC-125 | 2788 | 1.25" (32mm) | 1.49" - 1.84" (38mm - 47mm) | 3/4" (19mm) |
| VIBTBC-150 | 2789 | 1.50" (38mm) | 1.75" - 2.10" (44mm - 53mm) | 3/4" (19mm) |
| VIBTBC-175 | 2790 | 1.75" (45mm) | 2.00" - 2.30" (51mm - 58mm) | 3/4" (19mm) |
| VIBTBC-200 | 2791 | 2.00" (51mm) | 2.27" - 2.63" (58mm - 67mm) | 3/4" (19mm) |
| VIBTBC-225 | 2792 | 2.25" (57mm) | 2.53" - 2.75" (64mm - 70mm) | 3/4" (19mm) |
| VIBTBC-250 | 2793 | 2.50" (64mm) | 2.75" - 3.10" (70mm - 79mm) | 3/4" (19mm) |
| VIBTBC-275 | 2794 | 2.75" (70mm) | 3.01" - 3.25" (76mm - 83mm) | 3/4" (19mm) |
| VIBTBC-300 | 2795 | 3.00" (76mm) | 3.28" - 3.60" (83mm - 91mm) | 3/4" (19mm) |
| VIBTBC-325 | 2803 | 3.25" (83mm) | 3.50" - 3.80" (89mm - 97mm) | 3/4" (19mm) |
| VIBTBC-350 | 2796 | 3.50" (89mm) | 3.76" - 4.05" (96mm - 103mm) | 3/4" (19mm) |
| VIBTBC-400 | 2798 | 4.00" (102mm) | 4.20" - 4.60" (107mm - 117mm) | 3/4" (19mm) |
| VIBTBC-450 | 2797 | 4.50" (114mm) | 4.75" - 5.10" (121mm - 130mm) | 3/4" (19mm) |
| VIBTBC-500 | 2799 | 5.00" (127mm) | 5.30" - 5.60" (135mm - 142mm) | 3/4" (19mm) |
| VIBTBC-600 | 2804 | 6.00" (152mm) | 6.28" - 6.59" (160mm - 167mm) | 3/4" (19mm) |
