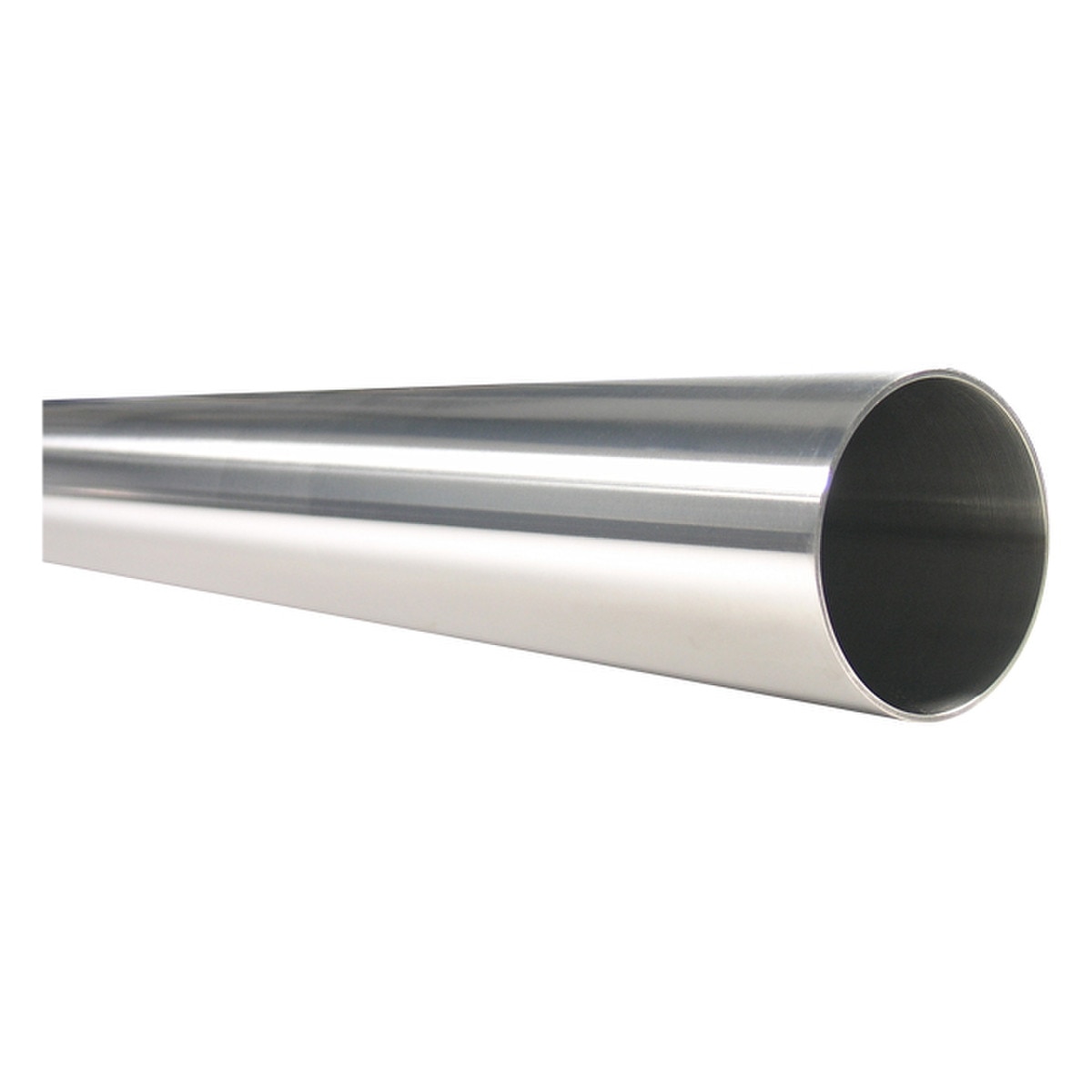

6" OD 3A Polished Stainless Steel Tubing, 304L, Welded, 12 Gauge (.109") - 3' Length
3' length of 6" OD 3A Polished Stainless Steel Welded Tubing with a 12 Gauge (0.109") wall. This polished tubing undergoes multiple passes through the polishing heads to remove any unwanted residue, resulting in a mechanically polished 20Ra Max inner diameter (ID) and 32Ra Max outer diameter (OD). The resulting product meets or exceeds both ASTM A270-S2 and 3A specifications.
This tubing undergoes a rigorous quality inspection, including destructive and non-destructive examination, at the mill prior to shipment. This 9 point quality inspection examines:
- Strength - Tensile, Burst
- Hardness - Rockwell, Micro
- Soundness - Eddy Current, Ultrasonic, X-Ray
- Leak & Strength - Hydrostatic
- Leak - Air Under Water, Pressure Decay
- Bend Testing - Reverse Bending, Flattening, Reverse Flattening, Flange
- Dimensional - OD, Wall, Straightness
- Metallurgical - Grain Size, Sensitization, Corrosion, Phase Balance/Intermetallic, Metallographic
Call regarding any bulk orders greater than 100'.
| 3A Dimensional Tolerances | ||||
|---|---|---|---|---|
| Size | Nom. Wall | O.D. | Length | Wall |
| 1/2" (12.7mm) | 0.065" (1.65mm) | ± 0.005" (0.13mm) | ± 1/16" (1.59mm) | ± 10.0% |
| 3/4" (19.1mm) | 0.065" (1.65mm) | ± 0.005" (0.13mm) | ± 1/16" (1.59mm) | ± 10.0% |
| 1" (25.4mm) | 0.065" (1.65mm) | ± 0.005" (0.13mm) | ± 1/16" (1.59mm) | ± 10.0% |
| 1-1/2" (38.1mm) | 0.065" (1.65mm) | ± 0.008" (0.20mm) | ± 1/16" (1.59mm) | ± 10.0% |
| 2" (50.8mm) | 0.065" (1.65mm) | ± 0.008" (0.20mm) | ± 1/16" (1.59mm) | ± 10.0% |
| 2-1/2" (63.5mm) | 0.065" (1.65mm) | ± 0.010" (0.25mm) | ± 1/16" (1.59mm) | ± 10.0% |
| 3" (76.2mm) | 0.065" (1.65mm) | ± 0.010" (0.25mm) | ± 1/16" (1.59mm) | ± 10.0% |
| 4" (101.6mm) | 0.083" (2.11mm) | ± 0.015" (0.38mm) | ± 1/16" (1.59mm) | ± 10.0% |
| 6" (152.4mm) | 0.083" (2.11mm) | ± 0.030" (0.76mm) | ± 1/16" (1.59mm) | ± 10.0% |
| 6" (152.4mm) | 0.109" (2.77mm) | ± 0.030" (0.76mm) | ± 1/16" (1.59mm) | ± 10.0% |
| 8" (203.2mm) | 0.109" (2.77mm) | + 0.061" / - 0.031" (+ 0.76mm / - 0.79mm) | ± 1/16" (1.59mm) | ± 10.0% |
