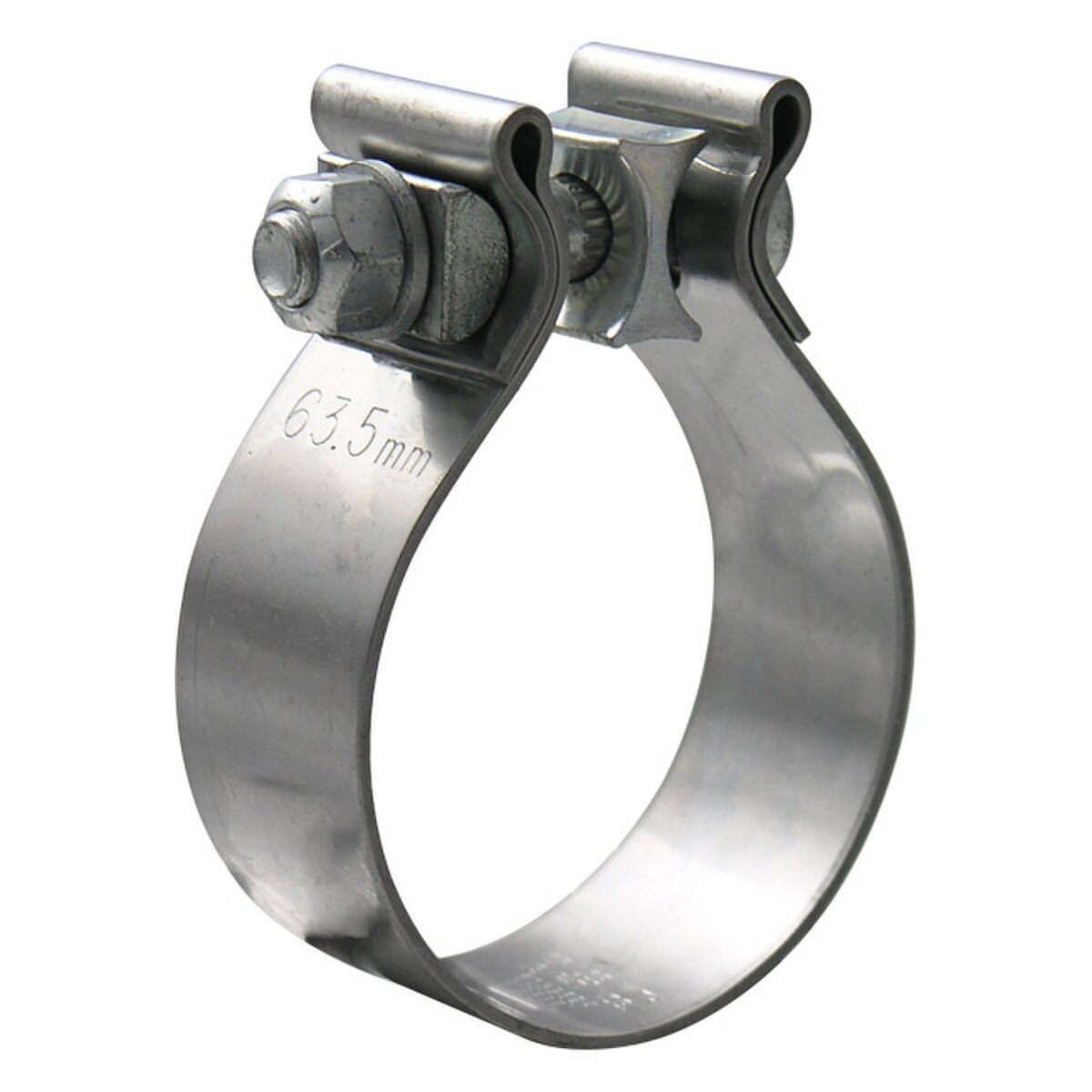

Torca AccuSeal Exhaust Clamps (Slip Fit Connections)
Torca Products are proudly developed and manufactured right here in the USA --- buy proud buy American!
Torca AccuSeal® Exhaust Clamps are a simple, effective, way to connect exhaust system components such as mufflers, resonators, and tips. Torca's Accuseal® clamps provide a unique seal with high clamping loads without permanently distorting your exhaust components, allowing the flexibility to disassemble for service in the future.
AccuSeal clamps are available in all of the standard industry sizes ranging from 1-3/4" (44.5mm) through 6" (152.4mm) in either 430 bright stainless steel or aluminized steel. These clamps feature unitized construction which minimizes part number complexity and maximizes material efficiency for reduced weight and lower costs.
Don't be fooled by inferior knock offs! The AccuSeal's unique patented fastening system stretches the band using its tensile strength, permitting the use of thinner gauge material. The reaction block provides full 360 degree equal distribution of the clamping stretching force, which prohibits pipe distortion while completing a seal around the joined exhaust components.
AccuSeal Clamps are designed to be used on ID/OD style connections. For example, if you have a 2.5" exhaust, the clamp is designed to fit over tubing that has been flared to a 2.50" ID, or over an exhaust component such as a muffler that has a 2.5" ID inlet or outlet. For optimal sealing, the larger side of the connection (the ID side) should have relief slots cut in it.
For more than 30 years, Torca branded products have been designed and manufactured to deliver superior exhaust connections. Torca invented the original reaction block technology that set the industry standard for creating full 360 degree sealing performance for exhaust clamps. By focusing on evolving innovation and improvement into the product, Torca products provide the best product performance, with the least material, for maximum efficiency to the overall system. Torca Products are proudly developed and manufactured in the U.S.A.
Torca AccuSeal® Clamp Features:
- 1.75" thru 6" Sizes Available
- Torque to 40-60 ft-lbs
- For slotted lap style joint connection
- 360° Reaction Block
- Hexavalent Chrome-free
- High Clamp Load Capability
- Aluminized Steel or 430 Stainless Steel
- Pre-assembled for easy installation
- Does not crimp pipes
- Easy to disassemble and service joints
- Made in the USA
VMS PN | Brand PN | Global PN | Size | Material |
---|---|---|---|---|
TAS-175-SS | A17BF | 0366 0080 500 | 1.75" (44.5mm) | 430 Stainless |
TAS-188-SS | n/a | n/a | 1.75" (44.5mm) | 430 Stainless |
TAS-200-SS | A20BF | 0366 0000 564 | 2.00" (50.8mm) | 430 Stainless |
TAS-225-SS | A22BF | 0366 0060 627 | 2.25" (57.2mm) | 430 Stainless |
TAS-250-SS | A25BF | 0366 0000 691 | 2.50" (63.5mm) | 430 Stainless |
TAS-275-SS | A27BF | 0366 0050 754 | 2.75" (69.9mm) | 430 Stainless |
TAS-300-SS | A30BF | 0366 1200 818 | 3.00" (76.2mm) | 430 Stainless |
TAS-350-SS | A35BF | 0366 0020 949 | 3.50" (88.9mm) | 430 Stainless |
TAS-400-SS | A40BF | 0366 1221 072 | 4.00" (101.6mm) | 430 Stainless |
TAS-450-SS | A45BF | 0366 0011 199 | 4.50" (114.3mm) | 430 Stainless |
TAS-500-SS | A50BF | 0366 0021 326 | 5.00" (127mm) | 430 Stainless |
TAS-600-SS | A60BF | 0366 0021 580 | 6.00" (152.4mm) | 430 Stainless |
TAS-175-AS | A17AF | 0366 0050 500 | 1.75" (44.5mm) | Aluminized |
TAS-188-AS | n/a | n/a | 1.75" (44.5mm) | Aluminized |
TAS-200-AS | A20AF | 0366 0060 564 | 2.00" (50.8mm) | Aluminized |
TAS-225-AS | A22AF | 0366 0020 627 | 2.25" (57.2mm) | Aluminized |
TAS-250-AS | A25AF | 0366 0030 691 | 2.50" (63.5mm) | Aluminized |
TAS-275-AS | A27AF | 0366 0020 754 | 2.75" (69.9mm) | Aluminized |
TAS-300-AS | A30AF | 0366 0070 818 | 3.00" (76.2mm) | Aluminized |
TAS-350-AS | A35AF | 0366 0060 949 | 3.50" (88.9mm) | Aluminized |
TAS-400-AS | A40AF | 0366 0071 072 | 4.00" (101.6mm) | Aluminized |
TAS-450-AS | A45AF | 0366 0021 199 | 4.50" (114.3mm) | Aluminized |
TAS-500-AS | A50AF | 0366 0061 326 | 5.00" (127mm) | Aluminized |
TAS-600-AS | A60AF | 0366 0041 580 | 6.00" (152.4mm) | Aluminized |
