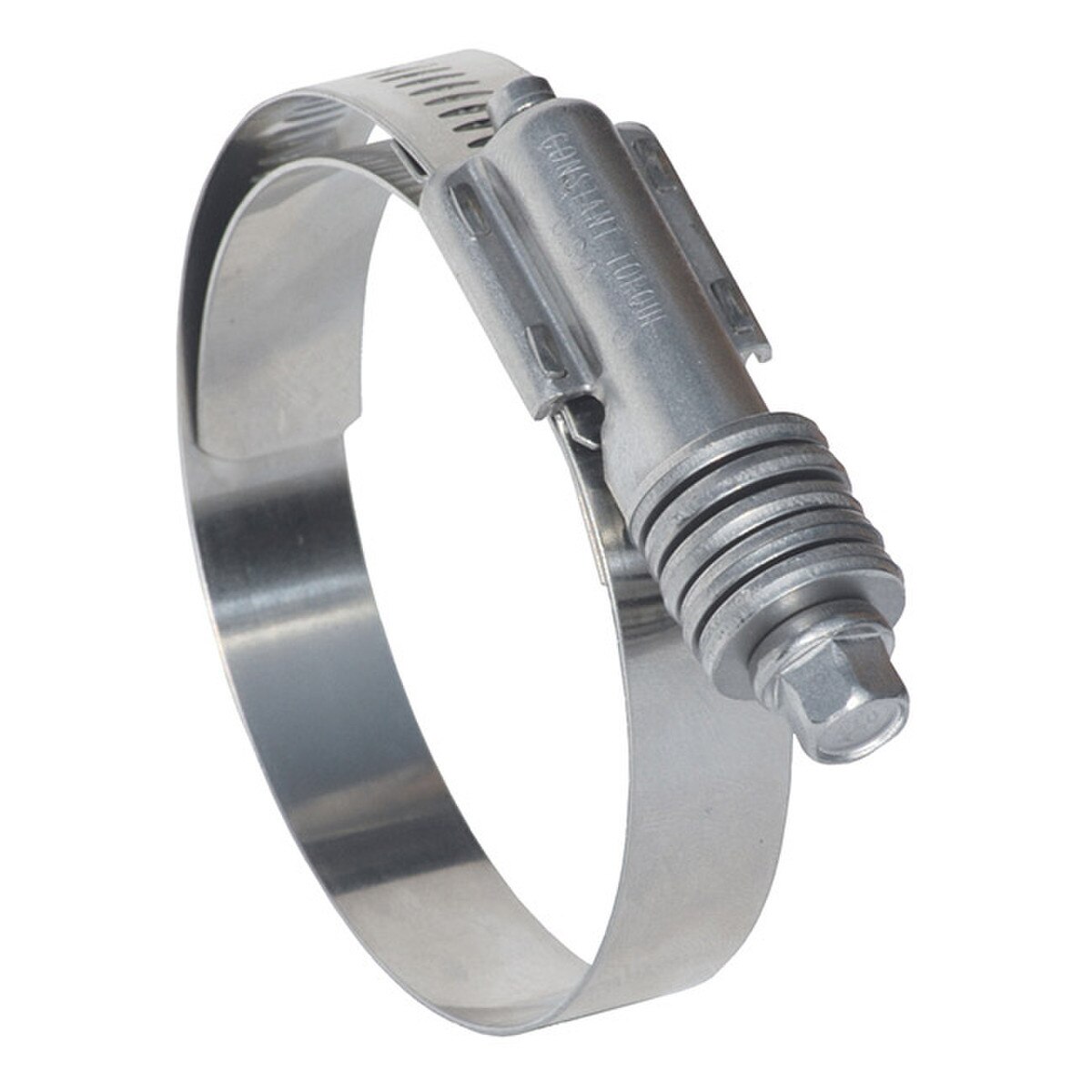

Dixon Constant Torque Heavy Duty Worm Gear Clamps (Stainless Steel)
The Dixon CONSTANT-TORQUE Hose Clamps are a breakthrough in clamping technology. A belleville spring mechanism permits the CONSTANT-TORQUE clamp to automatically increase or decrease its own diameter due to changes in operational or environmental temperatures. This unique design eliminates "cold flow" leaks. The Dixon Heavy Duty construction CT clamps have an extended inner liner which protects all types of hoses from damage and helps to maintain consistent sealing pressure.
Material Specifications:
- Screw: 3/8" Hex Head, Carbon Steel
- Band: 5/8", 300 Stainless
| Dixon Constant Torque Clamps | ||
| Dixon Part # | Min. Dia. | Max. Dia. |
|---|---|---|
| CT175L | 1" | 1-3/4" |
| CT200L | 1-1/4" | 2-1/8" |
| CT250L | 1-3/4" | 2-5/8" |
| CT300L | 2-1/4" | 3-1/8" |
| CT350L | 2-3/4" | 3-5/8" |
| CT400L | 3-1/4" | 4-1/8" |
| CT450L | 3-3/4" | 4-5/8" |
| CT500L | 4-1/4" | 5-1/8" |
| CT550L | 4-3/4" | 5-5/8" |
| CT600L | 5-1/4" | 6-1/8" |
| CT650L | 5-3/4" | 6-5/8" |
| CT700L | 6-1/4" | 7-1/8" |
| CT750L | 6-3/4" | 7-5/8" |
| CT800L | 7-1/4" | 8-1/8" |
| CT850L | 7-3/4" | 8-5/8" |
| CT900L | 8-1/4" | 9-1/8" |
| CT950L | 8-3/4" | 9-5/8" |
