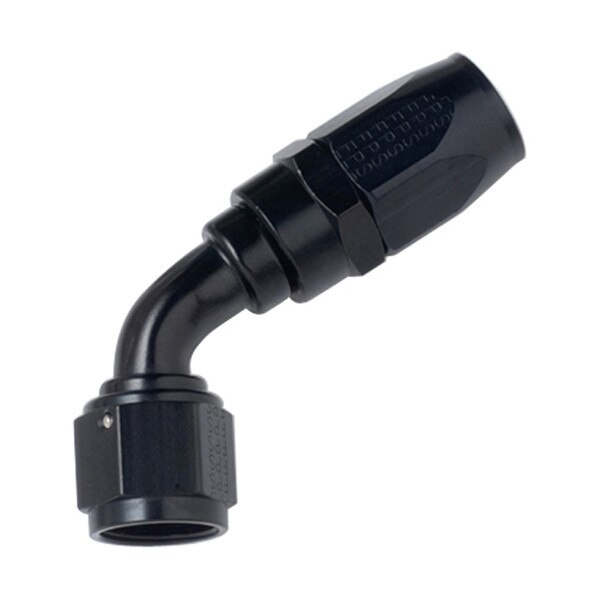

Fragola Aluminum Power Steering Fittings - 45 Degree Hose End
Power steering systems pose their own unique set of problems, and the best way to manage the power steering system in your vehicle is with Fragola's High Pressure Power Steering Hose and Power Steering Hose Fittings. The heart of Fragola's system is a specially designed three-braid hose that will withstand the pressure spikes caused by engine RPM, and by the loading of the wheels. Fragola's Power Steering Hose Ends are constructed from zinc plated steel, and are easily assembled. The fittings are also reusable.
| AN Threads | ||||
| AN Size | Hex Nut Size | Tube Diameter | Thread Size (SAE) | Max Torque (ft-lb) |
| -2 | - | 1/8" | 5/16-24 | - |
| -3 | 1/2" | 3/16" | 3/8-24 | 8.75 |
| -4 | 9/16" | 1/4" | 7/16-20 | 11.5 |
| -6 | 11/16" | 3/8" | 9/16-18 | 16.25 |
| -8 | 7/8" | 1/2" | 3/4-16 | 29 |
| -10 | 1" | 5/8" | 7/8-14 | 35 |
| -12 | 1-1/4" | 3/4" | 1 1/16-12 | 45 |
| -16 | 1-1/2" | 1" | 1 5/16-12 | 70 |
| -20 | 1-7/8" | 1-1/4" | 1 5/8-12 | 85 |
| -24 | - | 1-1/2" | 1 7/8-12 | - |
| -28 | - | 1-3/4" | 2 1/4-12 | - |
| -32 | - | 2" | 2 1/2-12 | - |
