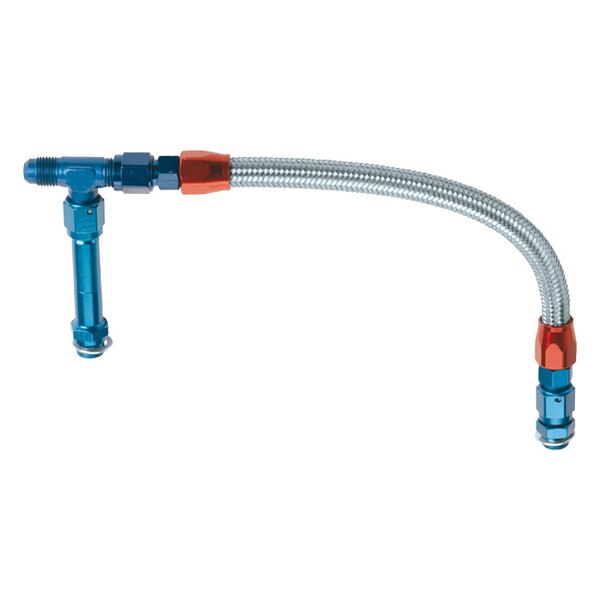

Fragola Sportsman Dual Feed Kit - Dual Inlet Demon - Blue/Red
The Fragola Sportsman Dual Inlet Demon Fuel Line Kit is the ideal setup when you do not plan on running a fuel pressure gauge. By forgoing the option for the fuel gauge Fragola was able to change and eliminate several components to arrive with this cost effective solution for your Demon Carburetor Fuel Line. Features a -6 AN stainless braided line and Blue fittings with 9/16-24 Carb Adapters.
| AN Threads | ||||
| AN Size | Hex Nut Size | Tube Diameter | Thread Size (SAE) | Max Torque (ft-lb) |
| -2 | - | 1/8" | 5/16-24 | - |
| -3 | 1/2" | 3/16" | 3/8-24 | 8.75 |
| -4 | 9/16" | 1/4" | 7/16-20 | 11.5 |
| -6 | 11/16" | 3/8" | 9/16-18 | 16.25 |
| -8 | 7/8" | 1/2" | 3/4-16 | 29 |
| -10 | 1" | 5/8" | 7/8-14 | 35 |
| -12 | 1-1/4" | 3/4" | 1 1/16-12 | 45 |
| -16 | 1-1/2" | 1" | 1 5/16-12 | 70 |
| -20 | 1-7/8" | 1-1/4" | 1 5/8-12 | 85 |
| -24 | - | 1-1/2" | 1 7/8-12 | - |
| -28 | - | 1-3/4" | 2 1/4-12 | - |
| -32 | - | 2" | 2 1/2-12 | - |
