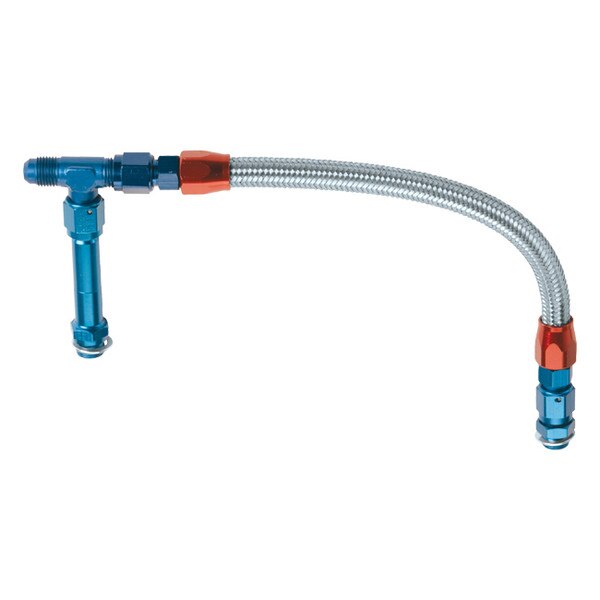

Fragola Sportsman Dual Feed Kit - Holley 4150 - Blue/Red
The Fragola Sportsman Dual Inlet Holley 4150 Fuel Line Kit is the ideal setup when you do not plan on running a fuel pressure gauge. By forgoing the option for the fuel gauge Fragola was able to change and eliminate several components to arrive with this cost effective solution for your Holley 4150 Carburetor Fuel Line. Features a -6 AN stainless braided line and Blue/Red fittings with 7/8-20 Carb Adapters.
| AN Threads | ||||
| AN Size | Hex Nut Size | Tube Diameter | Thread Size (SAE) | Max Torque (ft-lb) |
| -2 | - | 1/8" | 5/16-24 | - |
| -3 | 1/2" | 3/16" | 3/8-24 | 8.75 |
| -4 | 9/16" | 1/4" | 7/16-20 | 11.5 |
| -6 | 11/16" | 3/8" | 9/16-18 | 16.25 |
| -8 | 7/8" | 1/2" | 3/4-16 | 29 |
| -10 | 1" | 5/8" | 7/8-14 | 35 |
| -12 | 1-1/4" | 3/4" | 1 1/16-12 | 45 |
| -16 | 1-1/2" | 1" | 1 5/16-12 | 70 |
| -20 | 1-7/8" | 1-1/4" | 1 5/8-12 | 85 |
| -24 | - | 1-1/2" | 1 7/8-12 | - |
| -28 | - | 1-3/4" | 2 1/4-12 | - |
| -32 | - | 2" | 2 1/2-12 | - |
