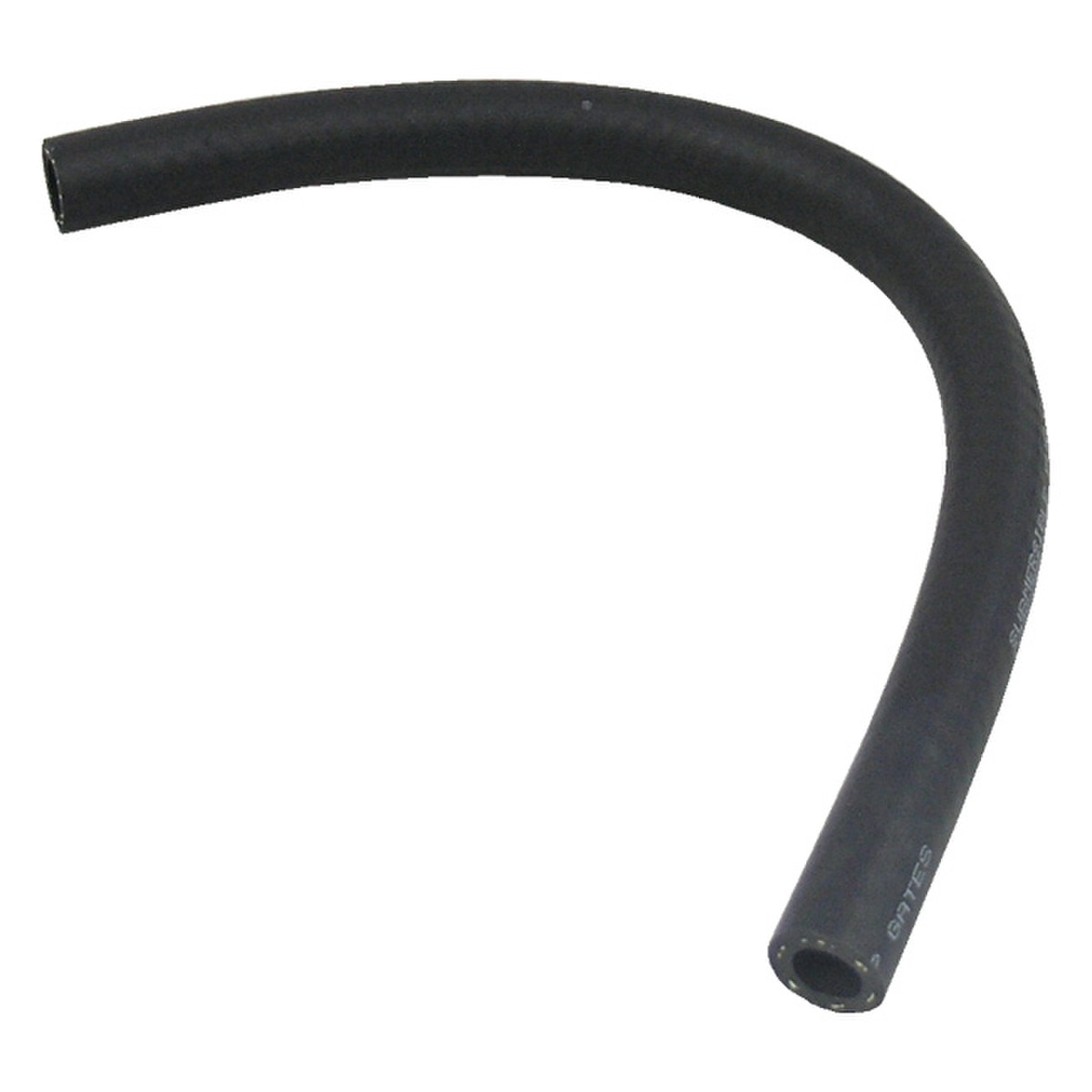

Gates Submersible Fuel Line Hose
Gates® Submersible Fuel Line Hose is designed to handle fuel both internally and externally, whereas ordinary fuel line hose is only capable of handling fuel in the inner diameter. Gates Submersible Fuel Line exceeds the SAE 30R10 rating and is capable of handling gasoline, alcohol-extended gasoline or diesel fuel in fully immersed, mobile, stationary and marine applications. This submersible fuel line has been engineered for constant contact with gasoline (and other liquid petroleum distillates) on the inside and the outside.
Gates Submersible Fuel Line Features:
- Excellent for use on fuel pumps in the gas tank
- Meets the SAE 30R10 specification for submersible fuel line hose applications
- Fluoroelastomer (FKM) tubed cover resists gas permeation and retards aging
- Aramid Fiber reinforcement—the same fiber used in bulletproof vests and is pound-for-pound stronger than steel
- 302°F (150°C) Max Temperature Rating
| Gates # | Hose ID | Length | Working Pressure |
|---|---|---|---|
| 27086 | 1/4" | 1' | 100 psi |
| 27093 | 5/16" | 1' | 100 psi |
| 27097 | 3/8" | 1' | 100 psi |
| 27087 | 1/4" | 10' | 100 psi |
| 27080 | 5/16" | 10' | 100 psi |
| 27081 | 3/8" | 10' | 100 psi |
| 27083 | 1/4" | 32.8' | 100 psi |
| 27084 | 5/16" | 32.8' | 100 psi |
| 27089 | 3/8" | 32.8' | 100 psi |
