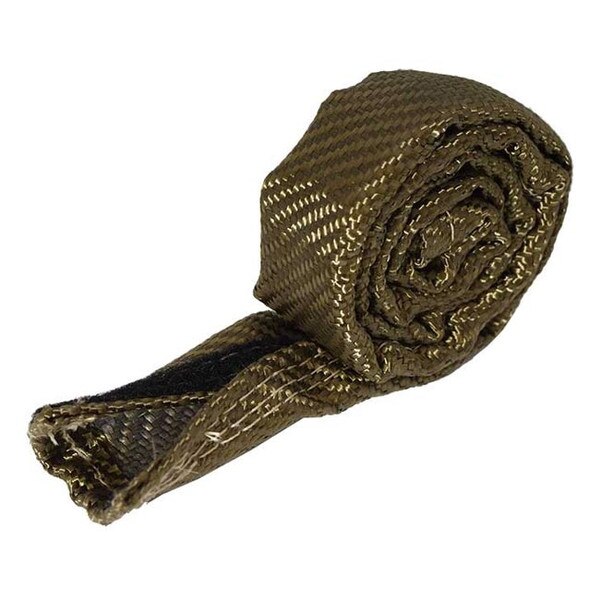

Heatshield Lava Tube Sleeve is a tube-shaped thermal barrier product designed to protect sensitive components in environments with excessive ambient temperatures and direct heat. The material is a specially formulated Heatshield Products fibrous thermal barrier weave made from volcanic rock. The basalt fiber allows Lava Tube to protect components from continuous temperatures of 1,200°F, and intermittent temperatures of 2,000°F. This makes Lava Tube an ideal and superior alternative to silicon-based thermal barrier sleeves in applications above 500°F. Lava Tube is also extremely durable against abrasions and chemical exposure.

Lava Tube has been designed with a special hook-and-loop fastener system, so it can be installed without the need for disassembling components or removing lines and hoses. Lava Tube is available in four diameters ranging from 1/2" to 1-1/2", and either 3' long or 10' long rolls. It can be easily cut to length, but we strongly recommend using a heat shield tape or heat shrink on the end to prevent fraying. Hook and loop seam should face away from the heat source for ideal performance.

Ideal HP Lava Tube Uses:

• Turbo Oil Lines
• AC Lines
• Fuel Lines
• Oil Cooler Lines
• Clutch Lines
