TiAL® V-Band Flange for TiAL® GT Series Turbo Housing - Inlet

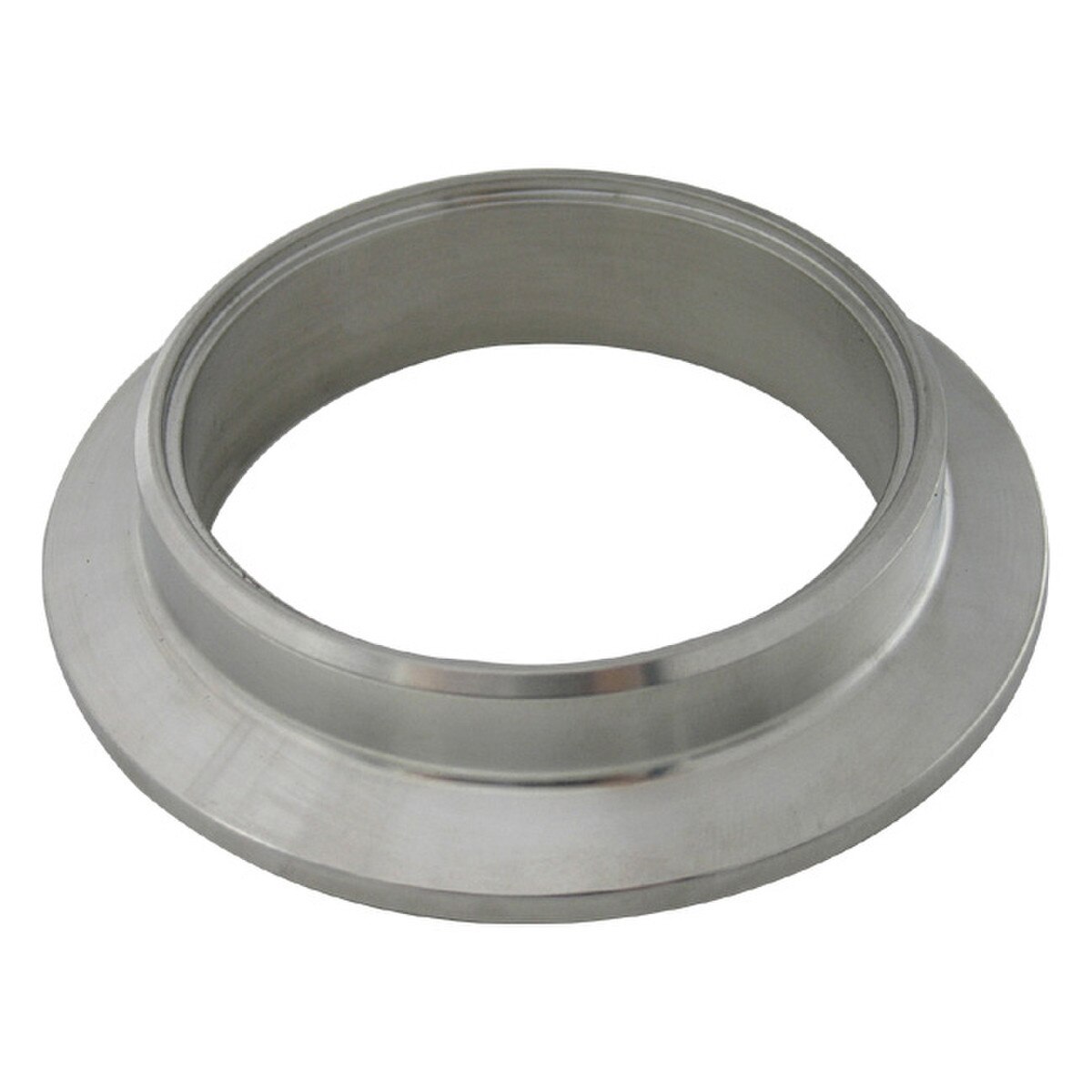

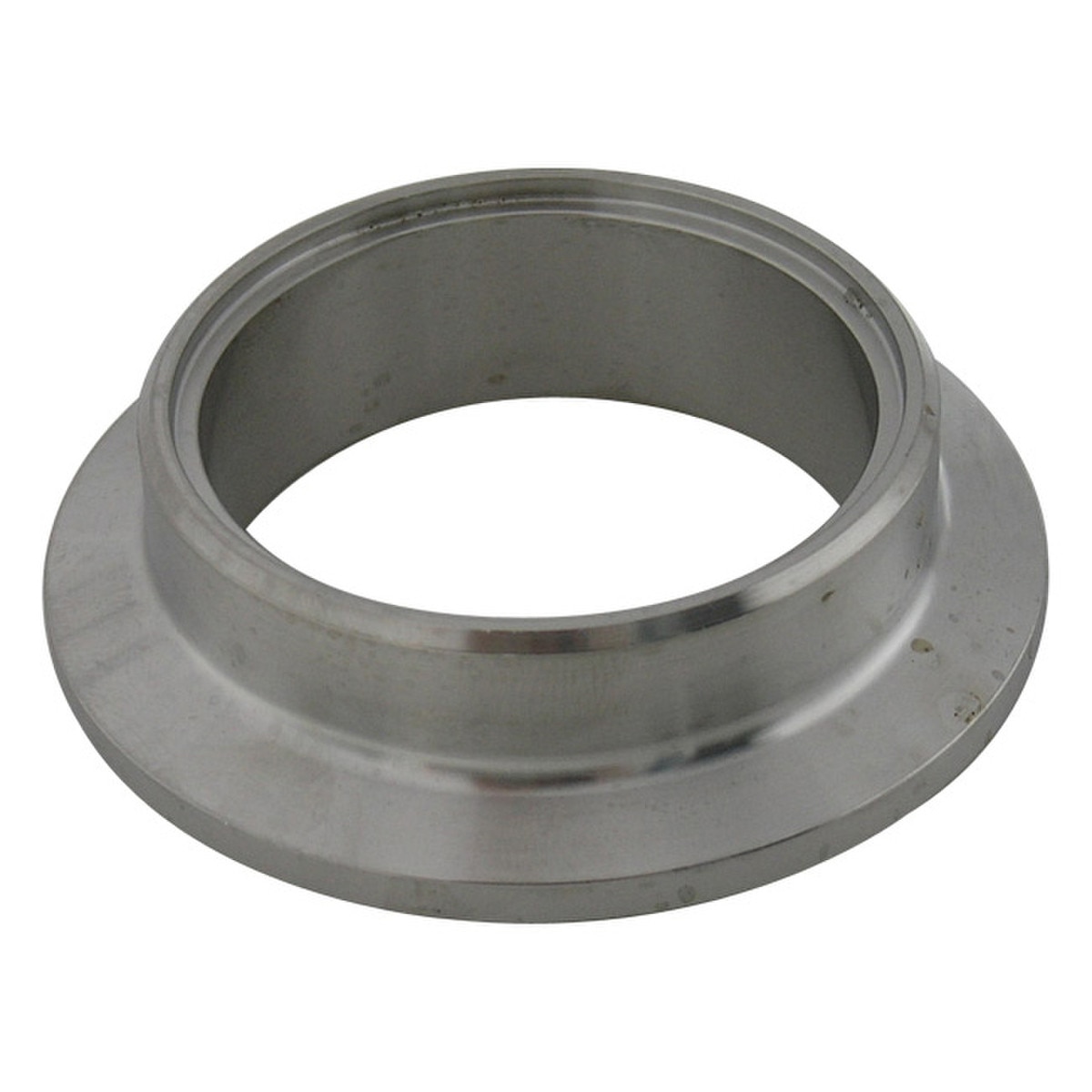

TiAL® V-Band Inlet Weld Flanges compliment their V-Band turbo housings to make your custom fabrication projects as simple as possible. These male flanges are precision machined in the United States from 304 stainless steel to provide a long lasting, air tight seal. Available for GT25, GT28, GT30, GT35, GT42, GT45 and GT55 series v-band compressor housings. Secure with a TiAL® V-Band inlet clamp.
| VMS Part # | TiAL Part # | Compatible Turbine Housing(s) | Flange OD | Neck OD | Overall Length (OAL) |
|---|---|---|---|---|---|
| TIALVBIFS-GT283035 | 001814 | Garrett GT28/30/35, Borg Warner S300 (EWG) | 3.00" (76.2mm) | 2.34" (59.5mm) | 0.82" (20.8mm) |
| TIALVBIFS-GT4245 | 002494 | Garrett GT42/45, Borg Warner S400/SXE | 3.81" (96.8mm) | 3.00" (76.2mm) | 0.82" (20.8mm) |
| TIALVBIFS-GT55 | 003958 | Garrett GT55 | 4.25" (107.9mm) | 3.70" (94mm) | 1.04" (26.5mm) |
