TiAL Wastegate Springs - F38, F40, V44, F46, & V60
These TiAL® Wastegate Springs are for use in TiAL® F38, F40, F41, V44, F46, and V60 wastegates. All TiAL® wastegate springs are constructed from 17-7 PH Stainless Steel which is capable of maintaining consistent pressures up to 900 Deg F (483 Deg C). Please see the information below to decide which spring(s) you need for your application. The boost pressures are approximations from TiAL® based on equal intake and exhaust manifold pressures, results will vary slightly for different applications. Higher pressure settings will require the use of both small and large diameter springs working together. In these dual spring setups the resultant pressure is equal to the sum of the individual springs.
Please Note:
TiAL® MV-S and MV-R wastegates require the use of springs specific to those wastegates which can be found here.
| F38, F40, F41 Wastegate Spring Rates | ||||
| Spring Color(s) | Spring Ratings | Spring O.D | ||
|---|---|---|---|---|

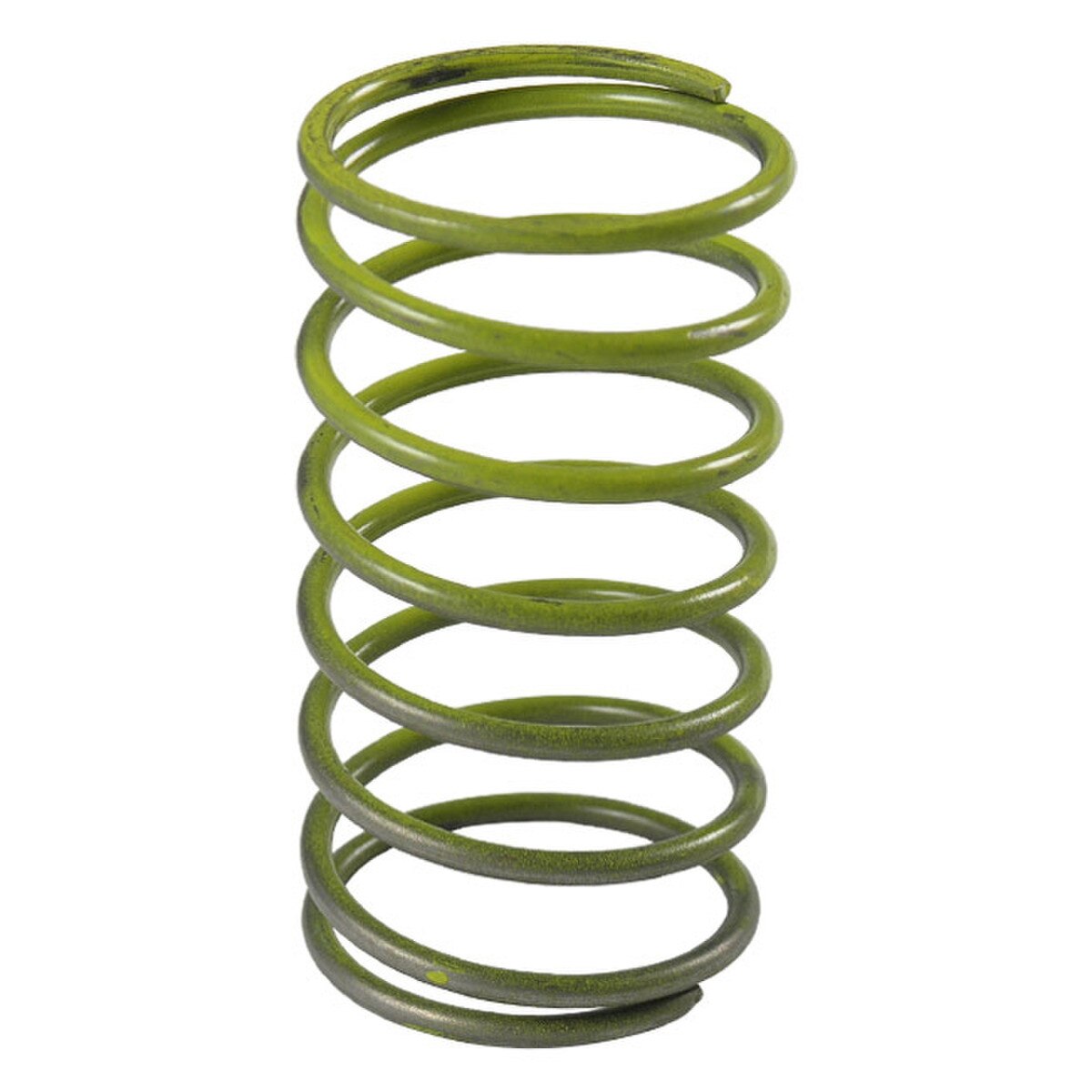

| Small Yellow | 3.63 psi | 0.25 bar | 1.875" | 47.63 mm |

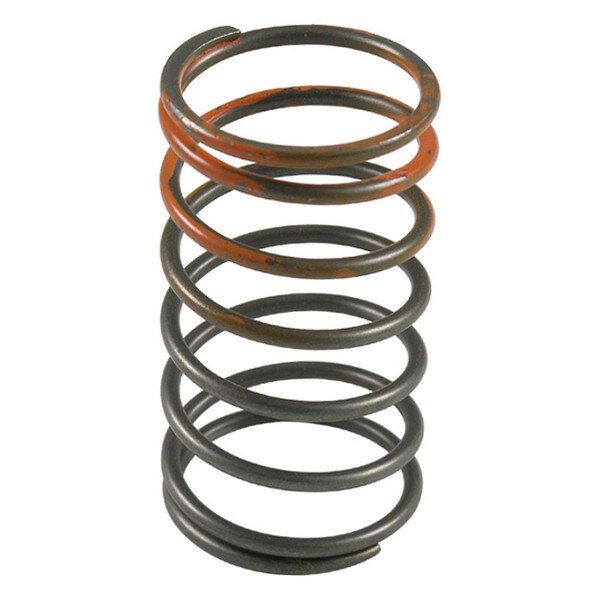

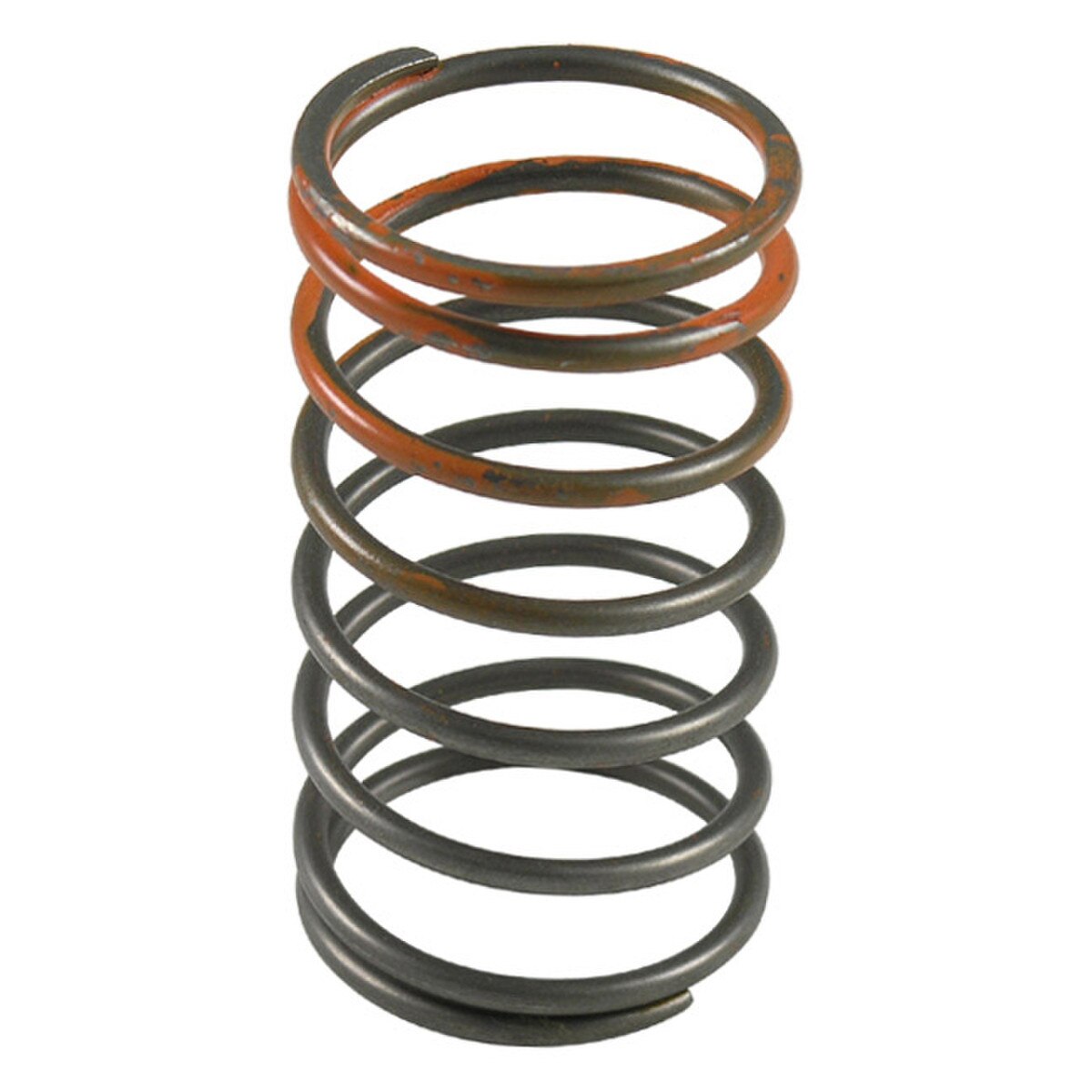

| Small Orange | 5.10 psi | 0.35 bar | 1.875" | 47.63 mm |

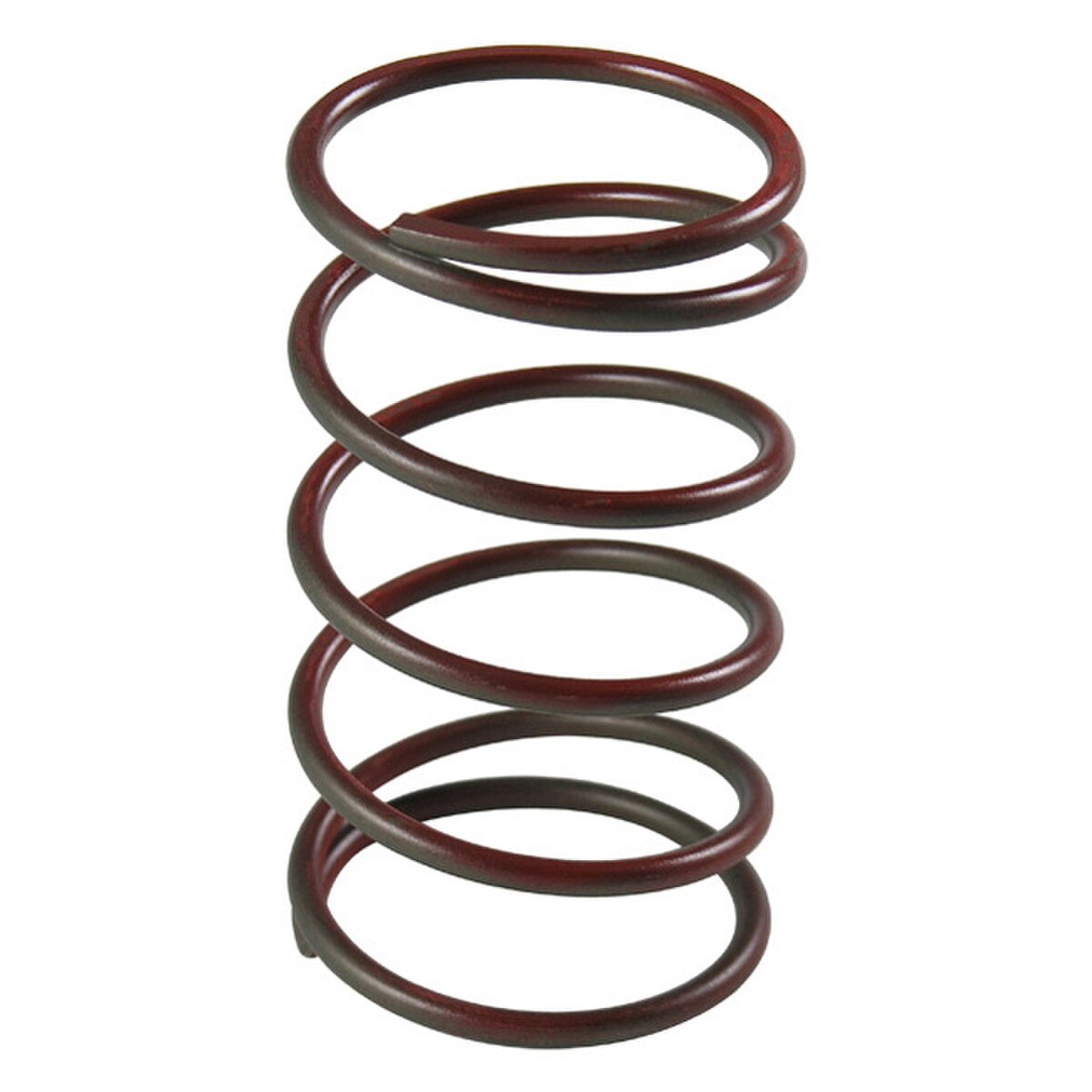

| Small Red | 5.80 psi | 0.40 bar | 1.875" | 47.63 mm |

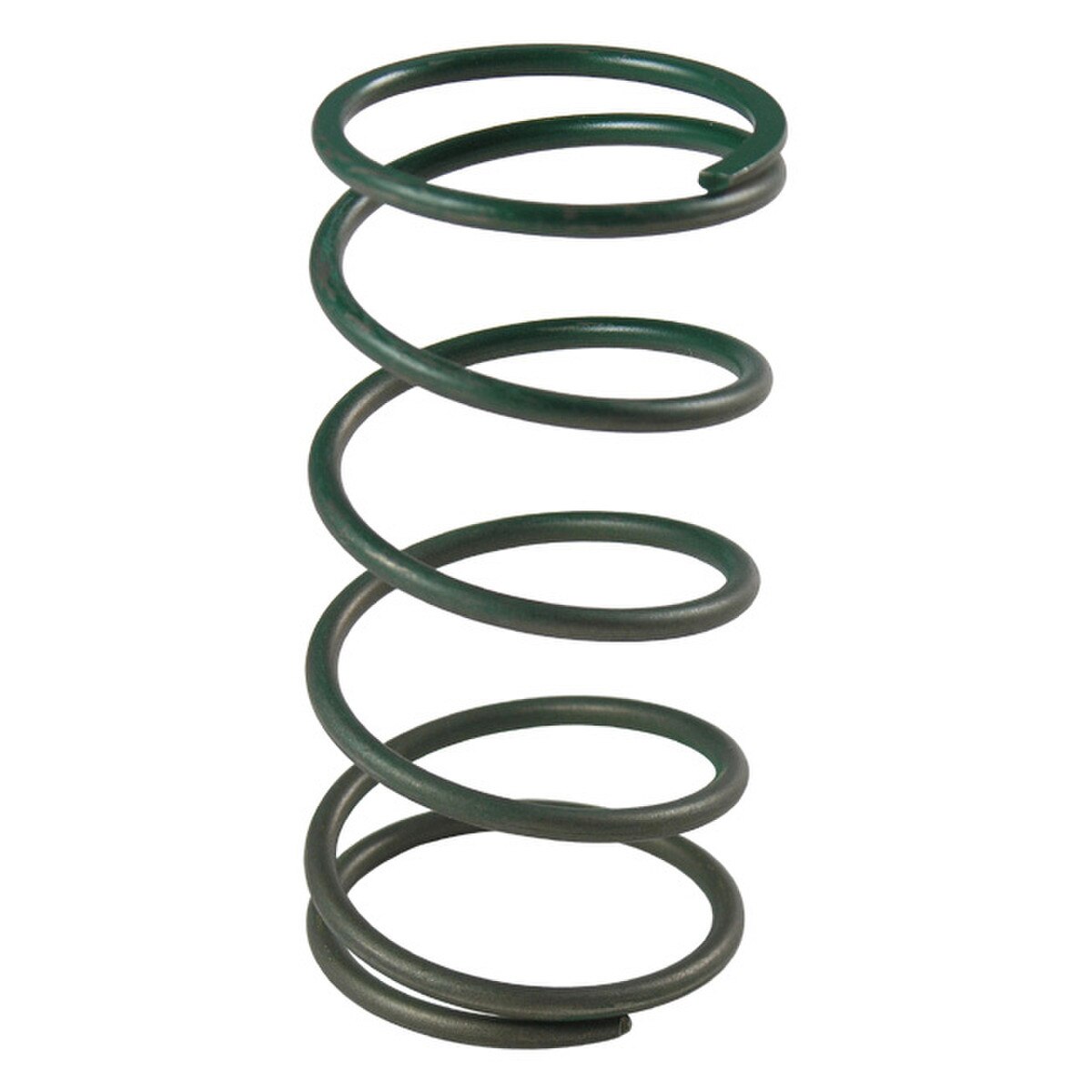

| Small Green | 7.25 psi | 0.50 bar | 1.875" | 47.63 mm |

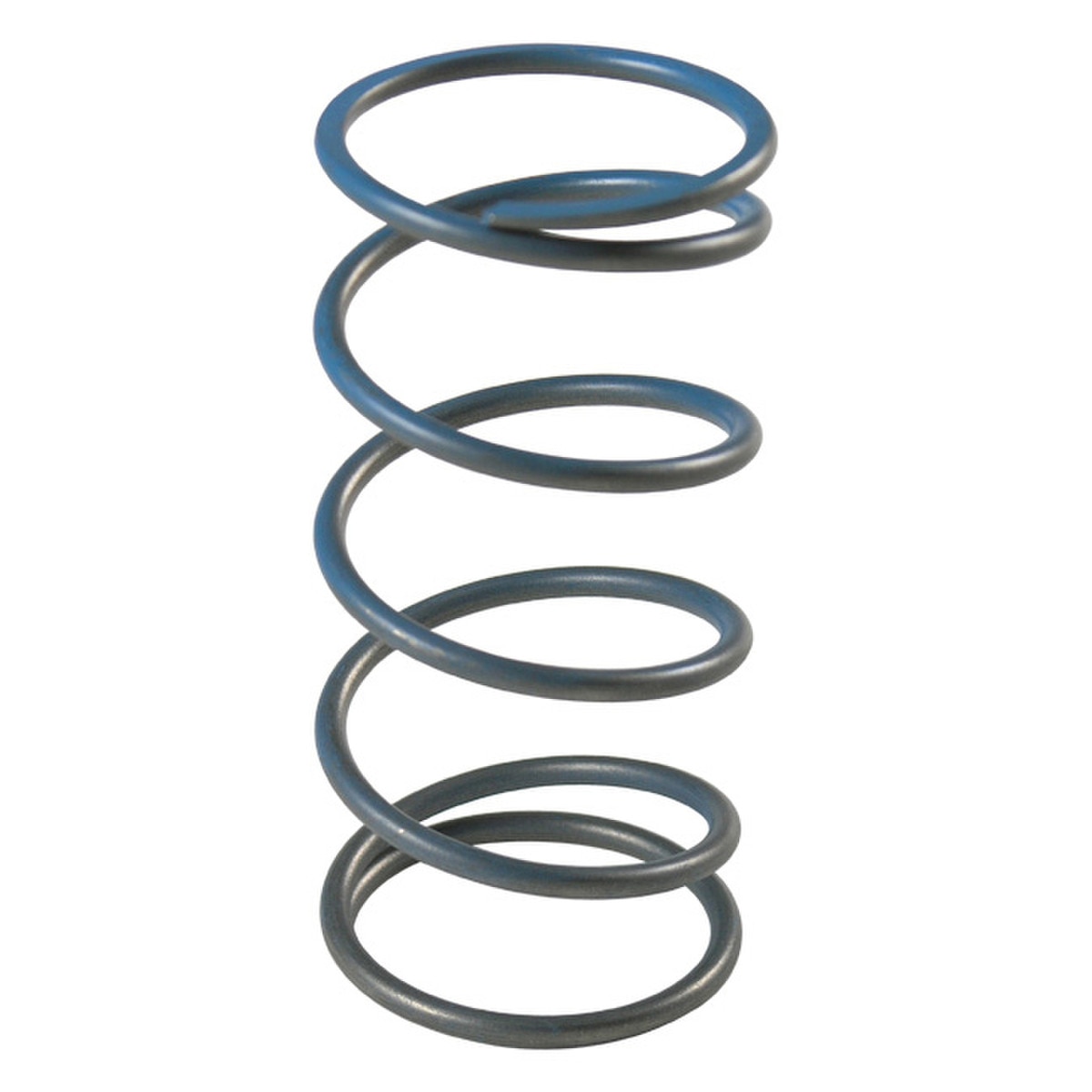

| Small Blue | 8.70 psi | 0.60 bar | 1.875" | 47.63 mm |
| Large Yellow | 10.15 psi | 0.70 bar | 2.360" | 59.94 mm |
| Large Red | 11.60 psi | 0.80 bar | 2.360" | 59.94 mm |
| Large Green | 13.05 psi | 0.90 bar | 2.360" | 59.94 mm |
| Large Blue | 14.50 psi | 1.00 bar | 2.360" | 59.94 mm |
| Large Yellow + Small Blue | 15.95 psi | 1.10 bar | -- | -- |
| Large Red + Small Red | 17.41 psi | 1.20 bar | -- | -- |
| Large Green + Small Red | 18.86 psi | 1.30 bar | -- | -- |
| Large Blue + Small Red | 20.31 psi | 1.40 bar | -- | -- |
| Large Blue + Small Green | 21.76 psi | 1.50 bar | -- | -- |
| Large Blue + Small Blue | 23.21 psi | 1.60 bar | -- | -- |
| V44, F46 Wastegate Spring Rates | ||||
| Spring Color(s) | Spring Ratings | Spring O.D | ||
|---|---|---|---|---|
| Small Yellow | 2.90 psi | 0.20 bar | 1.875" | 47.63 mm |
| Small Orange | 3.60 psi | 0.25 bar | 1.875" | 47.63 mm |
| Small Red | 4.35 psi | 0.30 bar | 1.875" | 47.63 mm |
| Small Green | 5.80 psi | 0.40 bar | 1.875" | 47.63 mm |
| Small Blue | 7.25 psi | 0.50 bar | 1.875" | 47.63 mm |
| Large Yellow | 8.70 psi | 0.60 bar | 2.360" | 59.94 mm |
| Large Red | 10.15 psi | 0.70 bar | 2.360" | 59.94 mm |
| Large Green | 11.60 psi | 0.80 bar | 2.360" | 59.94 mm |
| Large Blue | 13.05 psi | 0.90 bar | 2.360" | 59.94 mm |
| Large Green + Small Yellow | 14.50 psi | 1.00 bar | -- | -- |
| Large Blue + Small Yellow | 15.95 psi | 1.10 bar | -- | -- |
| Large Blue + Small Red | 17.41 psi | 1.20 bar | -- | -- |
| Large Blue + Small Green | 18.86 psi | 1.30 bar | -- | -- |
| Large Blue + Small Blue | 20.31 psi | 1.40 bar | -- | -- |
| V60 Wastegate Spring Rates | ||||
| Spring Color(s) | Spring Ratings | Spring O.D | ||
|---|---|---|---|---|
| Small Yellow | 2.17 psi | 0.15 bar | 1.875" | 47.63 mm |
| Small Red | 3.31 psi | 0.23 bar | 1.875" | 47.63 mm |
| Small Green | 4.34 psi | 0.30 bar | 1.875" | 47.63 mm |
| Small Blue | 5.43 psi | 0.37 bar | 1.875" | 47.63 mm |
| Large Yellow | 6.51 psi | 0.45 bar | 2.360" | 59.94 mm |
| Large Red | 7.58 psi | 0.52 bar | 2.360" | 59.94 mm |
| Large Green | 8.60 psi | 0.59 bar | 2.360" | 59.94 mm |
| Large Blue | 9.77 psi | 0.67 bar | 2.360" | 59.94 mm |
| Large Red + Small Red | 10.90 psi | 0.75 bar | -- | -- |
| Large Red + Small Green | 11.93 psi | 0.82 bar | -- | -- |
| Large Red + Small Blue | 13.02 psi | 0.90 bar | -- | -- |
| Large Green + Small Blue | 14.03 psi | 0.97 bar | -- | -- |
| Large Blue + Small Blue | 15.21 psi | 1.05 bar | -- | -- |
