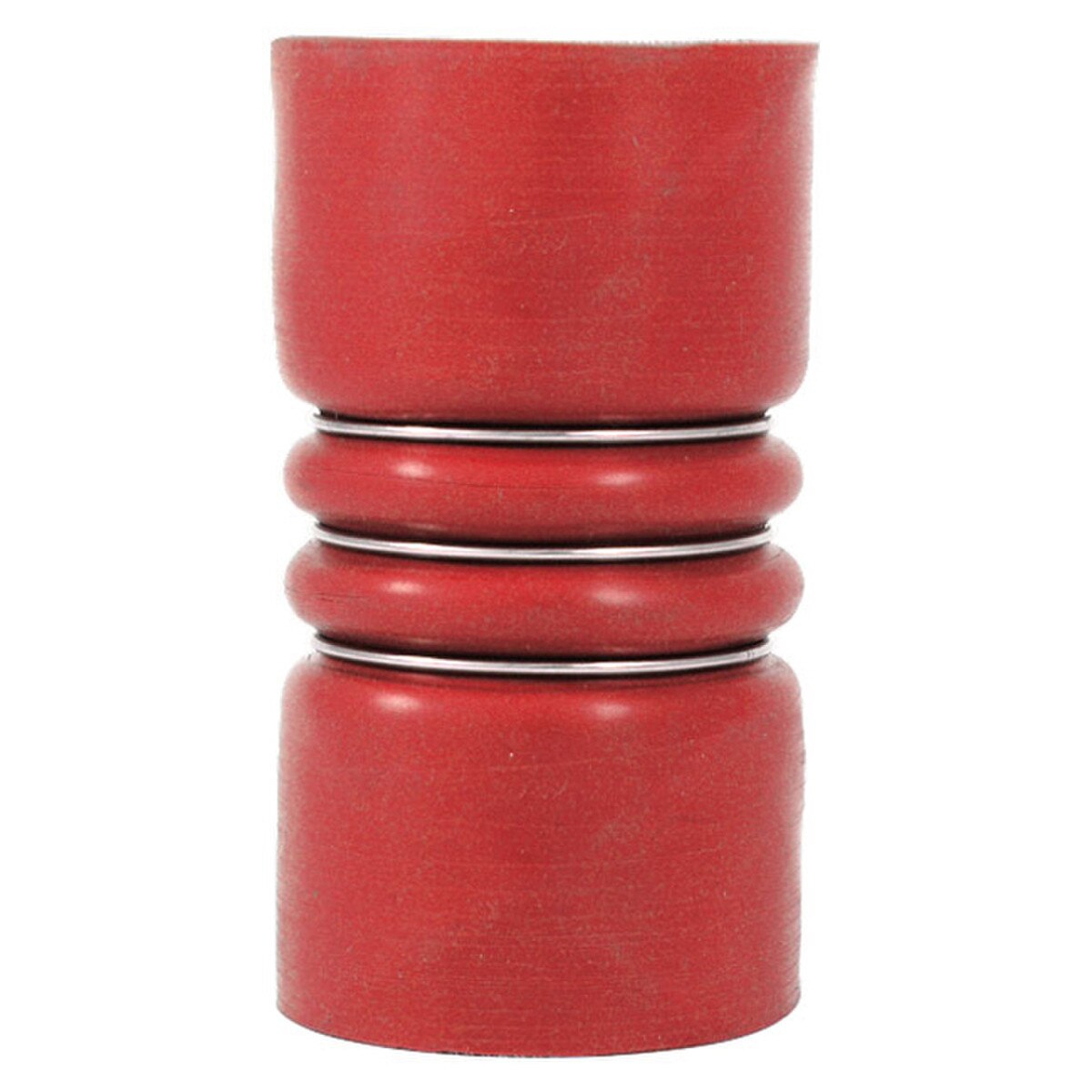

Venair Charge Air Cooler Hose
Venair Silicone Charge Air Cooler Hoses are hand crafted using the highest quality VMQ silicone and stainless steel rings for long lasting performance. Every silicone hose is subject to strict quality controls to ensure a flawless product that is free from defects.
These silicone turboloaders are manufactured with 4-ply aramid reinforcement, which can withstand high boost applications as well as temperatures from -140° up to 430° Fahrenheit, making these perfect for the hot side of turbo. The stainless steel rings provide axial flexibility so this coupling can absorb engine vibrations, helping prevent undo strain on your intercooler piping. These silicone hump hoses are perfect for finishing off your custom turbo installation and make a great upgrade for direct fitment intercooler kits with low quality couplers.
Venair Turboloader Features:
- 4 Ply Aramid Reinforcement
- -140°F up to 430°F Operating Range
- Matching inner liner and outer jacket color
- Great axial flexibility
- Highly resistant to ozone
- Not affected by anti-freeze or anti-rust liquids
- Highly resistant to hardening
- Very good compression characteristics
- Very long life
- Reduced maintenance problems
- Not suitable for carrying gasoline, oil, or other petroleum products
| Part # | Size (Hose ID) | OAL (Overall Length) | C (Cuff Length) | # of Rings / Humps | Working Pressure | Bursting Pressure | Reinforcement |
|---|---|---|---|---|---|---|---|
| 620001091414 | 2.50" (63.5mm) | 6.00" (152.4mm) | 1.75" (44.45mm) | 3 / 2 | 56 psi (3.9 bar) | 169 psi (11.7 bar) | 4 Ply Aramid |
| 620001090670 | 3.00" (76.2mm) | 6.00" (152.4mm) | 2.50" (63.5mm) | 2 / 1 | 49 psi (3.4 bar) | 149 psi (10.3 bar) | 4 Ply Aramid |
| 620501090077 | 3.00" (76.2mm) | 6.00" (152.4mm) | 1.75" (44.45mm) | 3 / 2 | 49 psi (3.4 bar) | 149 psi (10.3 bar) | 4 Ply Aramid |
| 620501090078 | 3.50" (88.9mm) | 6.00" (152.4mm) | 2.25" (57.15mm) | 2 / 1 | 43 psi (3.0 bar) | 132 psi (9.1 bar) | 4 Ply Aramid |
| 620501090163 | 3.50" (88.9mm) | 6.00" (152.4mm) | 1.75" (44.45mm) | 3 / 2 | 43 psi (3.0 bar) | 132 psi (9.1 bar) | 4 Ply Aramid |
| 620501090099 | 4.00" (101.6mm) | 6.00" (152.4mm) | 2.25" (57.15mm) | 2 / 1 | 40 psi (2.8 bar) | 121 psi (8.3 bar) | 4 Ply Aramid |
| 620501090164 | 4.00" (101.6mm) | 6.00" (152.4mm) | 1.75" (44.45mm) | 3 / 2 | 40 psi (2.8 bar) | 121 psi (8.3 bar) | 4 Ply Aramid |
| 620501090165 | 4.00" (101.6mm) | 7.00" (177.8mm) | 2.25" (57.15mm) | 3 / 2 | 40 psi (2.8 bar) | 121 psi (8.3 bar) | 4 Ply Aramid |
| 620001090668 | 4.00" (101.6mm) | 8.00" (203.2mm) | 2.5" (63.5mm) | 3 / 2 | 40 psi (2.8 bar) | 121 psi (8.3 bar) | 4 Ply Aramid |
| 620501110415 | 4.00" (101.6mm) | 9.00" (228.6mm) | 1.75" (44.45mm) | 6 / 5 | 40 psi (2.8 bar) | 121 psi (8.3 bar) | 4 Ply Aramid |
| 620001090669 | 4.50" (114.3mm) | 6.00" (152.4mm) | 1.75" (44.45mm) | 3 / 2 | 32 psi (2.2 bar) | 99.2 psi (6.8 bar) | 4 Ply Aramid |
| 620501110415 | 5.00" (127.0mm) | 6.00" (152.4mm) | 1.75" (44.45mm) | 3 / 2 | n/a | n/a | 4 Ply Aramid |
