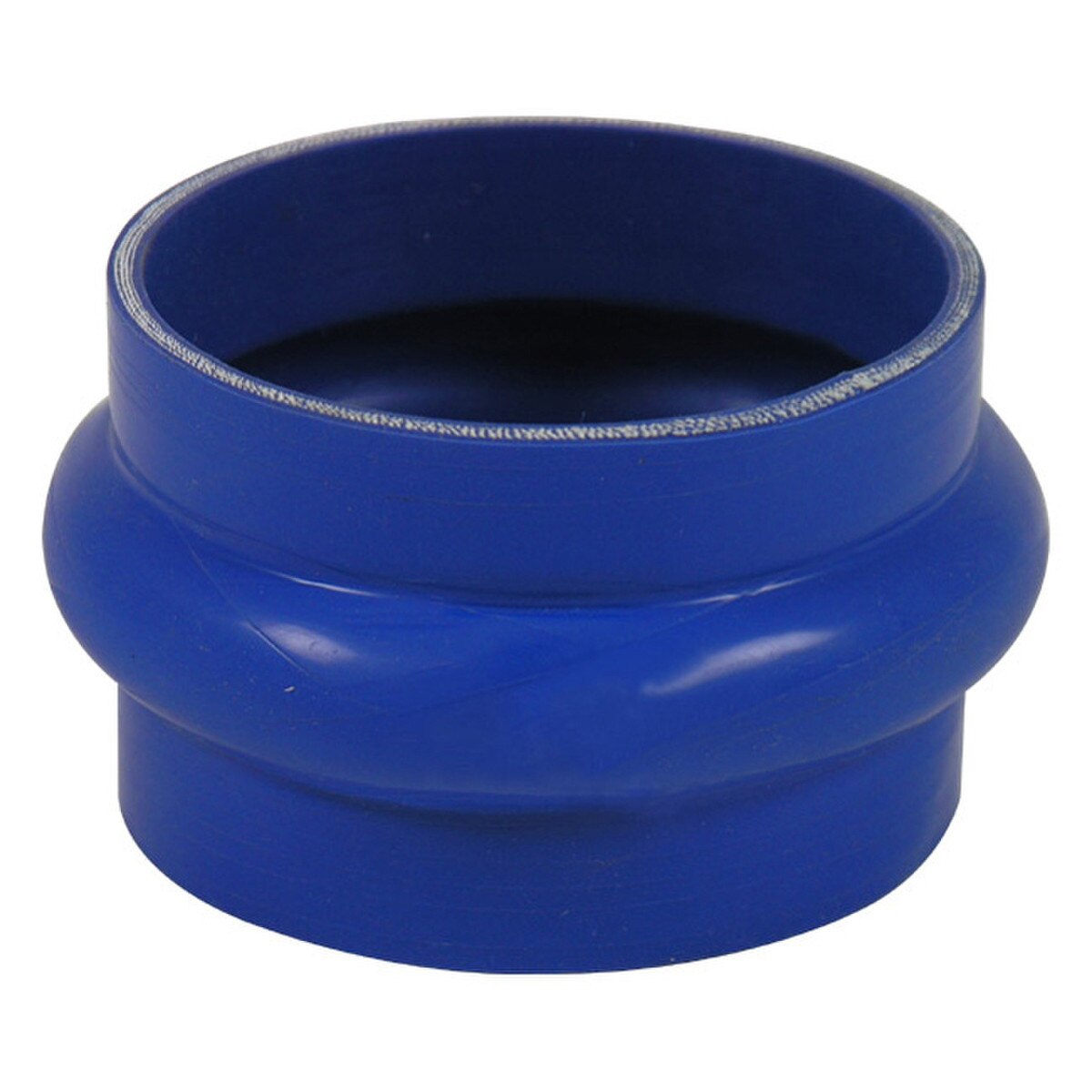

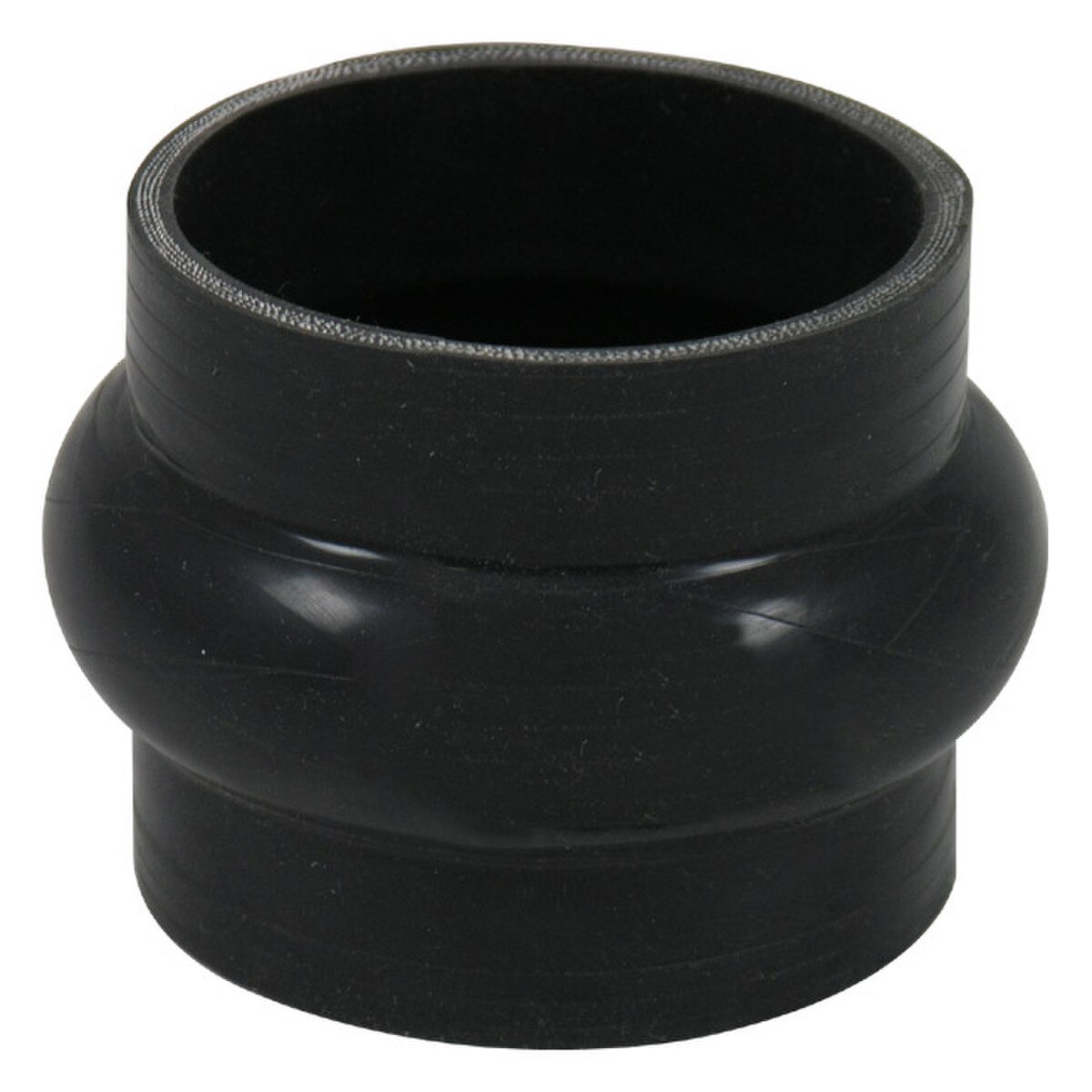

Venair Silicone Hump Hoses, 4 Ply, 4" Long
Venair Silicone Hump Hoses are hand crafted using the highest quality VMQ silicone and every silicone hose is subject to strict quality controls to ensure a flawless product that is free from defects.
These silicone hump couplers are 4" long and manufactured with 4-ply polyester reinforcement, which can withstand high boost applications as well as temperatures from -76° up to 356° Fahrenheit. The integrated "hump" in these silicone couplers provides greater flexibility than a traditional coupling can offer. These are great for fixing stubborn joints that keep separating and reducing stress on all or your intercooler piping. Plus, unlike rubber couplers, silicone will not spoil with age and is highly resistant to hardening while maintaining very good compression characteristics.
Silicone Hump Hose Features:
- 4" Long
- 4 Ply Polyester Reinforcement
- -76° up to 356° Fahrenheit Operating Range
- Excellent flexibility
- Matching inner liner and outer jacket color
- Highly resistant to ozone
- Not affected by anti-freeze or anti-rust liquids
- Highly resistant to hardening
- Very good compression characteristics
- Very long life
- Reduced maintenance problems
- Not suitable for carrying gasoline, oil, or other petroleum products
 | ||||||
| VMS Part # | Size (Hose ID) | OAL (Overall Length) | Working Pressure | Burst Pressure | Reinforcement | Color (*) |
|---|---|---|---|---|---|---|
| VAHMP4P-2004-* | 2.00" (50.8mm) | 4.00" (101.6mm) | 66 psi (4.6 bar) | 198 psi (13.7 bar) | 4 Ply Poly | Black or Blue |
| VAHMP4P-2134-* | 2.13" (54.1mm) | 4.00" (101.6mm) | 62 psi (4.3 bar) | 187 psi (12.9 bar) | 4 Ply Poly | Black or Blue |
| VAHMP4P-2254-* | 2.25" (57.2mm) | 4.00" (101.6mm) | 61 psi (4.2 bar) | 182 psi (12.5 bar) | 4 Ply Poly | Black or Blue |
| VAHMP4P-2384-* | 2.38" (60.5mm) | 4.00" (101.6mm) | 59 psi (4.1 bar) | 177 psi (12.2 bar) | 4 Ply Poly | Black or Blue |
| VAHMP4P-2504-* | 2.50" (63.5mm) | 4.00" (101.6mm) | 56 psi (3.9 bar) | 169 psi (11.7 bar) | 4 Ply Poly | Black or Blue |
| VAHMP4P-2754-* | 2.75" (69.9mm) | 4.00" (101.6mm) | 52 psi (3.6 bar) | 158 psi (10.9 bar) | 4 Ply Poly | Black or Blue |
| VAHMP4P-3004-* | 3.00" (76.2mm) | 4.00" (101.6mm) | 49 psi (3.4 bar) | 149 psi (10.3 bar) | 4 Ply Poly | Black or Blue |
| VAHMP4P-3134-* | 3.13" (79.5mm) | 4.00" (101.6mm) | 47 psi (3.2 bar) | 143 psi (9.9 bar) | 4 Ply Poly | Black or Blue |
| VAHMP4P-3254-* | 3.25" (82.5mm) | 4.00" (101.6mm) | 43 psi (3.0 bar) | 132 psi (9.1 bar) | 4 Ply Poly | Black or Blue |
| VAHMP4P-3504-* | 3.50" (88.9mm) | 4.00" (101.6mm) | 43 psi (3.0 bar) | 132 psi (9.1 bar) | 4 Ply Poly | Black or Blue |
| VAHMP4P-4004-* | 4.00" (101.6mm) | 4.00" (101.6mm) | 40 psi (2.8 bar) | 121 psi (8.3 bar) | 4 Ply Poly | Black or Blue |
| VAHMP4P-4504-* | 4.50" (114.3mm) | 4.00" (101.6mm) | 32 psi (2.2 bar) | 99.2 psi (6.8 bar) | 4 Ply Poly | Black or Blue |
| VAHMP4P-5004-* | 5.00" (127.0mm) | 4.00" (101.6mm) | 27 psi (1.9 bar) | 83.7 psi (5.8 bar) | 4 Ply Poly | Black or Blue |
