Verocious 180 Degree Mandrel Bends, Mild Steel

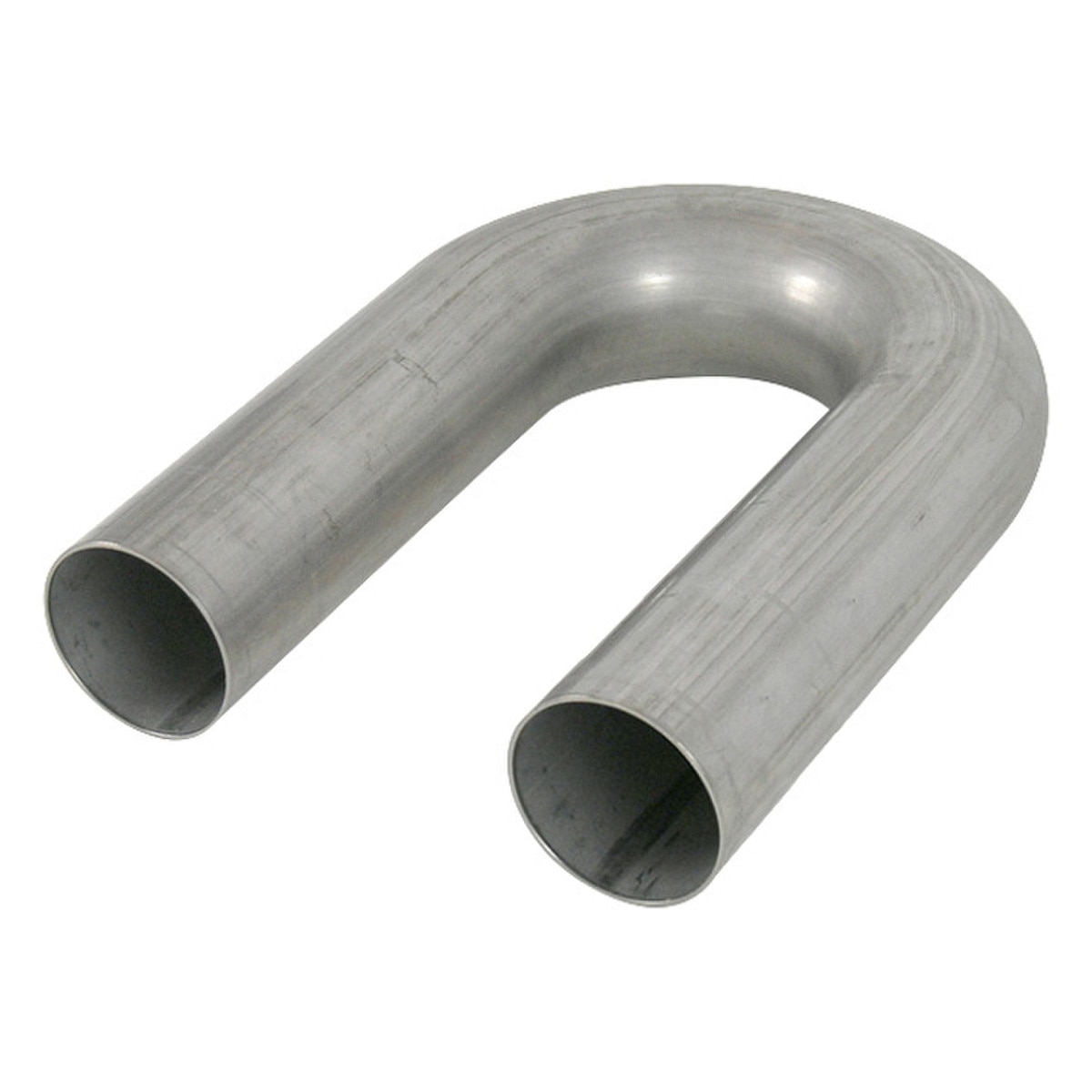

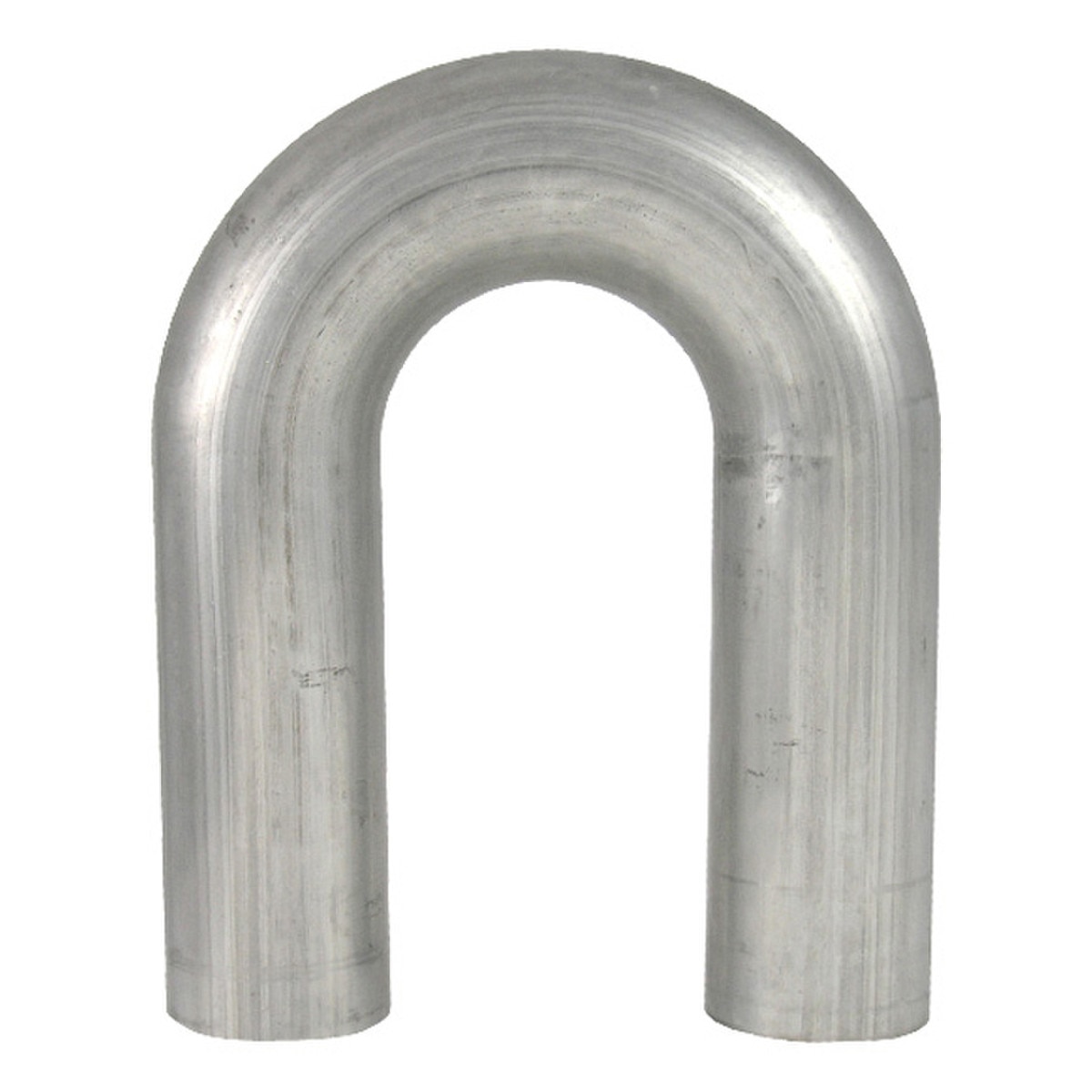

Verocious 180 Degree Mild Steel Mandrel Bends are mandrel bent from 16 gauge (0.065 wall) 1010 mild steel tubing. Smooth and true throughout, these high quality 180 degree U-bend elbows are perfect for custom exhaust fabrication.
Verocious Motorsports Mild Steel Bends are made right here in the USA --- Buy Proud, Buy American!
 | ||||
| VMS Part # | Tube OD | Legs (A) | Bend Radius (R) | Wall Thickness |
|---|---|---|---|---|
| 180MS16-075125-6X6 | 0.75" (19.1mm) | 6.00" (152.4mm) | 1.25" (31.8mm) | 16 ga. (0.065") |
| 180MS16-100150-6X6 | 1.00" (25.4mm) | 6.00" (152.4mm) | 1.50" (38.1mm) | 16 ga. (0.065") |
| 180MS16-100250-6X6 | 1.00" (25.4mm) | 6.00" (152.4mm) | 2.50" (63.5mm) | 16 ga. (0.065") |
| 180MS16-113250-6X6 | 1.13" (28.7mm) | 6.00" (152.4mm) | 2.50" (63.5mm) | 16 ga. (0.065") |
| 180MS16-125200-6X6 | 1.25" (31.8mm) | 6.00" (152.4mm) | 2.00" (50.8mm) | 16 ga. (0.065") |
| 180MS16-138250-6X6 | 1.38" (35.1mm) | 6.00" (152.4mm) | 2.50" (63.5mm) | 16 ga. (0.065") |
| 180MS16-150200-6X6 | 1.50" (38.1mm) | 6.00" (152.4mm) | 2.00" (50.8mm) | 16 ga. (0.065") |
| 180MS16-150250-6X6 | 1.50" (38.1mm) | 6.00" (152.4mm) | 2.50" (63.5mm) | 16 ga. (0.065") |
| 180MS16-163250-6X6 | 1.63" (41.402mm) | 6.00" (152.4mm) | 2.50" (63.5mm) | 16 ga. (0.065") |
| 180MS16-175300-6X6 | 1.75" (44.45mm) | 6.00" (152.4mm) | 3.00" (76.2mm) | 16 ga. (0.065") |
| 180MS16-188300-6X6 | 1.88" (47.752mm) | 6.00" (152.4mm) | 3.00" (76.2mm) | 16 ga. (0.065") |
| 180MS16-200300-6X6 | 2.00" (50.8mm) | 6.00" (152.4mm) | 3.00" (76.2mm) | 16 ga. (0.065") |
| 180MS16-200400-6X6 | 2.00" (50.8mm) | 6.00" (152.4mm) | 4.00" (101.6mm) | 16 ga. (0.065") |
| 180MS16-213250-6X6 | 2.13" (54.1mm) | 6.00" (152.4mm) | 2.50" (63.5mm) | 16 ga. (0.065") |
| 180MS16-225350-6X6 | 2.25" (57.15mm) | 6.00" (152.4mm) | 3.50" (88.9mm) | 16 ga. (0.065") |
| 180MS16-238300-6X6 | 2.38" (60.5mm) | 6.00" (152.4mm) | 3.00" (76.2mm) | 16 ga. (0.065") |
| 180MS16-250300-6X6 | 2.50" (63.5mm) | 6.00" (152.4mm) | 3.00" (76.2mm) | 16 ga. (0.065") |
| 180MS16-250375-6X6 | 2.50" (63.5mm) | 6.00" (152.4mm) | 3.75" (95.25mm) | 16 ga. (0.065") |
| 180MS16-250400-6X6 | 2.50" (63.5mm) | 6.00" (152.4mm) | 4.00" (101.6mm) | 16 ga. (0.065") |
| 180MS16-275400-6X6 | 2.75" (69.85mm) | 6.00" (152.4mm) | 4.00" (101.6mm) | 16 ga. (0.065") |
| 180MS16-275600-6X6 | 2.75" (69.85mm) | 6.00" (152.4mm) | 6.00" (152.4mm) | 16 ga. (0.065") |
| 180MS16-300450-6X6 | 3.00" (76.2mm) | 6.00" (152.4mm) | 4.50" (114.3mm) | 16 ga. (0.065") |
| 180MS16-350450-6X6 | 3.50" (88.9mm) | 6.00" (152.4mm) | 4.50" (114.3mm) | 16 ga. (0.065") |
| 180MS16-400600-6X6 | 4.00" (101.6mm) | 6.00" (152.4mm) | 6.00" (152.4mm) | 16 ga. (0.065") |
