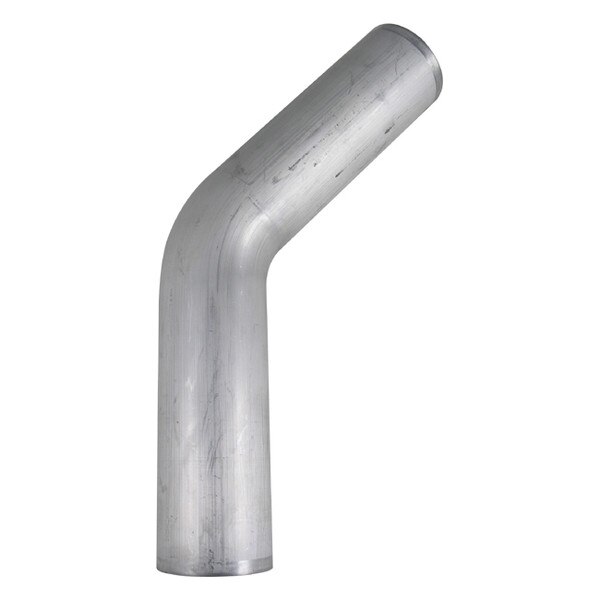

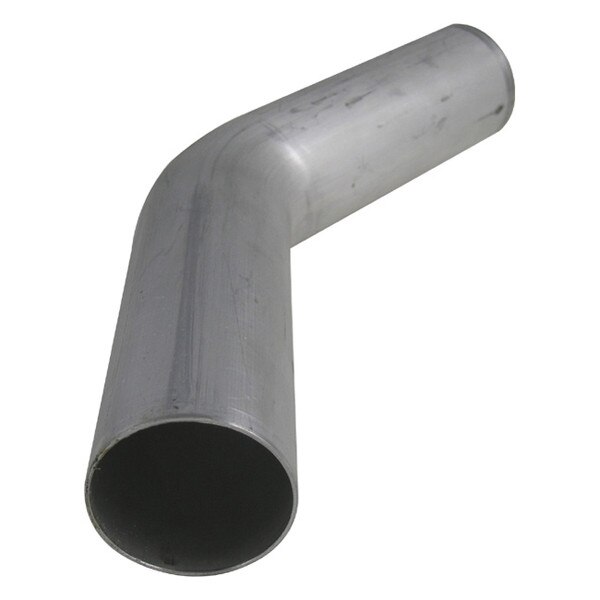

Verocious 45 Degree Mandrel Bends, 6061 Aluminum - Mill Finish
Verocious 45 Degree Aluminum Mandrel Bends are mandrel bent from mill finished 16 gauge (0.065 wall) T6061 aluminum tubing. Smooth and true throughout, these high quality 45 degree elbows are perfect for custom intercooler piping or intake tubes. This mill finished tubing requires little prep prior to welding and is easy to anodize or polish after fabrication.
Verocious Motorsports Aluminum Bends are made right here in the USA --- Buy Proud, Buy American!
 | ||||
| VMS Part # | Tube OD | Legs (A) | Bend Radius (R) | Wall Thickness |
|---|---|---|---|---|
| 0456116-075100-6X6 | 0.75" (19.1mm) | 6.00" (152.4mm) | 1.00" (25.4mm) | 16 ga. (0.065") |
| 0456116-100100-6X6 | 1.00" (25.4mm) | 6.00" (152.4mm) | 1.00" (25.4mm) | 16 ga. (0.065") |
| 0456116-113150-6X6 | 1.13" (28.7mm) | 6.00" (152.4mm) | 1.50" (38.1mm) | 16 ga. (0.065") |
| 0456116-125125-6X6 | 1.25" (31.75mm) | 6.00" (152.4mm) | 1.25" (31.75mm) | 16 ga. (0.065") |
| 0456116-138150-6X6 | 1.38" (35.1mm) | 6.00" (152.4mm) | 1.50" (38.1mm) | 16 ga. (0.065") |
| 0456116-150150-6X6 | 1.50" (38.1mm) | 6.00" (152.4mm) | 1.50" (38.1mm) | 16 ga. (0.065") |
| 0456116-163163-6X6 | 1.63" (41.4mm) | 6.00" (152.4mm) | 1.63" (41.4mm) | 16 ga. (0.065") |
| 0456116-175175-6X6 | 1.75" (44.45mm) | 6.00" (152.4mm) | 1.75" (44.45mm) | 16 ga. (0.065") |
| 0456116-188188-6X6 | 1.88" (47.75mm) | 6.00" (152.4mm) | 1.88" (47.75mm) | 16 ga. (0.065") |
| 0456116-200200-6X6 | 2.00" (50.8mm) | 6.00" (152.4mm) | 2.00" (50.8mm) | 16 ga. (0.065") |
| 0456116-225225-6X6 | 2.25" (57.15mm) | 6.00" (152.4mm) | 2.25" (57.15mm) | 16 ga. (0.065") |
| 0456116-238250-6X6 | 2.38" (60.45mm) | 6.00" (152.4mm) | 2.50" (63.5mm) | 16 ga. (0.065") |
| 0456116-250250-6X6 | 2.50" (63.5mm) | 6.00" (152.4mm) | 2.50" (63.5mm) | 16 ga. (0.065") |
| 0456116-275300-6X6 | 2.75" (69.85mm) | 6.00" (152.4mm) | 3.00" (76.2mm) | 16 ga. (0.065") |
| 0456116-300300-6X6 | 3.00" (76.2mm) | 6.00" (152.4mm) | 3.00" (76.2mm) | 16 ga. (0.065") |
| 0456116-350350-6X6 | 3.50" (88.9mm) | 6.00" (152.4mm) | 3.50" (88.9mm) | 16 ga. (0.065") |
| 0456116-350450-6X6 | 3.50" (88.9mm) | 6.00" (152.4mm) | 4.50" (114.3mm) | 16 ga. (0.065") |
| 0456116-400400-6X6 | 4.00" (101.6mm) | 6.00" (152.4mm) | 4.00" (101.6mm) | 16 ga. (0.065") |
| 0456116-450450-6X6 | 4.50" (114.3mm) | 6.00" (152.4mm) | 4.50" (114.3mm) | 16 ga. (0.065") |
| 0456116-500600-6X6 | 5.00" (127.0mm) | 6.00" (152.4mm) | 6.00" (152.4mm) | 16 ga. (0.065") |
