Verocious 90 Degree Mandrel Bends, Mild Steel

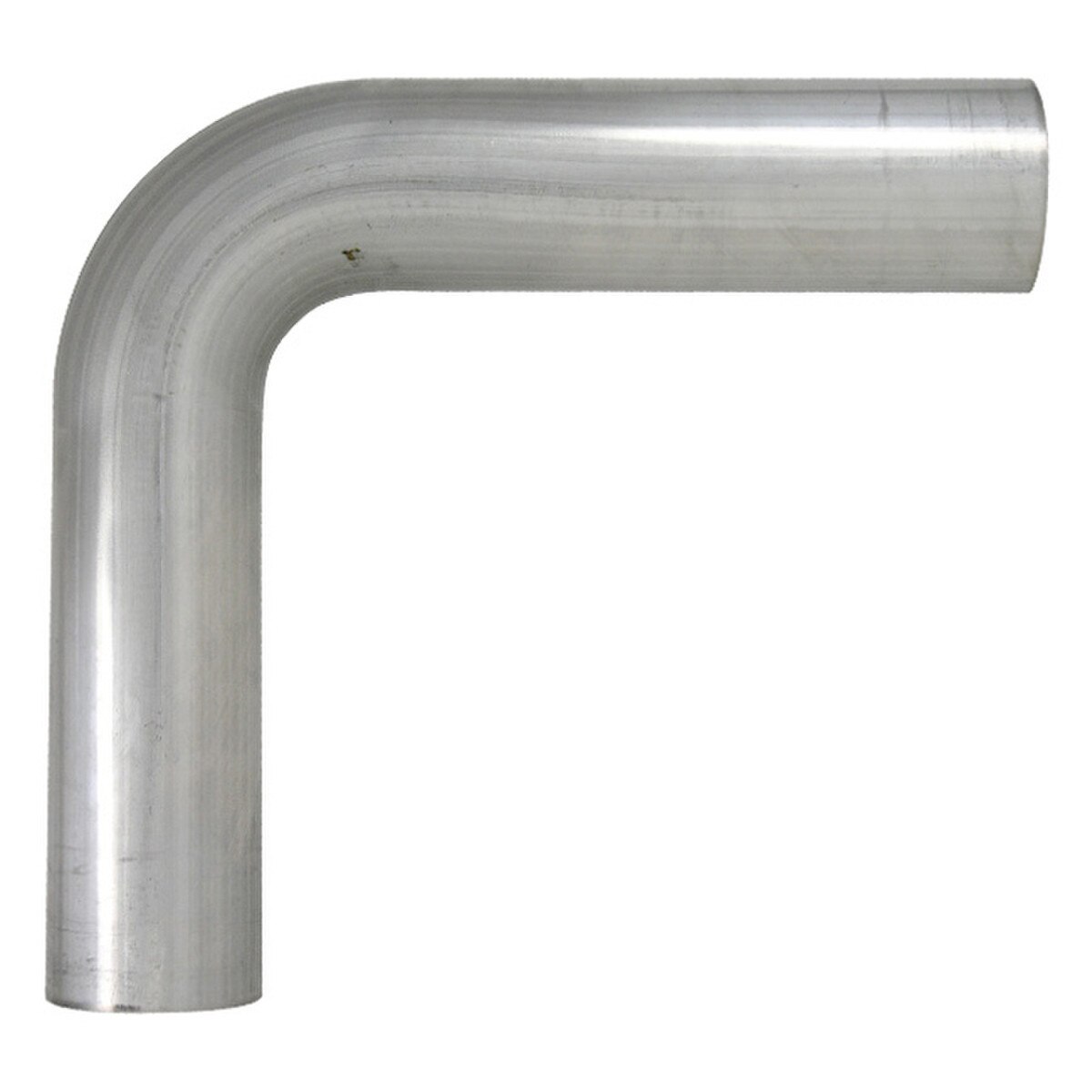

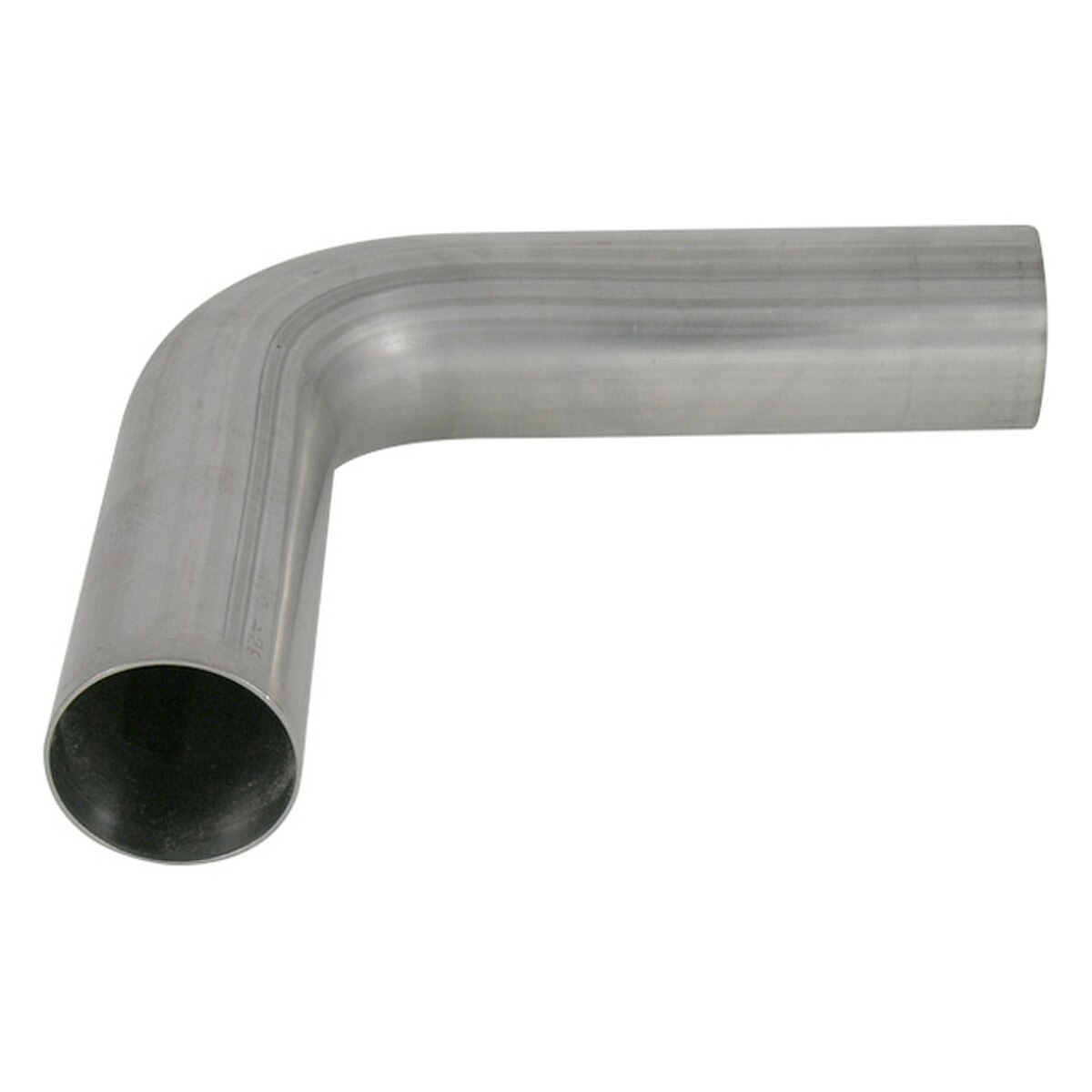

Verocious 90 Degree Mild Steel Mandrel Bends are mandrel bent from 16 gauge (0.065 wall) 1010 mild steel tubing. Smooth and true throughout, these high quality 90 degree elbows are perfect for custom exhaust fabrication.
Verocious Motorsports Mild Steel Bends are made right here in the USA --- Buy Proud, Buy American!
 | |||||
| VMS Part # | Tube OD | Leg (A) | Leg (B) | Bend Radius (R) | Wall Thickness |
|---|---|---|---|---|---|
| 090MS16-063100-3X3 | 0.63" (15.88mm) | 3.00" (76.2mm) | 3.00" (76.2mm) | 1.00" (25.4mm) | 16 ga. (0.065") |
| 090MS16-075100-6X6 | 0.75" (19.05mm) | 6.00" (152.4mm) | 6.00" (152.4mm) | 1.00" (25.4mm) | 16 ga. (0.065") |
| 090MS16-088100-6X6 | 0.88" (22.4mm) | 6.00" (152.4mm) | 6.00" (152.4mm) | 1.00" (25.4mm) | 16 ga. (0.065") |
| 090MS16-100100-6X6 | 1.00" (25.4mm) | 6.00" (152.4mm) | 6.00" (152.4mm) | 1.00" (25.4mm) | 16 ga. (0.065") |
| 090MS16-100150-6X6 | 1.00" (25.4mm) | 6.00" (152.4mm) | 6.00" (152.4mm) | 1.50" (38.1mm) | 16 ga. (0.065") |
| 090MS16-113125-6X6 | 1.13" (28.7mm) | 6.00" (152.4mm) | 6.00" (152.4mm) | 1.25" (31.75mm) | 16 ga. (0.065") |
| 090MS16-125125-6X6 | 1.25" (31.75mm) | 6.00" (152.4mm) | 6.00" (152.4mm) | 1.25" (31.75mm) | 16 ga. (0.065") |
| 090MS16-125150-6X6 | 1.25" (31.75mm) | 6.00" (152.4mm) | 6.00" (152.4mm) | 1.50" (38.1mm) | 16 ga. (0.065") |
| 090MS16-125300-6X6 | 1.25" (31.75mm) | 6.00" (152.4mm) | 6.00" (152.4mm) | 3.00" (76.2mm) | 16 ga. (0.065") |
| 090MS16-138150-6X6 | 1.38" (35.052mm) | 6.00" (152.4mm) | 6.00" (152.4mm) | 1.50" (38.1mm) | 16 ga. (0.065") |
| 090MS16-150150-6X6 | 1.50" (38.1mm) | 6.00" (152.4mm) | 6.00" (152.4mm) | 1.50" (38.1mm) | 16 ga. (0.065") |
| 090MS16-163163-6X6 | 1.63" (41.4mm) | 6.00" (152.4mm) | 6.00" (152.4mm) | 1.63" (41.4mm) | 16 ga. (0.065") |
| 090MS16-163250-6X6 | 1.63" (41.4mm) | 6.00" (152.4mm) | 6.00" (152.4mm) | 2.50" (63.5mm) | 16 ga. (0.065") |
| 090MS16-175175-6X6 | 1.75" (44.45mm) | 6.00" (152.4mm) | 6.00" (152.4mm) | 1.75" (44.45mm) | 16 ga. (0.065") |
| 090MS16-188188-6X6 | 1.88" (47.75mm) | 6.00" (152.4mm) | 6.00" (152.4mm) | 1.88" (47.75mm) | 16 ga. (0.065") |
| 090MS16-188300-6X6 | 1.88" (47.75mm) | 6.00" (152.4mm) | 6.00" (152.4mm) | 3.00" (76.2mm) | 16 ga. (0.065") |
| 090MS16-200200-6X6 | 2.00" (50.8mm) | 6.00" (152.4mm) | 6.00" (152.4mm) | 2.00" (50.8mm) | 16 ga. (0.065") |
| 090MS16-200300-6X6 | 2.00" (50.8mm)) | 6.00" (152.4mm) | 6.00" (152.4mm) | 3.00" (76.2mm) | 16 ga. (0.065") |
| 090MS16-200400-6X6 | 2.00" (50.8mm)) | 6.00" (152.4mm) | 6.00" (152.4mm) | 4.00" (101.6mm) | 16 ga. (0.065") |
| 090MS16-213250-6X6 | 2.13" (54.1mm)) | 6.00" (152.4mm) | 6.00" (152.4mm) | 2.50" (63.5mm) | 16 ga. (0.065") |
| 090MS16-225225-6X6 | 2.25" (57.15mm) | 6.00" (152.4mm) | 6.00" (152.4mm) | 2.25" (57.15mm) | 16 ga. (0.065") |
| 090MS16-238250-6X6 | 2.38" (60.5mm)) | 6.00" (152.4mm) | 6.00" (152.4mm) | 2.50" (63.5mm) | 16 ga. (0.065") |
| 090MS16-250250-4X6 | 2.50" (63.5mm) | 4.00 (101.6mm) | 6.00" (152.4mm) | 2.50" (63.5mm) | 16 ga. (0.065") |
| 090MS16-275300-6X6 | 2.75" (69.85mm) | 6.00" (152.4mm) | 6.00" (152.4mm) | 3.00" (76.2mm) | 16 ga. (0.065") |
| 090MS16-275400-6X6 | 2.75" (69.85mm)) | 6.00" (152.4mm) | 6.00" (152.4mm) | 4.00" (101.6mm) | 16 ga. (0.065") |
| 090MS16-300300-6X6 | 3.00" (76.2mm) | 6.00" (152.4mm) | 6.00" (152.4mm) | 3.00" (76.2mm) | 16 ga. (0.065") |
| 090MS16-300450-6X6 | 3.00" (76.2mm)) | 6.00" (152.4mm) | 6.00" (152.4mm) | 4.50" (114.3mm) | 16 ga. (0.065") |
| 090MS16-350350-4X8 | 3.50" (88.9mm) | 4.00" (101.6mm) | 8.00" (203.2mm) | 3.50" (88.9mm) | 16 ga. (0.065") |
| 090MS16-350450-6X6 | 3.50" (88.9mm) | 6.00" (152.4mm) | 6.00" (152.4mm) | 4.50" (114.3mm) | 16 ga. (0.065") |
| 090MS16-400400-4X9 | 4.00" (101.6mm) | 4.00" (101.6mm) | 9.00" (228.6mm) | 4.00" (101.6mm) | 16 ga. (0.065") |
| 090MS16-400600-6X6 | 4.00" (101.6mm) | 6.00" (152.4mm) | 6.00" (152.4mm) | 6.00" (152.4mm) | 16 ga. (0.065") |
| 090MS16-450450-8X8 | 4.50" (114.3mm) | 8.00" (203.2mm) | 8.00" (203.2mm) | 4.50" (114.3mm) | 16 ga. (0.065") |
| 090MS16-500525-9X11 | 5.00" (127.0mm) | 9.00" (228.6mm) | 11.00" (279.4mm) | 5.25" (133.35mm) | 16 ga. (0.065") |
