Verocious Motorsports Replacement V-Band Clamps

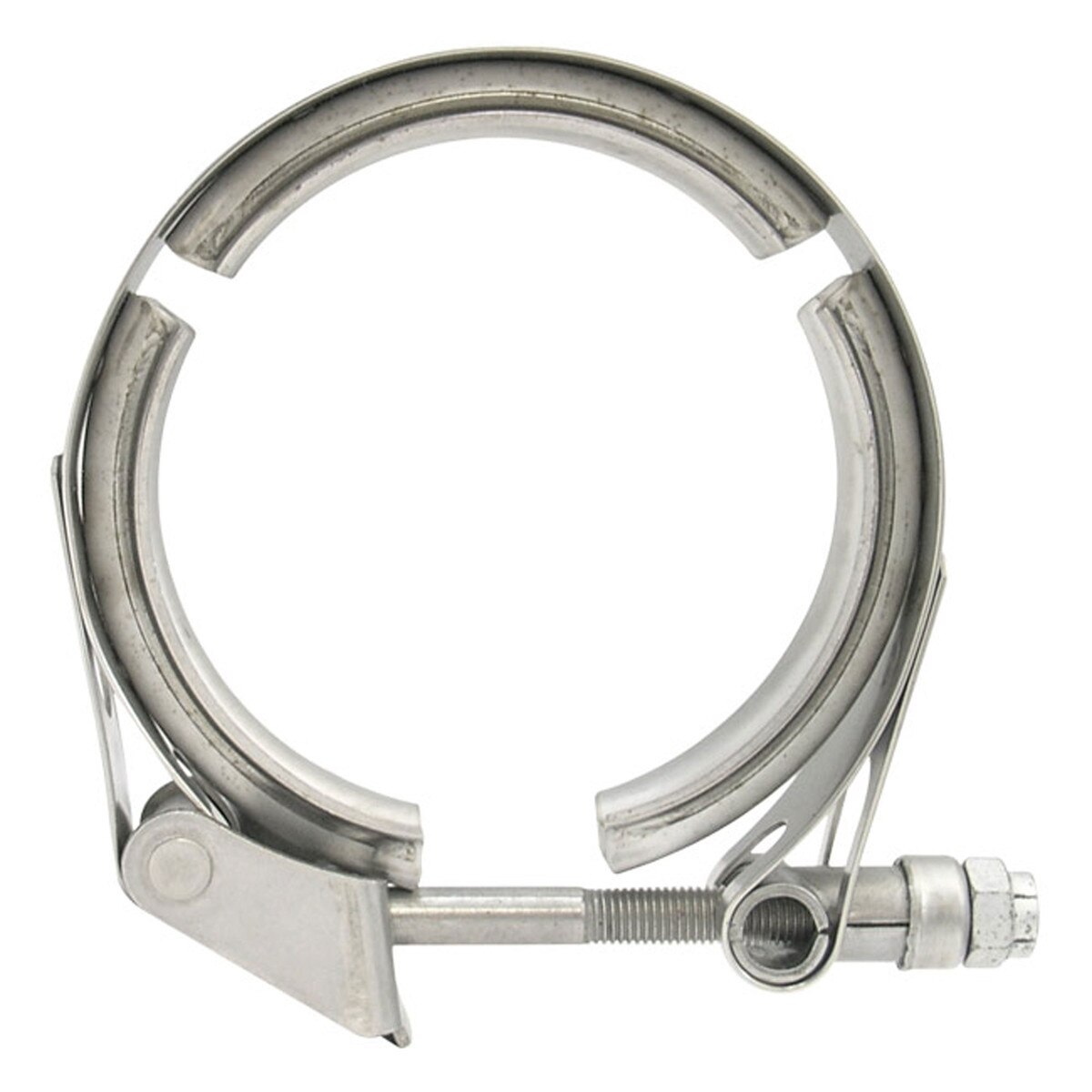

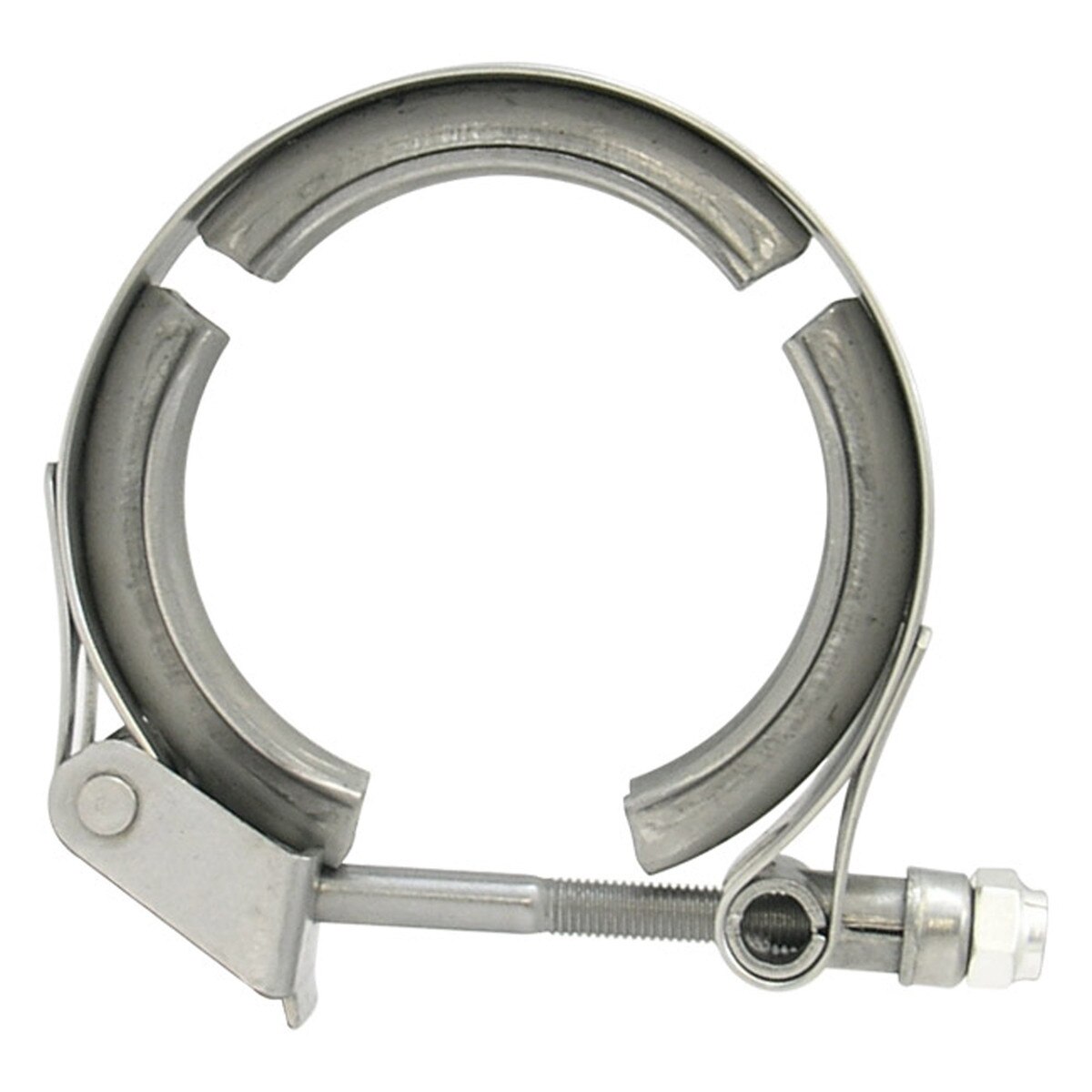

Verocious Motorsports V-Band Clamps are for replacing lost or damaged clamps for our Verocious V-Band Kits. Your mileage may vary when trying to use with other manufacturers flanges. Our "quick release" style clamps are easy to disconnect, only needing to be loosened enough to flip the latch off of the t-bolt head, and allow for replacement of the T-Bolt should they gall up after extended use. Each replacement clamp will include the t-bolt quick release clamp, stainless hex nut (mock-up), stainless nylon locking nut (intake use), and a coated alloy steel self locking nut (exhaust use). We highly recommend the use of a high temperature, nickel based, anti-seize during final installation. Before re-using previously used locking nuts, make sure they are still serviceable and retain their locking capability. All of our v-band clamps, flanges, and components are manufactured in a ISO 9001 certified facility.
Note: All clamps under 3" utilize 1/4"-28 thread hardware, 3" and larger utilize 5/16-24 thread hardware.

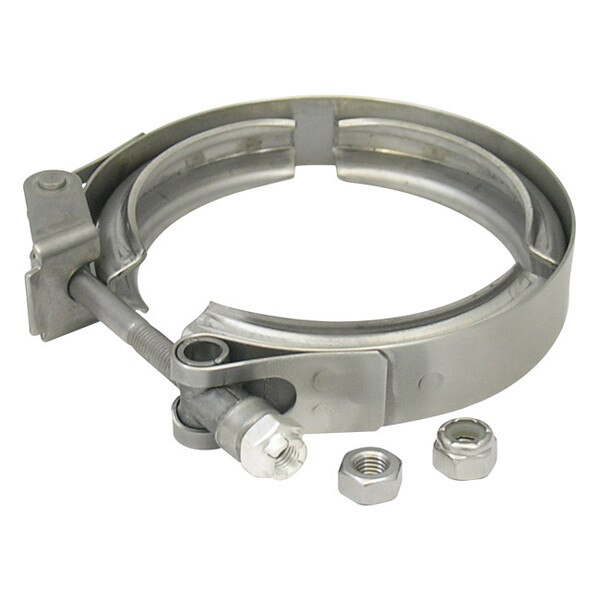

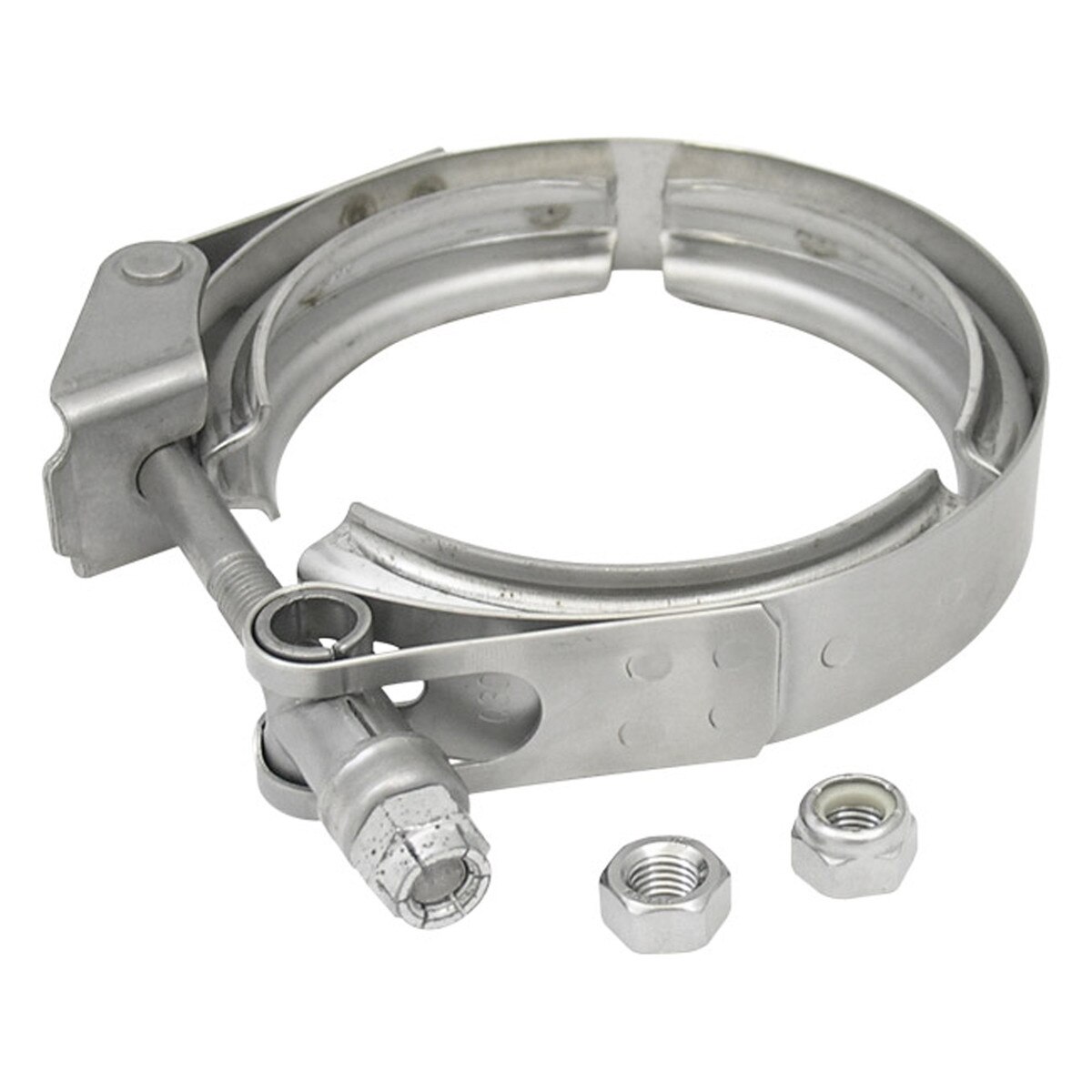

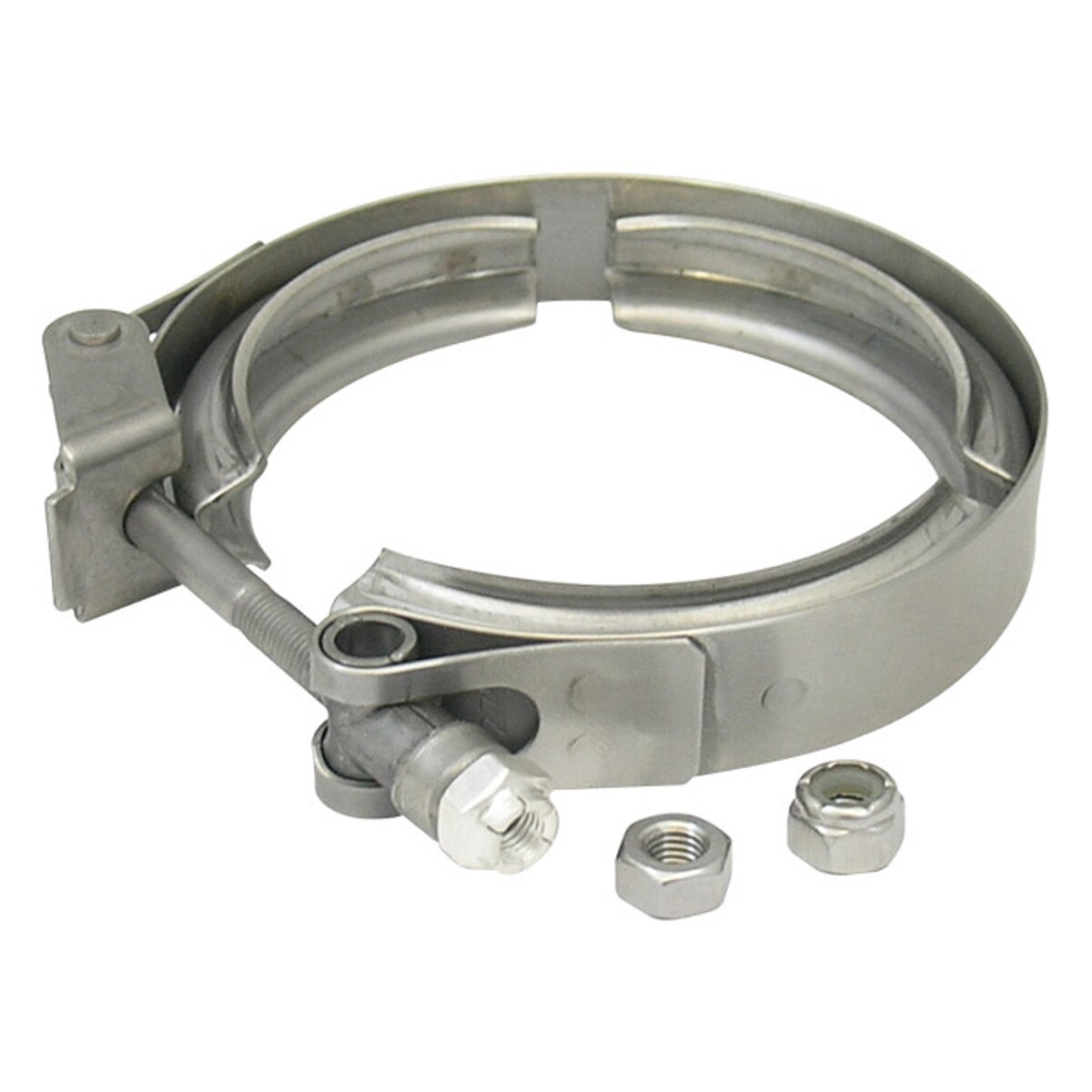

Verocious Stainless Steel V-Band Clamp Kit Contents:
- (1) Quick Release V-Band Clamp, 300 Series Stainless Steel(1) Stainless Steel Quick Release Clamp w/ Hardware
- (1) T-Bolt - High Tensile 420 Stainless Steel
- (1) Mock-Up Nut - 304 Stainless Steel nut body with no interference
- (1) Intake Nut - 304 Stainless Steel nut body with nylon insert mechanical interference
- (1) Exhaust Nut - Coated alloy steel nut body with mechanical interference (no polymer insert)
Clamp Hardware Included:
Verocious V-Band Clamp Sizing | ||||||
| VMS Part # | SKU # | Tubing OD | A | B | FLG OD | LIP OD |
|---|---|---|---|---|---|---|
| VMSVBC-150 | 100190 | 1.5" (38.1mm) | 0.85" (21.6mm) | 0.79" (20.1mm) | 2.18" (55.4mm) | 1.69" (42.9mm) |
| VMSVBC-175 | 100191 | 1.75" (44.5mm) | 0.85" (21.6mm) | 0.79" (20.1mm) | 2.45" (62.2mm) | 1.94" (49.3mm) |
| VMSVBC-200 | 100192 | 2" (50.8mm) | 0.85" (21.6mm) | 0.79" (20.1mm) | 2.74" (69.6mm) | 2.26" (57.4mm) |
| VMSVBC-225 | 100193 | 2.25" (57.2mm) | 0.85" (21.6mm) | 0.79" (20.1mm) | 2.99" (76mm) | 2.43" (61.7mm) |
| VMSVBC-250 | 100195 | 2.5" (63.5mm) | 0.85" (21.6mm) | 0.79" (20.1mm) | 3.24" (82.3mm) | 2.67" (67.8mm) |
| VMSVBC-300 | 100197 | 3" (76.2mm) | 0.85" (21.6mm) | 0.79" (20.1mm) | 3.74" (95mm) | 3.17" (80.5mm) |
| VMSVBC-350 | 100198 | 3.5" (88.9mm) | 0.85" (21.6mm) | 0.79" (20.1mm) | 4.24" (107.7mm) | 3.68" (93.5mm) |
| VMSVBC-400 | 100199 | 4" (101.6mm) | 0.85" (21.6mm) | 0.79" (20.1mm) | 4.74" (120.4mm) | 4.18" (106.2mm) |
| VMSVBC-450 | 100200 | 4.5" (114.3mm) | 0.85" (21.6mm) | 0.79" (20.1mm) | 5.24" (133.1mm) | 4.67" (118.6mm) |
| VMSVBC-500 | 100201 | 5" (127mm) | 0.85" (21.6mm) | 0.79" (20.1mm) | 5.74" (145.8mm) | 5.18" (131.6mm) |
