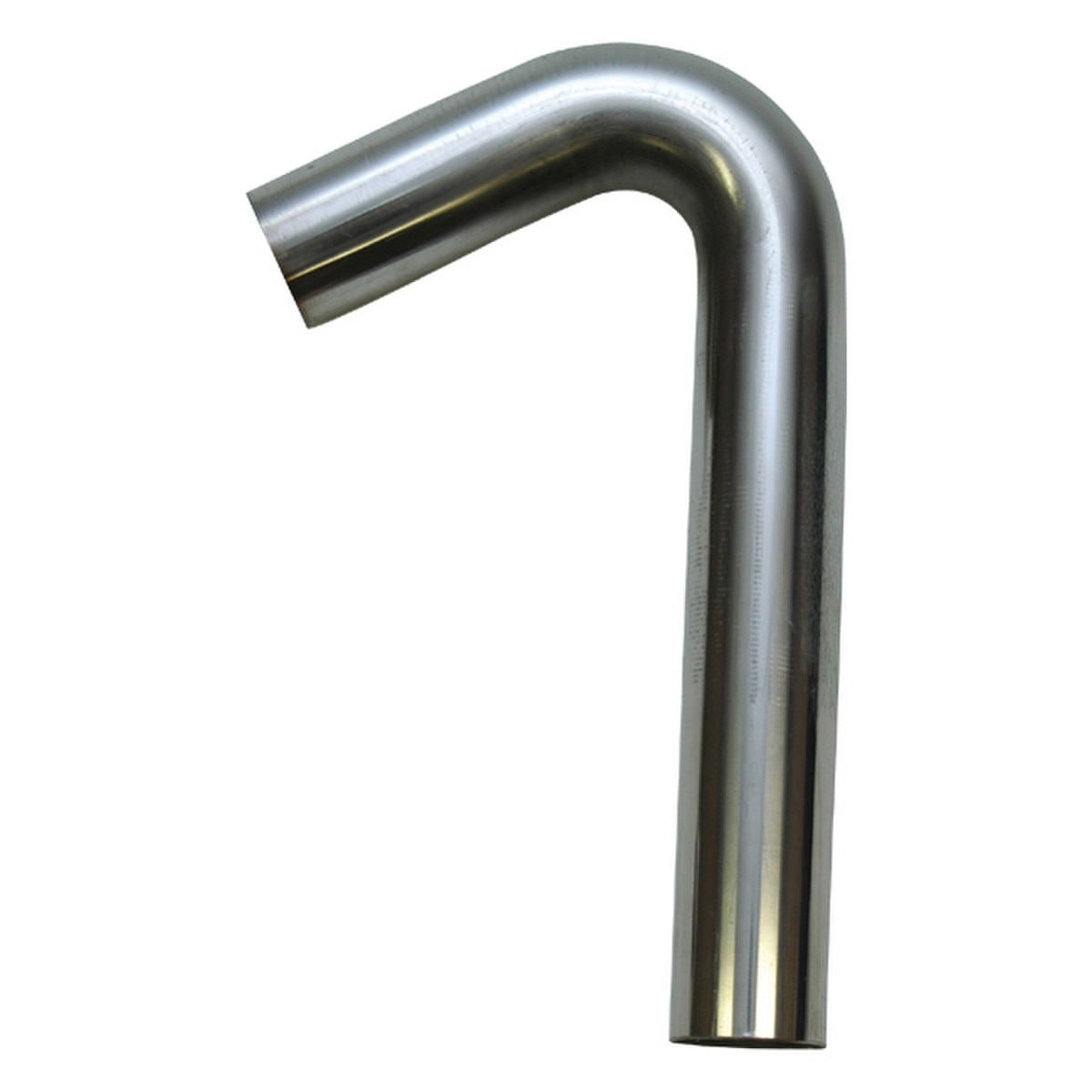

Vibrant 120 Degree Mandrel Bends, 304 Stainless Steel
Vibrant 120 degree mandrel bends are made from 304 Stainless Steel Tubing. Use these mandrel bends for fabricating your custom high performance intake and exhaust systems. These high quality Stainless Steel mandrel bends are smooth and true throughout.
 | |||||
| VMS Part # | MFG Part # | Tube OD | Leg 1 (A) | Leg 2 (B) | Bend Radius (R) |
|---|---|---|---|---|---|
| VIB1200416-125275-4X12 | 13000 | 1.250" (31.8mm) | 4.00" (101.6mm) | 12.00" (304.8mm) | 2.750" (69.9mm) |
| VIB1200416-150150-4X12 | 13002 | 1.500" (38.1mm) | 4.00" (101.6mm) | 12.00" (304.8mm) | 1.500" (38.1mm) |
| VIB1200416-150200-4X12 | 18122 | 1.500" (38.1mm) | 4.00" (101.6mm) | 12.00" (304.8mm) | 2.000" (50.8mm) |
| VIB1200416-150300-4X12 | 18123 | 1.500" (38.1mm) | 4.00" (101.6mm) | 12.00" (304.8mm) | 3.000" (76.2mm) |
| VIB1200416-150400-4X12 | 18124 | 1.500" (38.1mm) | 4.00" (101.6mm) | 12.00" (304.8mm) | 4.000" (101.6mm) |
| VIB1200416-150600-4X12 | 18126 | 1.500" (38.1mm) | 4.00" (101.6mm) | 12.00" (304.8mm) | 6.000" (152.4mm) |
| VIB1200416-163200-4X12 | 18222 | 1.625" (41.3mm) | 4.00" (101.6mm) | 12.00" (304.8mm) | 2.000" (50.8mm) |
| VIB1200416-163400-4X12 | 18224 | 1.625" (41.3mm) | 4.00" (101.6mm) | 12.00" (304.8mm) | 4.000" (101.6mm) |
| VIB1200416-163600-4X12 | 18226 | 1.625" (41.3mm) | 4.00" (101.6mm) | 12.00" (304.8mm) | 6.000" (152.4mm) |
| VIB1200416-175175-6X12 | 13004 | 1.750" (44.5mm) | 6.00" (152.4mm) | 12.00" (304.8mm) | 1.750" (44.5mm) |
| VIB1200416-175200-4X12 | 18322 | 1.750" (44.5mm) | 4.00" (101.6mm) | 12.00" (304.8mm) | 2.000" (50.8mm) |
| VIB1200416-175350-4X12 | 18323 | 1.750" (44.5mm) | 4.00" (101.6mm) | 12.00" (304.8mm) | 3.500" (88.9mm) |
| VIB1200416-175400-4X12 | 18324 | 1.750" (44.5mm) | 4.00" (101.6mm) | 12.00" (304.8mm) | 4.000" (101.6mm) |
| VIB1200416-175600-4X12 | 18326 | 1.750" (44.5mm) | 4.00" (101.6mm) | 12.00" (304.8mm) | 6.000" (152.4mm) |
| VIB1200416-188200-4X12 | 13005 | 1.875" (47.6mm) | 4.00" (101.6mm) | 12.00" (304.8mm) | 2.000" (50.8mm) |
| VIB1200416-188400-4X12 | 18624 | 1.875" (47.6mm) | 4.00" (101.6mm) | 12.00" (304.8mm) | 4.000" (101.6mm) |
| VIB1200416-188600-4X12 | 18626 | 1.875" (47.6mm) | 4.00" (101.6mm) | 12.00" (304.8mm) | 6.000" (152.4mm) |
| VIB1200416-200200-4X12 | 13006 | 2.000" (50.8mm) | 4.00" (101.6mm) | 12.00" (304.8mm) | 2.000" (50.8mm) |
| VIB1200416-200300-4X12 | 13024 | 2.000" (50.8mm) | 4.00" (101.6mm) | 12.00" (304.8mm) | 3.000" (76.2mm) |
| VIB1200416-200400-4X12 | 18724 | 2.000" (50.8mm) | 4.00" (101.6mm) | 12.00" (304.8mm) | 4.000" (101.6mm) |
| VIB1200416-200500-4X12 | 18725 | 2.000" (50.8mm) | 4.00" (101.6mm) | 12.00" (304.8mm) | 5.000" (127.0mm) |
| VIB1200416-200600-4X12 | 18726 | 2.000" (50.8mm) | 4.00" (101.6mm) | 12.00" (304.8mm) | 6.000" (152.4mm) |
| VIB1200416-238350-5X12 | 13009 | 2.375" (60.3mm) | 5.00" (127.0mm) | 12.00" (304.8mm) | 3.500" (88.9mm) |
| VIB1200416-250350-5X12 | 13010 | 2.500" (63.5mm) | 5.00" (127.0mm) | 12.00" (304.8mm) | 3.500" (88.9mm) |
| VIB1200416-300300-7x12 | 13013 | 3.000" (76.2mm) | 7.00" (177.8mm) | 12.00" (304.8mm) | 3.000" (76.2mm) |
| VIB1200416-300500-5X12 | 13012 | 3.000" (76.2mm) | 5.00" (127.0mm) | 12.00" (304.8mm) | 5.000" (127.0mm) |
| VIB1200416-350350-6X6 | 13014 | 3.500" (88.9mm) | 6.00" (152.4mm) | 6.00" (152.4mm) | 3.500" (88.9mm) |
| VIB1200416-400400-6X6 | 13016 | 4.000" (101.6mm) | 6.00" (152.4mm) | 6.00" (152.4mm) | 4.000" (101.6mm) |
