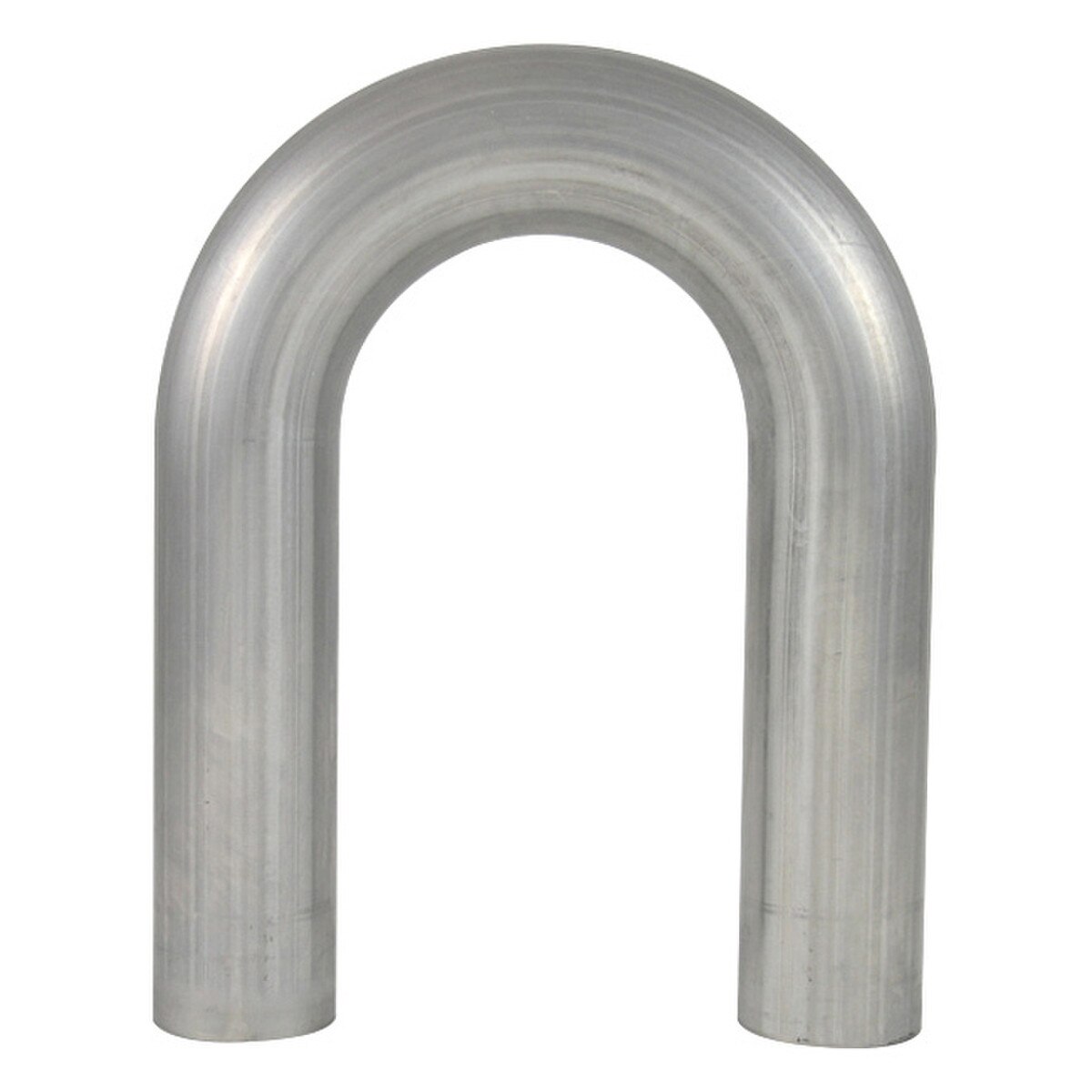

Vibrant 180 Degree Mandrel Bends, 304 Stainless Steel
Vibrant 180 degree mandrel bends are made from 304 Stainless Steel Tubing. Use these mandrel U bends for fabricating your custom high performance intake and exhaust systems. These high quality Stainless Steel mandrel bends are smooth and true throughout.
 | ||||
| VMS Part # | MFG Part # | Tube OD | Legs (A) | Bend Radius (R) |
|---|---|---|---|---|
| VIB1800416-100200-4X4 | 26120 | 1.000" (25.4mm) | 4.00" (101.6mm) | 2.000" (50.8mm) |
| VIB1800416-125200-4X4 | 2617 | 1.250" (31.8mm) | 4.00" (101.6mm) | 2.000" (50.8mm) |
| VIB1800416-125275-4X4 | 2618 | 1.250" (31.8mm) | 4.00" (101.6mm) | 2.750" (69.9mm) |
| VIB1800416-138238-4X4 | 2619 | 1.375" (34.9mm) | 4.00" (101.6mm) | 2.375" (60.3mm) |
| VIB1800416-150150-4X4 | 2620 | 1.500" (38.1mm) | 4.00" (101.6mm) | 1.500" (38.1mm) |
| VIB1800416-150200-4X4 | 18182 | 1.500" (38.1mm) | 4.00" (101.6mm) | 2.000" (50.8mm) |
| VIB1800416-150238-4X4 | 2694 | 1.500" (38.1mm) | 4.00" (101.6mm) | 2.375" (60.3mm) |
| VIB1800416-150300-4X4 | 18183 | 1.500" (38.1mm) | 4.00" (101.6mm) | 3.000" (76.2mm) |
| VIB1800416-150400-4X4 | 18184 | 1.500" (38.1mm) | 4.00" (101.6mm) | 4.000" (101.6mm) |
| VIB1800416-150600-4X4 | 18186 | 1.500" (38.1mm) | 4.00" (101.6mm) | 6.000" (152.4mm) |
| VIB1800416-163163-4X4 | 2621 | 1.625" (41.3mm) | 4.00" (101.6mm) | 1.625" (41.3mm) |
| VIB1800416-163200-4X4 | 18282 | 1.625" (41.3mm) | 4.00" (101.6mm) | 2.000" (50.8mm) |
| VIB1800416-163400-4X4 | 18284 | 1.625" (41.3mm) | 4.00" (101.6mm) | 4.000" (101.6mm) |
| VIB1800416-163600-4X4 | 18286 | 1.625" (41.3mm) | 4.00" (101.6mm) | 6.000" (152.4mm) |
| VIB1800416-175175-5X5 | 2622 | 1.750" (44.5mm) | 5.00" (127.0mm) | 1.750" (44.5mm) |
| VIB1800416-175200-4X4 | 18382 | 1.750" (44.5mm) | 4.00" (101.6mm) | 2.000" (50.8mm) |
| VIB1800416-175263-4X4 | 2696 | 1.750" (44.5mm) | 4.00" (101.6mm) | 2.625" (66.7mm) |
| VIB1800416-175350-4X4 | 18383 | 1.750" (44.5mm) | 4.00" (101.6mm) | 3.500" (88.9mm) |
| VIB1800416-175400-4X4 | 18384 | 1.750" (44.5mm) | 4.00" (101.6mm) | 4.000" (101.6mm) |
| VIB1800416-175600-4X4 | 18386 | 1.750" (44.5mm) | 4.00" (101.6mm) | 6.000" (152.4mm) |
| VIB1800416-188200-6X6 | 2623 | 1.875" (47.6mm) | 6.00" (152.4mm) | 2.000" (50.8mm) |
| VIB1800416-188300-5X5 | 2697 | 1.875" (47.6mm) | 5.00" (127.0mm) | 3.000" (76.2mm) |
| VIB1800416-188400-4X4 | 18684 | 1.875" (47.6mm) | 4.00" (101.6mm) | 4.000" (101.6mm) |
| VIB1800416-188600-4X4 | 18686 | 1.875" (47.6mm) | 4.00" (101.6mm) | 6.000" (152.4mm) |
| VIB1800416-200200-6X6 | 2624 | 2.000" (50.8mm) | 6.00" (152.4mm) | 2.000" (50.8mm) |
| VIB1800416-200250-5X5 | 2698 | 2.000" (50.8mm) | 5.00" (127.0mm) | 2.500" (63.5mm) |
| VIB1800416-200300-5X5 | 26230 | 2.000" (50.8mm) | 5.00" (127.0mm) | 3.000" (76.2mm) |
| VIB1800416-200400-5X5 | 26240 | 2.000" (50.8mm) | 5.00" (127.0mm) | 4.000" (101.6mm) |
| VIB1800416-200500-5X5 | 18785 | 2.000" (50.8mm) | 5.00" (127.0mm) | 5.000" (127.0mm) |
| VIB1800416-200600-5X5 | 18786 | 2.000" (50.8mm) | 5.00" (127.0mm) | 6.000" (152.4mm) |
| VIB1800416-213313-5X5 | 2625 | 2.125" (54.0mm) | 5.00" (127.0mm) | 3.125" (79.4mm) |
| VIB1800416-225338-5X5 | 2626 | 2.250" (57.2mm) | 5.00" (127.0mm) | 3.375" (85.7mm) |
| VIB1800416-238350-6X6 | 2627 | 2.375" (60.3mm) | 6.00" (152.4mm) | 3.500" (88.9mm) |
| VIB1800416-250350-6X6 | 2628 | 2.500" (63.5mm) | 6.00" (152.4mm) | 3.500" (88.9mm) |
| VIB1800416-250250-4.5X4.5 | 2684 | 2.500" (63.5mm) | 4.50" (114.3mm) | 2.500" (63.5mm) |
| VIB1800416-275413-6X6 | 2629 | 2.750" (69.9mm) | 6.00" (152.4mm) | 4.125" (104.8mm) |
| VIB1800416-300300-7X7 | 26330 | 3.000" (76.2mm) | 7.00" (177.8mm) | 3.000" (76.2mm) |
| VIB1800416-300500-6X6 | 2656 | 3.000" (76.2mm) | 6.00" (152.4mm) | 5.000" (127.0mm) |
| VIB1800416-350550-6X6 | 2657 | 3.500" (88.9mm) | 6.00" (152.4mm) | 5.500" (139.7mm) |
| VIB1800416-400600-8X8 | 2658 | 4.000" (101.6mm) | 8.00" (203.2mm) | 6.000" (152.4mm) |
| VIB1800416-500750-12X12 | 2659 | 5.000" (127.0mm) | 12.00" (304.8mm) | 7.500" (190.5mm) |
