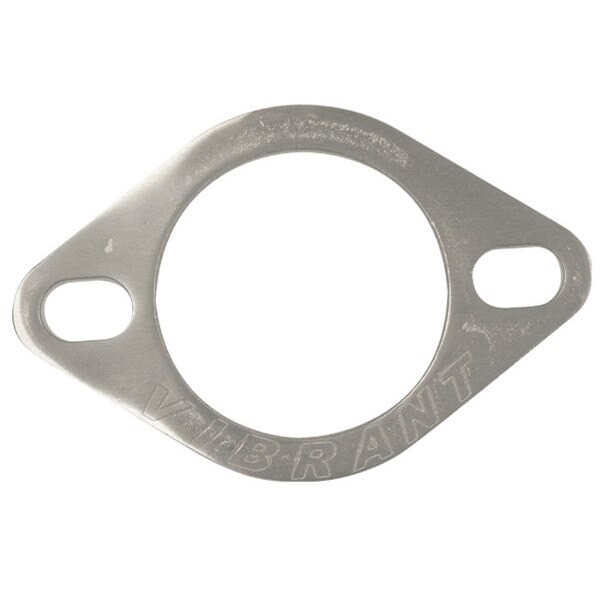

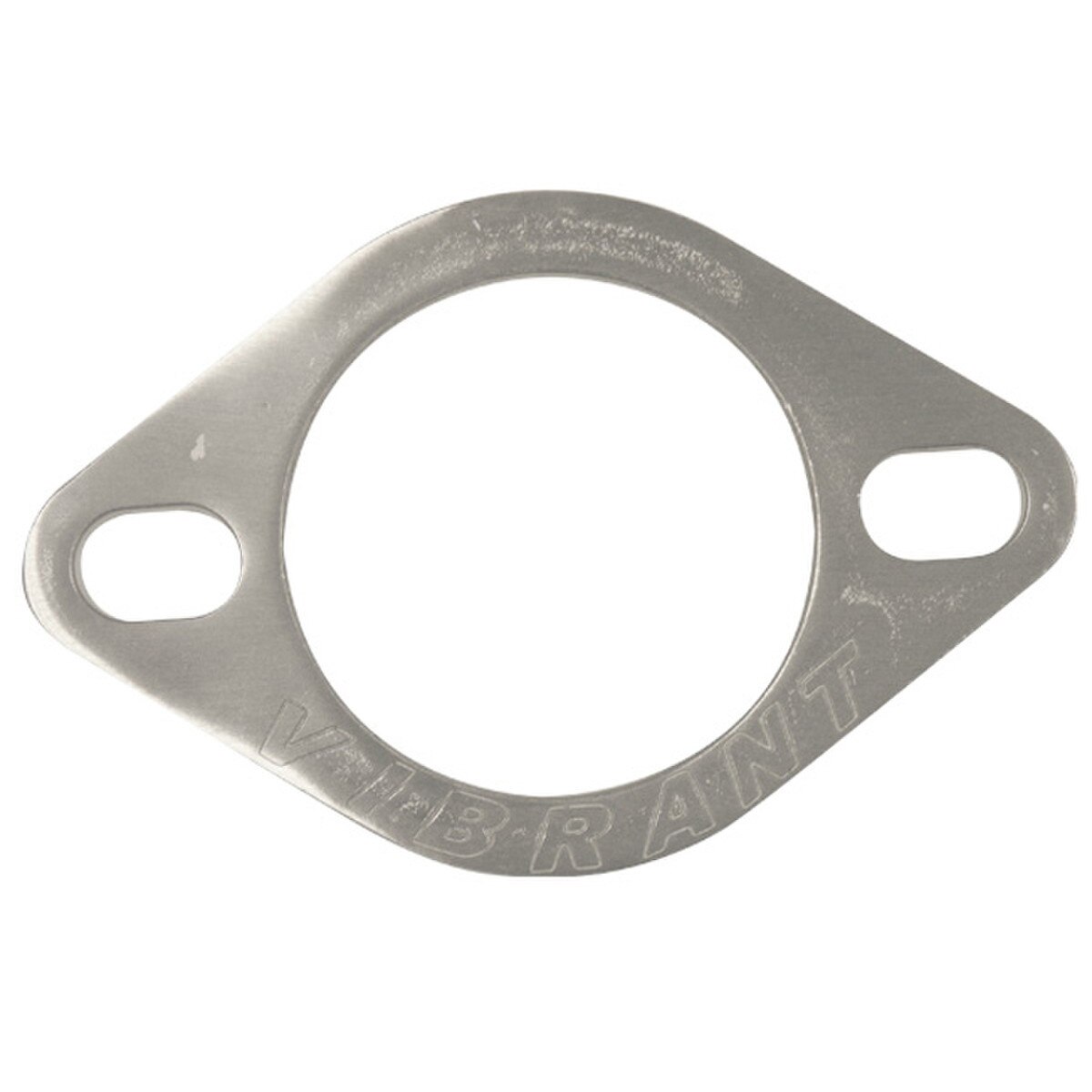

Vibrant 2-Bolt Exhaust Flange - 304 Stainless Steel
Vibrant Performance 2 Bolt Exhaust Flanges are made from 304 stainless steel for tubing sizes from 2" up to 4" OD. These stainless steel exhaust flanges are 3/8" thick to prevent warping. The Vibrant Performance universal weld on exhaust flanges are the perfect way to make the connections on your custom exhaust system. Available individually or in bulk packs of 5.
 | ||||||||
| VMS Part # | MFG Part # | Size (ID) | Qty | Width (W) | Height (H) | Bolt Circle (BC) | Slot Height (SH) | Thickness |
|---|---|---|---|---|---|---|---|---|
| VIBEF2B-200 | 1470S | 2.00" (51mm) | 1 | 4.90" (124mm) | 3.00" (76mm) | 3.50" (89mm) | 0.5" (13mm) | 0.38" (10mm) |
| VIBEF2B-225 | 1471S | 2.25" (57mm) | 1 | 5.25" (133mm) | 3.50" (89mm) | 4.00" (102mm) | 0.5" (13mm) | 0.38" (10mm) |
| VIBEF2B-250 | 1472S | 2.50" (64mm) | 1 | 5.25" (133mm) | 3.50" (89mm) | 4.00" (102mm) | 0.5" (13mm) | 0.38" (10mm) |
| VIBEF2B-275 | 1474S | 2.75" (70mm) | 1 | 5.25" (133mm) | 3.66" (93mm) | 3.89" (99mm) | 0.5" (13mm) | 0.38" (10mm) |
| VIBEF2B-300 | 1473S | 3.00" (76mm) | 1 | 5.05" (128mm) | 3.70" (94mm) | 4.15" (105mm) | 0.5" (13mm) | 0.38" (10mm) |
| VIBEF2B-400 | 1475S | 4.00" (102mm) | 1 | 6.00" (152mm) | 4.40" (112mm) | 5.00" (127mm) | 0.5" (13mm) | 0.38" (10mm) |
| VIBEF2B-200x5 | 1470 | 2.00" (51mm) | 5 | 4.90" (124mm) | 3.00" (76mm) | 3.50" (89mm) | 0.5" (13mm) | 0.38" (10mm) |
| VIBEF2B-225x5 | 1471 | 2.25" (57mm) | 5 | 5.25" (133mm) | 3.50" (89mm) | 4.00" (102mm) | 0.5" (13mm) | 0.38" (10mm) |
| VIBEF2B-250x5 | 1472 | 2.50" (64mm) | 5 | 5.25" (133mm) | 3.50" (89mm) | 4.00" (102mm) | 0.5" (13mm) | 0.38" (10mm) |
| VIBEF2B-275x5 | 1474 | 2.75" (70mm) | 5 | 5.25" (133mm) | 3.66" (93mm) | 3.89" (99mm) | 0.5" (13mm) | 0.38" (10mm) |
| VIBEF2B-300x5 | 1473 | 3.00" (76mm) | 5 | 5.05" (128mm) | 3.70" (94mm) | 4.15" (105mm) | 0.5" (13mm) | 0.38" (10mm) |
| VIBEF2B-400x5 | 1475 | 4.00" (102mm) | 5 | 6.00" (152mm) | 4.40" (112mm) | 5.00" (127mm) | 0.5" (13mm) | 0.38" (10mm) |
