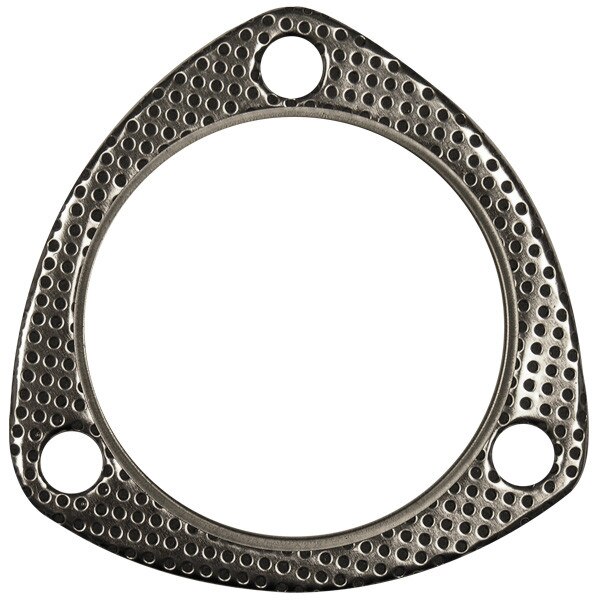

Vibrant 3-Bolt Exhaust Flange Gasket
These 3 bolt exhaust flange gaskets are constructed of composite graphite. Designed to mate same size exhaust flanges, this gasket ensures a tight accurate seal between exhaust components each and every time These gaskets are suitable for high temperature service and are available in sizes ranging from 2.25" through 3.5".
 | |||
| VMS Part # | MFG Part # | Size (ID) | Bolt Circle (BC) |
|---|---|---|---|
| VIBEG3B-225 | 1461 | 2.25" (57mm) | 3.25" (83mm) |
| VIBEG3B-250 | 1462 | 2.50" (64mm) | 3.42" (87mm) |
| VIBEG3B-275 | 1466 | 2.75" (70mm) | 3.42" (87mm) |
| VIBEG3B-300 | 1463 | 3.00" (76mm) | 3.88" (99mm) |
| VIBEG3B-350 | 1464 | 3.50" (89mm) | 4.46" (113mm) |
